Vibrating screen
1. Easy adjustment
2. Reliable operation and easy maintenance
3. Less power consumption
Yantai Jinpeng Mining Machinery CO., LTD
Professional mineral processing design, equipment production,installation and conmissioning institue.
Tel: 0535-15288799786

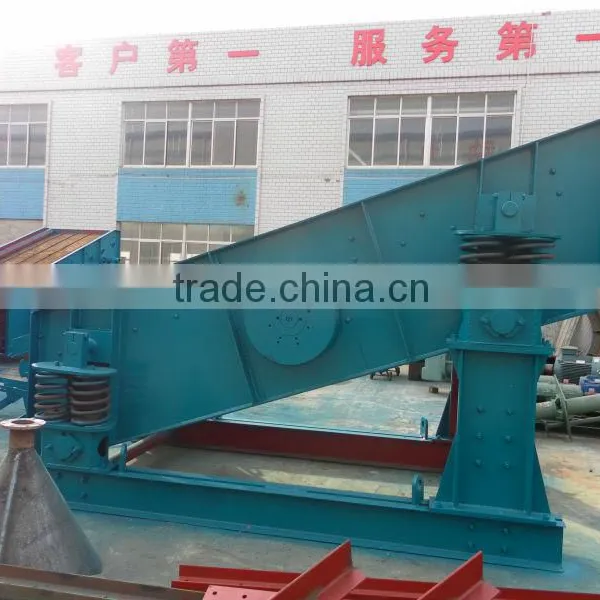

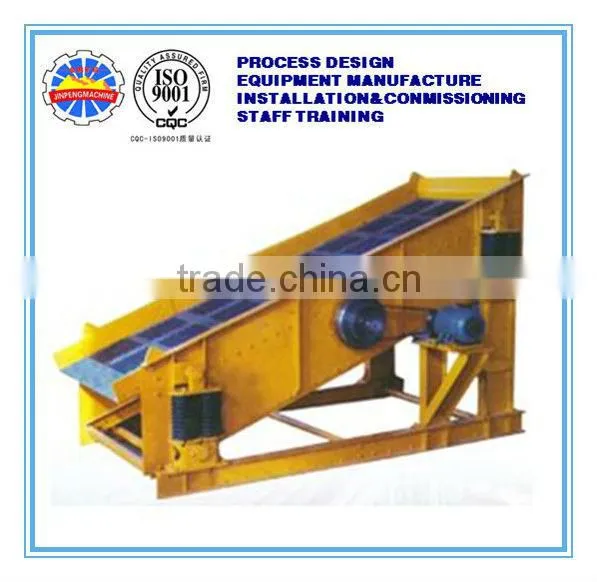

YA/YAH series double-decks round vibrating screen for mining
- Screen Box 2. Support chassis 3. Motor 4. Vibrator 5. Spring-loaded devices
This series vibrating screen with simple structure, and easy to maintenance, reliable to operation, and screen efficiency high. It can desliming, dehydration and removing medium operation for medium-grained material for mining, coal, electricity, construction and chemical materials. And installation of rubber screen is preferred for grading cokes material.
The motor spread to vibrator through the V belt, because the rotation of eccentric shaft causing vibration, making the screen deck do circular tracking movement, thereby make mineral rolling and vibrating on the surface of screen. The large on the surface of the screen, the size of the material less than screen pore will fall under the screen to achieve the purpose of screening.
Name |
Number |
Unit |
Name |
Number |
Unit |
Specification of screen deck |
1200×2400 |
mm |
size of screen pore |
Decide by customer |
mm |
Angle of Screen |
20 |
degree |
maximum size of feed particle |
100 |
mm |
Amplitude |
3.5 |
mm |
Motor |
Y132S-4 |
5.5KW
|
Vibration times |
800 |
||||
No. of screen deck Layer |
1 |
layer |
dimension |
2469×2269×2325 |
mm |
Usually used in the following similiar process of gold,silver,copper, lead zinc, molybdenum and so on.
Provide ore dressing experiment,process design and onsite engineering service.
Welcome to visit our lab, design institute and factory!
