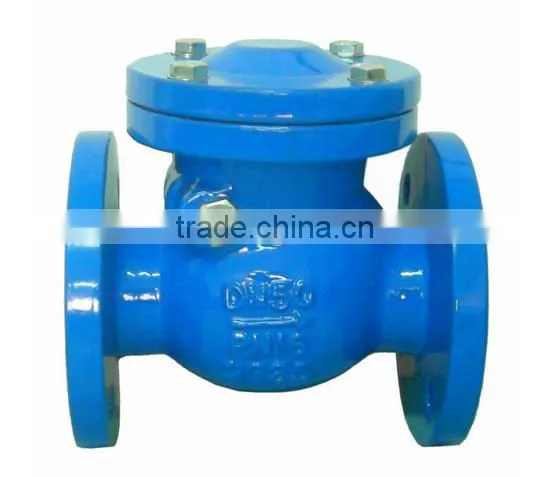

Cast Iron Flanges Ends Swing Check Valve
US$ 28.5 - 385.4
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Check
Pressure:
Low Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cast Iron Swing Check ValveUS$ 28.5 - 385.4MOQ: 1 Piece -
3-PC Spring Loaded Check ValveUS$ 10 - 100MOQ: 30 Pieces
-
Flange Swing Check ValveUS$ 28.5 - 385.4MOQ: 1 Piece
-
Sinking Ball Check Valve Used to Prevent Reverse FlowUS$ 10 - 500MOQ: 50 Sets
-
SWING CHECK VALVES WAFER DESIGN EPDM SealingUS$ 10 - 100MOQ: 10 Pieces
Standard or Nonstandard
Standard
Structure
Check
Pressure
Low Pressure
Power
Hydraulic
Material
Casting
Temperature of Media
Medium Temperature
Media
Water
Port Size
1.5"-14"
Place of Origin
Shandong, China
Model Number
FSCV-021
Brand Name
DS
Application
General
Flange Swing Check Valve Specifications:
1. Size: DN40-350mm
2. Working Pressure: 150 PSI, PN10, PN16
3. Material: Cast iron GG25 or Ductile iron GGG40 / 50
4. Suitable Temperature: -20 °C to 180 °C (Different temperature choose different materials)
5. Suitable Medium: Water, Steam, Oil and natural gas etc.( Different raw material for different medium) Cryogenic,
soft seat insert design available for tight shut off where required.
Flange Swing Check Valve Technical Specifications:
1. Flange end, according to ANSI BS DIN JIS etc.
2. Face to Face: MSS SP-71 DIN3202 F1 , BS4090 /BS5153
3. End Flange: DIN 2543-2545/DIN 2501
4. Inspection and Test: DIN 3230
Swing Check Valve in China
| Main Parts | Material |
| Body | Cast iron GG25 or Ductile iron GGG40/50 |
| Seal | Brass or Bronze |
| Disc seal ring | Rubber or Brass |
| Disc | Ductile iron |
| Hinge pin | SS316 |
| Bonnet | Cast iron or Ductile iron |
Flange Swing Check Valve Features:
1. Bolted bonnet , pressure PN10/16 ; Class ANSI 125/150
2. We also make production according to specification.
3. Zero leakage under rated pressure.
4. Epoxy coating
