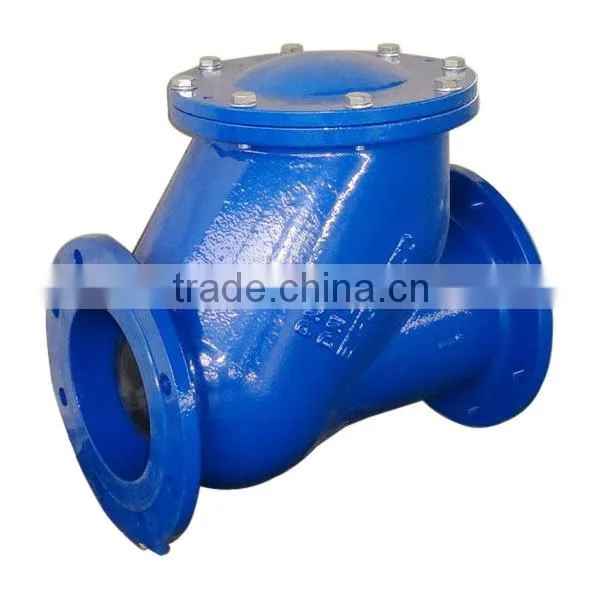

Sinking Ball Check Valve Used to Prevent Reverse Flow
US$ 10 - 500
MOQ: 50 Sets
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Check
Pressure:
Low Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao prot
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SWING CHECK VALVES WAFER DESIGN EPDM SealingUS$ 10 - 100MOQ: 10 Pieces -
Swing Check Valves Wafer Design ANSI 150US$ 10 - 100MOQ: 10 Pieces
-
Flanged End Hammer Diminish Noises Check ValveUS$ 10 - 100MOQ: 10 Pieces
-
Ductile Iron, ANSI Class 150, Single Disc Swing Type Wafer TypeUS$ 1 - 500MOQ: 50 Sets
-
8" Inch Cast Iron Wafer Style Check ValveUS$ 1 - 500MOQ: 50 Sets
Standard or Nonstandard
Standard
Structure
Check
Pressure
Low Pressure
Power
Hydraulic
Material
Casting
Temperature of Media
Normal Temperature
Media
Water
Port Size
1"~16"
Place of Origin
Shandong, China
Model Number
H42X-16Q
Brand Name
Dongsheng
Application
General
BALL CHECK VALVE
Sinking ball check valve used to prevent reverse flow. Suitable for water and wastewater applications up to 60°C
FEATURES
- DN25 to DN80 BSP or BSPT female threaded
- DN40 to DN400 flanged PN10; on request PN16
- 100% free passage
- Bolted inspection cover
- Robust epoxy coating
- Suitable for both horizontal and vertical installatio

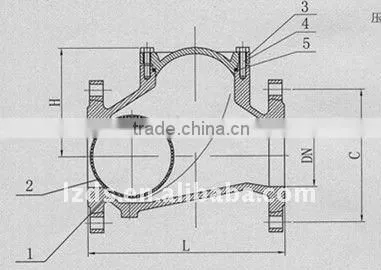

Flange ball type check valve Description
1).Size:DN40~DN400 or Inch 1.5"~16"
2).Flange accord with:DIN2501 PN10/PN16
3).Face-to-face-dimension:DIN3202 F6
4).Working pressure:1.6Mpa
5).Working temperature:EPDM -10°c~+120°c /NBR -10°c~+80°c
6).Minimum open pressure:0.002Mpa
7).Suitable medium: Water,Sewage heavy thick and Viscous liquid
| NO. | Name | Piece | Material | Remark |
| 1 | valve body | 1 | Cast iron or Ductile iron | GG25/GGG40 |
| 2 | valve ball | 1 |
1).Size:DN40~DN400 or Inch 1.5"~16" 2).Working pressure:1.6Mpa
|
aluminium+EPDM or NBR |
| 3 | valve lid | 1 | Ductile iron GGG40 | |
| 4 | Bolt | 2 | Stainless steel | |
| 5 | Rubber ball | 1 | NBR or EPDM |

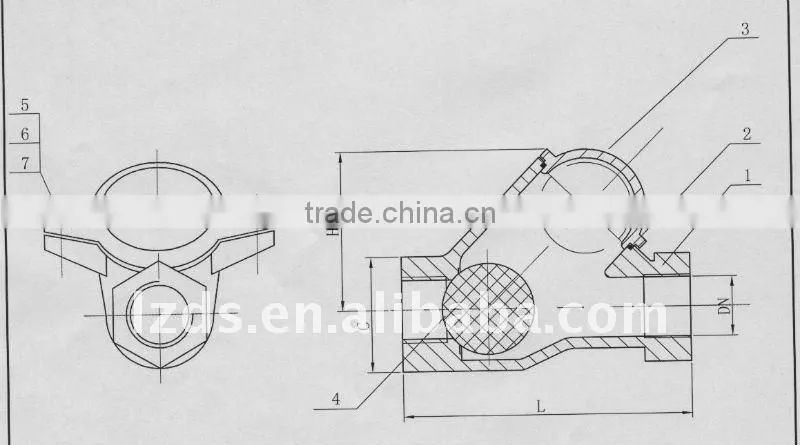

Female thread ball type check valve Description
1) Working temperature:EPDM -10°c~+120°c / NBR -10°c~+80°c
2) Working pressure: 1.0/1.6 Mpa
3) Connection Type: BSP or BSPT [ British Standard Pipe (BSP) ; British Standard Pipe Taper thread (BSPT) ]
4) Testing : DIN3230 , API598
5) Suitable medium:wafer, foodstuff, gas, Oil, acid, alkali and so on.
| NO. | Name | Material |
| 1 | valve body | QT400 HT250 |
| 2 | Type O seal ring | NBR |
| 3 | valve lid | QT400 HT250 |
| 4 | Rubber ball | NBR EPDM |
| 5 | Bolt | A2-70 |
| 6 | Flat gasket | A2-70 |
| 7 | Nut | A2-70 |
