Home > Industrial Equipment & Components > Valve > Ball Valve > Carbon Steel Wafer Swing Check Valve

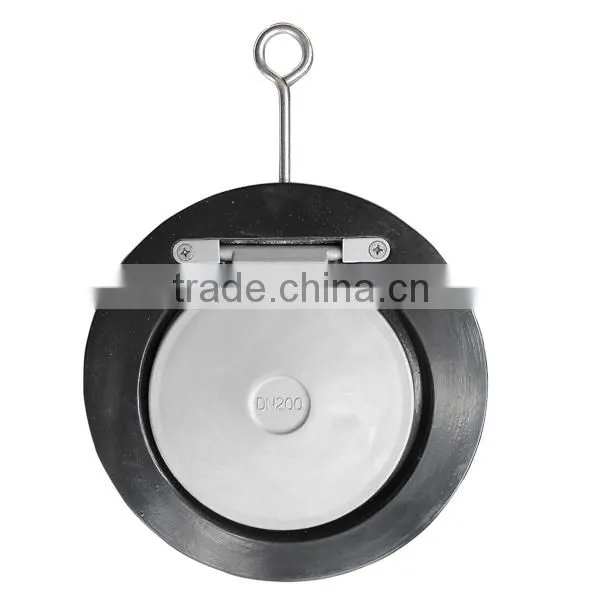

Carbon Steel Wafer Swing Check Valve
US$ 1 - 500
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Check
Pressure:
Low Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wafer Check Valve Swing Type Used for Wastewater TreatmentUS$ 15 - 1,000MOQ: 50 Sets -
Wafer Check Valve Swing Type Used for Chemical RefineriesUS$ 15 - 1,000MOQ: 50 Sets
-
Flanged Silent Check Valve for Water Pump SystemUS$ 10 - 1,000MOQ: 50 Pieces
-
Booster Pump Systems WAFER CHECK VALVEUS$ 10 - 1,000MOQ: 1 Piece
-
3-PC Spring Vertical Check ValveUS$ 10 - 100MOQ: 30 Pieces
Standard or Nonstandard
Standard
Structure
Check
Pressure
Low Pressure
Power
Hydraulic
Material
Stainless Steel
Temperature of Media
Medium Temperature
Media
Water
Port Size
DN40-DN600
Place of Origin
Shandong, China
Model Number
DS-02
Brand Name
DS
Application
General
THIN WAFER CHECK VALVE PN16
Stainless Steel Body and Disc
Carbon Steel Body and Disc
Working Pressure : 16bar
Working Temperature : -10°c to 150 °c

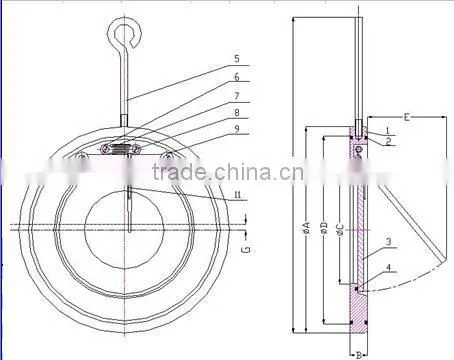

Material Specification
| NO. | Description | Material |
| 1 | Body | SS316 / SS304 / Carbon Steel |
| 2 | Disc | SS316 / SS304 / Carbon Steel |
| 3 | Hook | Carbon Steel, Zinc Plated |
| 4 | Screw | SS316 |
| 5 | O-Ring | Viton |
| 6 | Holder | SS316 |
| DN | A | B | C | D | E | L | Weights | PN |
| mm | mm | mm | mm | mm | mm | kg | ||
| 40 | 94 | 14 | 22 | 80 | 25.0 | 195 | 0.85 | PN 16 |
| 50 | 109 | 14 | 32 | 89 | 33.6 | 208 | 1 | PN 16 |
| 65 | 129 | 14 | 40 | 111 | 46.0 | 230 | 1.5 | PN 16 |
| 80 | 144 | 14 | 54 | 119 | 56.5 | 245 | 1.9 | PN 16 |
| 100 | 164 | 18 | 70 | 147 | 71.4 | 265 | 2.3 | PN 16 |
| 125 | 195 | 18 | 92 | 171 | 87.3 | 297 | 3.6 | PN 16 |
| 150 | 220 | 20 | 112 | 200 | 106.6 | 321 | 5 | PN 16 |
| 200 | 275 | 22 | 154 | 256 | 148.2 | 376 | 10.5 | PN 16 |
| 250 | 330 | 26 | 192 | 302 | 185.2 | 436 | 14 | PN 16 |
| 300 | 380 | 32 | 227 | 352 | 216.3 | 484 | 18.2 | PN 16 |
