Flanged Silent Check Valve for Water Pump System
US$ 10 - 1,000
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Check
Pressure:
Low Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao ShanDong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Booster Pump Systems WAFER CHECK VALVEUS$ 10 - 1,000MOQ: 1 Piece -
3-PC Spring Vertical Check ValveUS$ 10 - 100MOQ: 30 Pieces
-
China Supplier Silent Check ValvesUS$ 10 - 1,000MOQ: 1 Piece
-
Wafer Lift Check ValveUS$ 1 - 1,000MOQ: 50 Pieces
-
Wafer Double Door Swing Check Valve Spring Loaded PN 16/10US$ 10 - 500MOQ: 50 Sets
Standard or Nonstandard
Standard
Structure
Check
Pressure
Low Pressure
Power
Hydraulic
Material
Casting
Temperature of Media
Medium Temperature
Media
Water
Port Size
DN50-300
Place of Origin
Shandong, China
Model Number
DS-H74S
Brand Name
DongSheng
Application
General

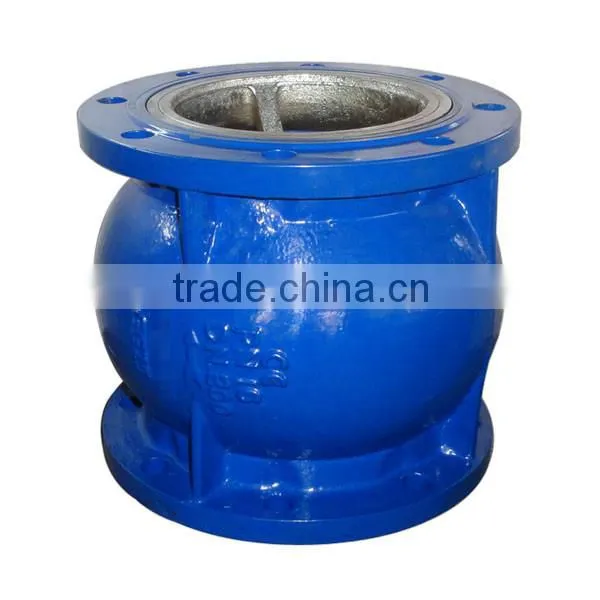

Flanged Silent Check Valve ( Non-Slam Check Valves )
DESCRIPTION:
- Working pressure: 1.0/1.6Mpa
- Working temperature: NBR 0 °c to 80 °c ; EPDM: 10 °c to 120 °c
- Flanged according to EN1092-2 PN10/16
- Testing: DIN3230, API598
- Medium: Fresh Water ; Seawater and all kinds of oil etc.

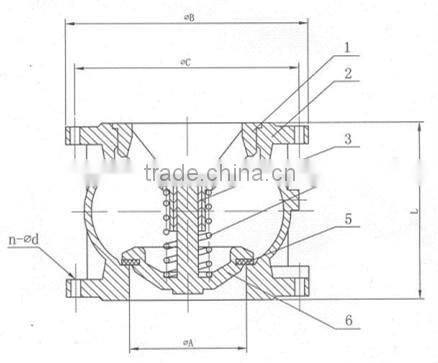

MATERIAL LIST:
| NO. | Part | Meterial |
| 1 | Guide | Ductile Iron GGG40 |
| 2 | Body | Cast Iron GG25 or Ductile Iron GGG40 |
| 3 | Sleeve | PTFE |
| 4 | Spring | Stainless steel |
| 5 | Seat ring | NBR or EPDM |
| 6 | Disc | Ductile Iron GGG40 or Brass |
The packing of products
