2016 High Abrasion Resistance and Convenient Maintenance ore mineral Grinding Ball Mill

Yantai Jinpeng Mining Machinery CO., LTD

Professional mineral processing design, equipment production,installation and conmissioning institue.

Tel: 0086-535-3410108    15288799786

Gold mining high efficiency ball mill sold to more than 30 countries

 Ball mill is widely used in mining, smelting,road,building material and chemical. It is the key equipment for grinding after the crush process.The mill consists of feeding device, driving assembly, rotating assembly,bearing unit,discharging assembly and foundation unit.There are two discharging type: wet grid ball mill and dry grid ball mill.

Structure

Characteristic

1.Bush bearing is replaced by rolling bearing,friction resistance being greatly lowered down,easy to start and energy saving.it's energy is lower 10%-15% than the old one.

2.The capacity is larger :for the outlet disk and the checked liner are adopted,the capacity is higher 20% than the cone ball mill.

3.Easy to construct: for one-fiece frame is used, it's easy for the facilitating and equipment installation.

Technical parameters

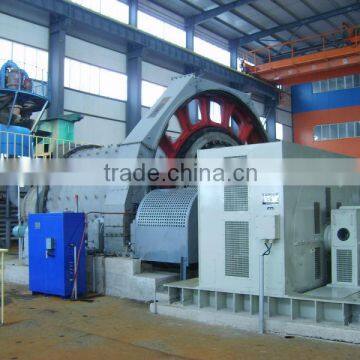

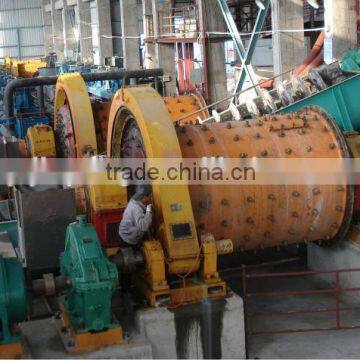

 Work onsite

Customers around the world

Provide ore dressing experiment,process design and onsite engineering service

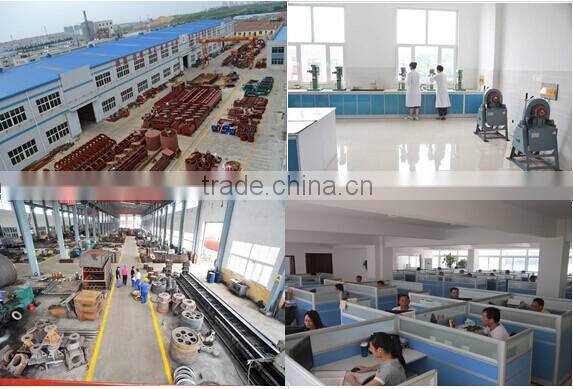

Warmly welcome to visit our lab, design institute and factory!
