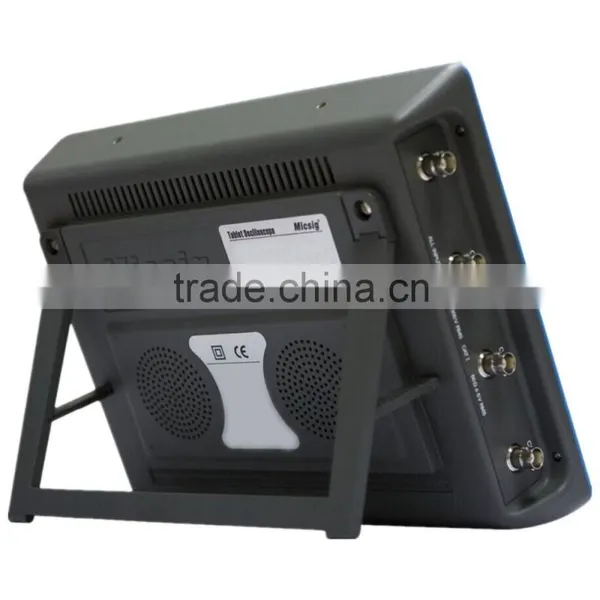

High Quality Micsig TO152 DSO 150MHz 1GS/s Digital Storage Oscilloscope

Name: High Quality Micsig TO152 DSO 150MHz 1GS/s Digital Storage Oscilloscope
Brand: Micsig
SKU: 127204261
Availability: InStock

US$ 629 - 778 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Micsig

Model Number:

TO152

Shenzhen Micsig Instruments Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Micsig

Model Number TO152

Product Description

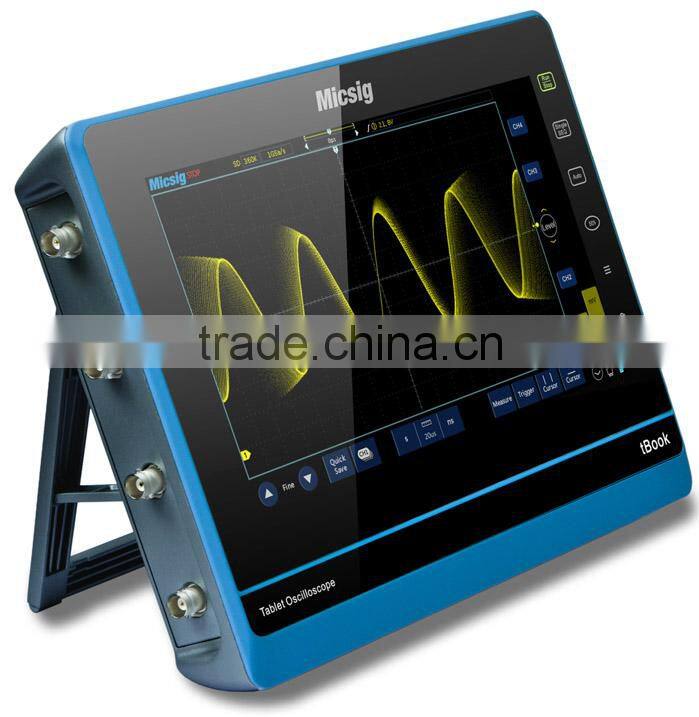

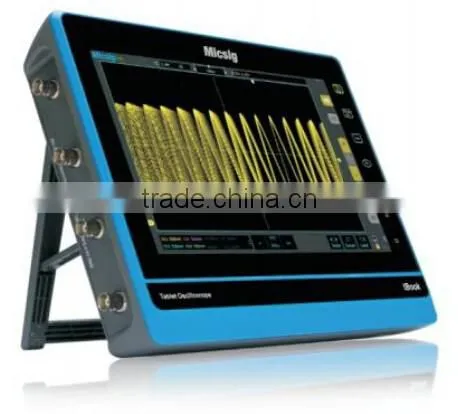

Micsig digital storage tablet oscilloscope TO152 introduction

Micsig tablet oscilloscope is a high-tech innovation invention that breaks the traditional digital storage oscilloscopes in the world.

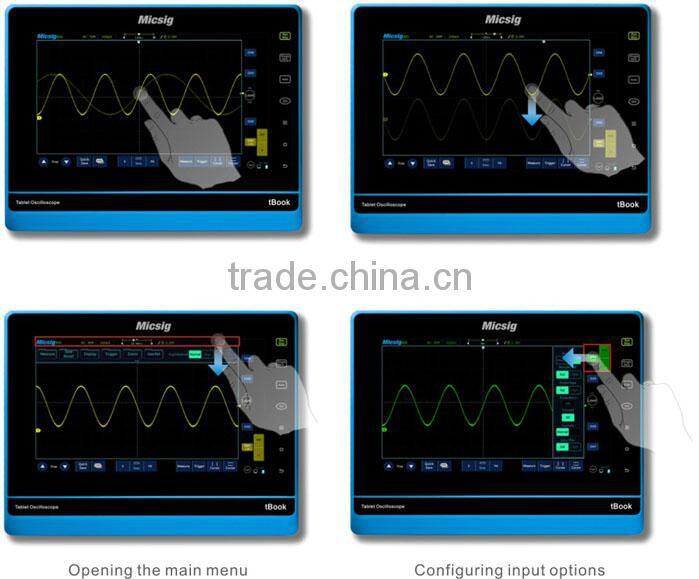

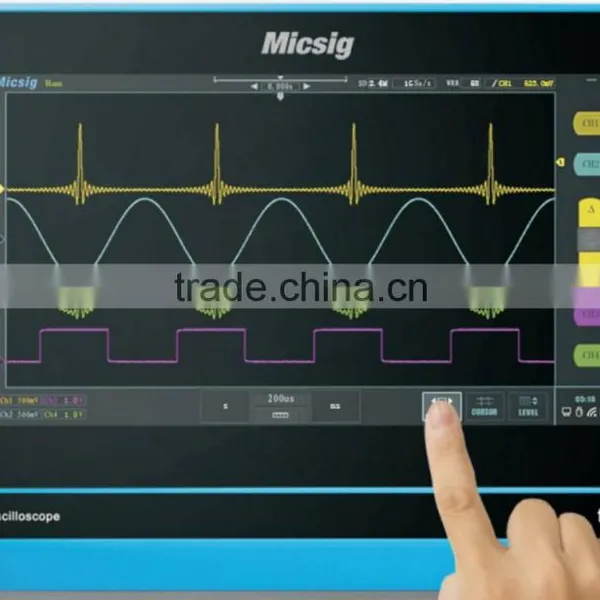

With 10.1" multi-touch TFT LCD screen,you can easily operate and control the waveform within your fingers,and with up to 2GS/s

real time sampling rate,more details of the waveform will be displayed.

Micsig TO152 tablet oscilloscope is 150MHz bandwidth,2 channels,1GS/s real time sampling rate,18Mpts storage depth,

250K wfms/s max capture rate,is ideal for educational reserach,laboratory testing and personal usage.

Micsig digital storage tablet oscilloscope TO152 specification

Bandwidth	150MHz
Rise time	3.5ns
Real time sampling rate	1GS/s
Memory depth	18Mpts
Max capture rate	250,000 wfms/s
Channels	2 channels

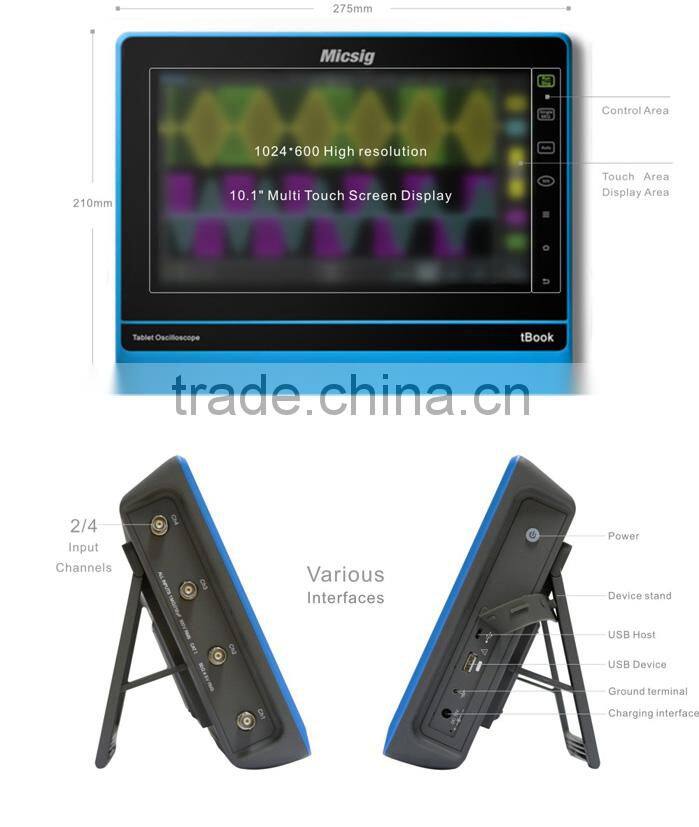

Display screen	10.1" TFT multi-touch LCD,1024x600 pixels,18x10 grids
Operation	Mouse,multi-touch
Timebase range	2ns/div-1s/div
Timebase mode	YT,XY,ROLL,ZOOM
Input impedance	1MΩ±1%,15pF±3pF,50Ω±1.5%
Max input voltage	300V RMS CAT1(1MΩ input),5V(50Ω input)
Vertical resolution	8 bits
Vertical scale	2mV/div-5V/div
Trigger types	Edge,Pulse,Logic,Serial bus trigger and decode for UART/RS232/RS422/RS485,LIN,CAN,SPI,I2C,1553B,429(optional)
Measurements	31 automatic measurements
Math function	(+,-,*,/,FFT)
FFT	Rectangular,Hanmming,Hanning,Blackman-harris
Built-in storage	4GB,support external USB storage device
Waveform storage	Format:csv,wav;Rename:support;Storage media:local or USB storage device
Screenshot	Support
I/O port	USB host,USB device
