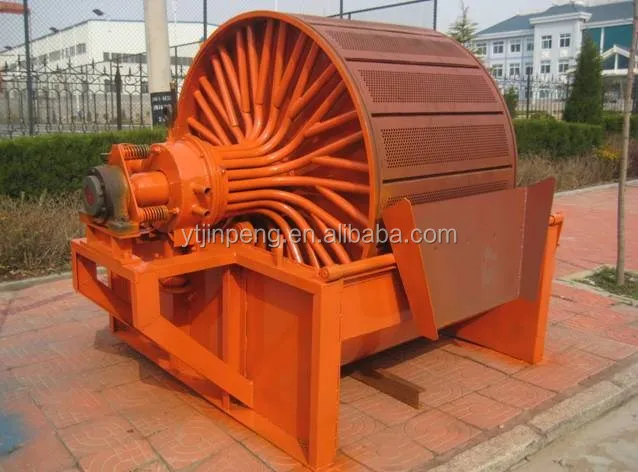

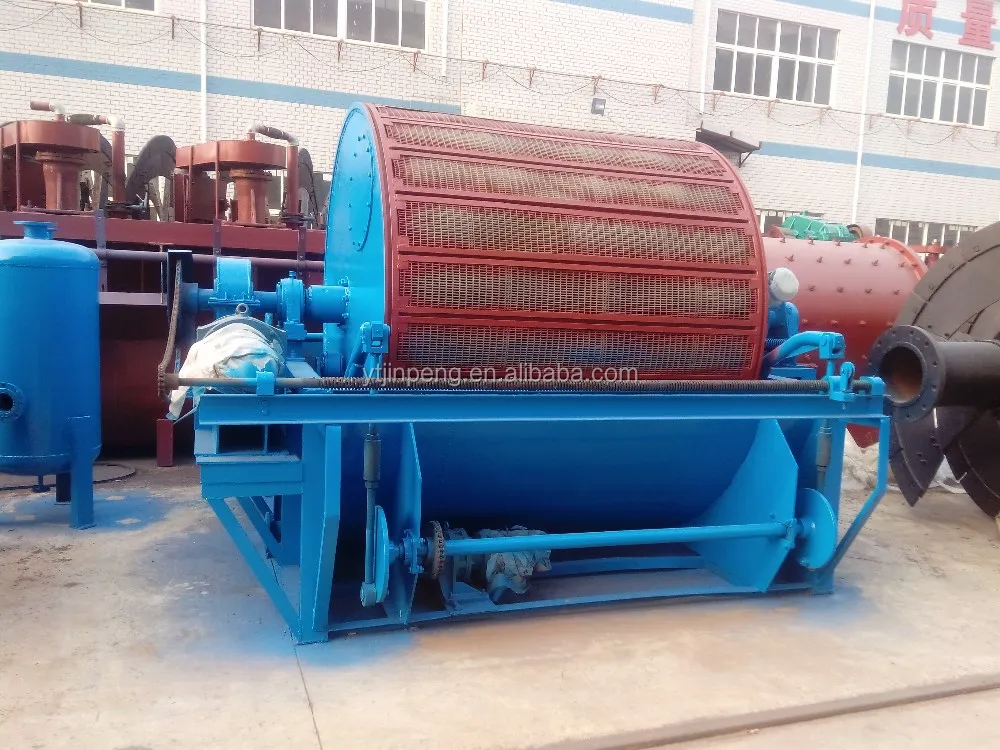

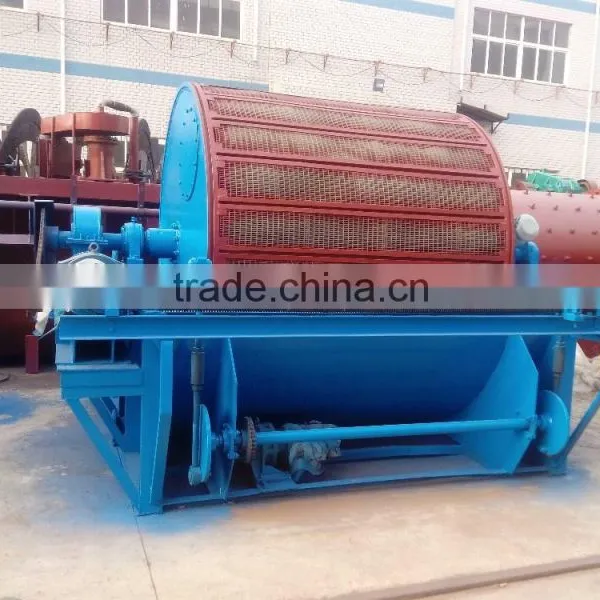

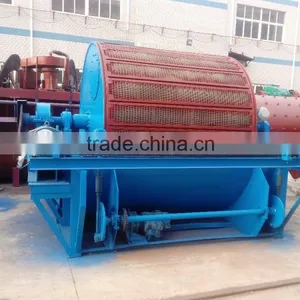

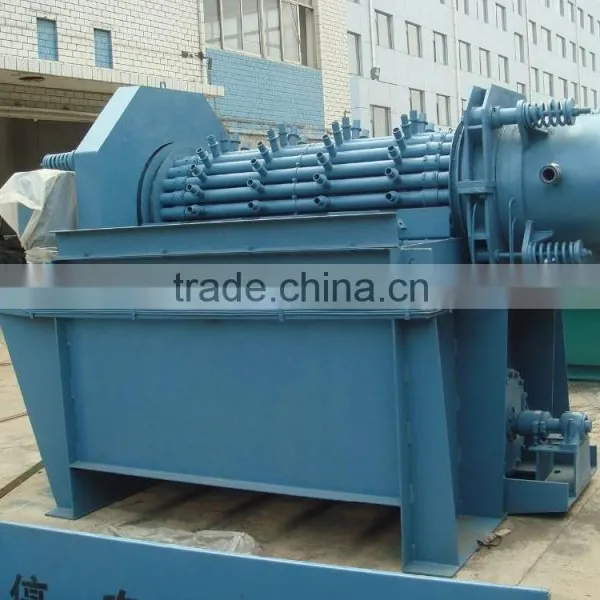

GW-5 Cylinder External Filter From China, Shandong

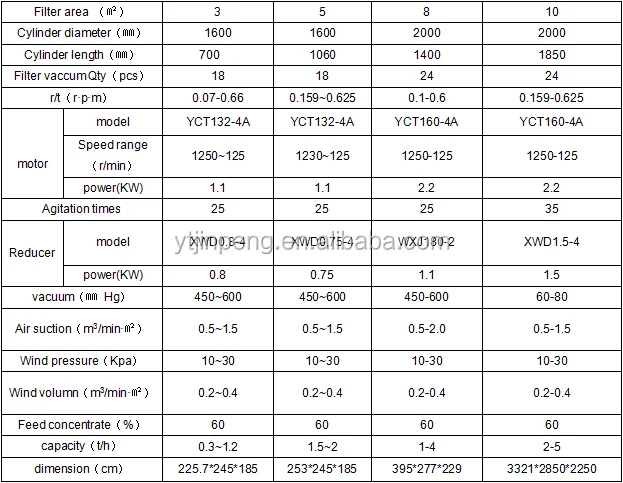

1.Tank body:
The cylinder body is made of steel plate, and along the longitudinal direction divided into several filtering room, each room separated by rope, also with plastic filter board, in the rope trough all equiped with glue stick or nylon cord, cylinder is covered with filter cloth, and fixed by wire. Each filter room all are combined by suction filter tube to the distribution plate, and also connecting the vacuum head.
Filter board is made by polypropylene, can prevent dirt blocking.
2.Vacuum head:
It is the part to control filter pressure of a cylinder, it has two elastic joints and rubber tube, connecting with the vacuum pump system,air blow system, pipelines respectively.
3. Trough:
Mainly for storage pulp,the liquid surface is controlled by overflow.
4.Stir scraper
The stir scraper is to prevent the material settlement. The swing frequency is 25 times per minute, it realizes its function through the motor, chain drive, shaft, eccentric wheel, connecting rod, etc.
5. The body's transmission:
The speed regulation motor, cycloidal planetary gear speed reducer, worm gearbox, (GW-8 is at the end of the gear transmission) to realize stepless speed change.
6. bobbin winder
The cylinder body is covered with filter cloth, wrapped with 3 mm galvanized steel wire on the tube body, in order to prevent the filter cloth convex, tightly wound 3 ~ 5 laps,and the filter cloth can be fixed at the end of the filter room,it can maintain the appropriate pitch to make the filter cloth shake during the airblow, easy for the filter cake falling off.
