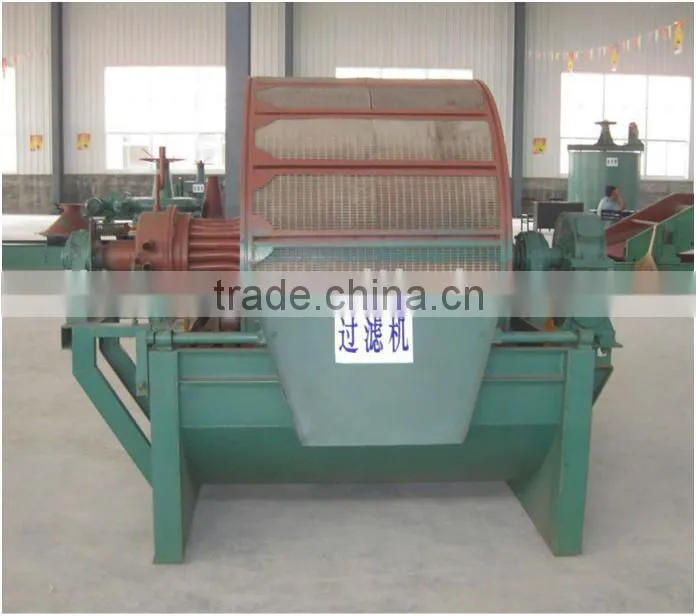

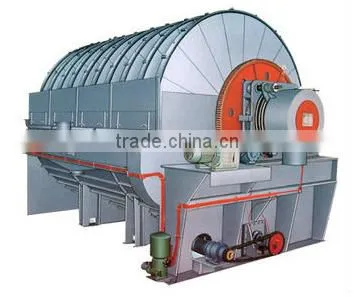

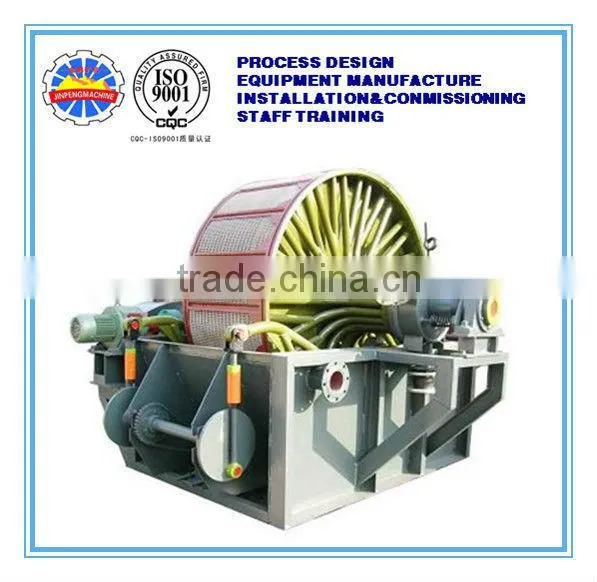

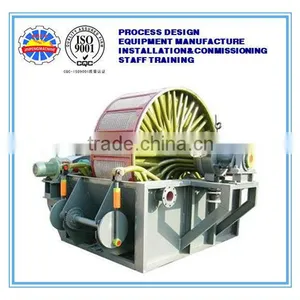

Drum filter of extemal filtration motor drum agitator
This filter is manufactured based on the successful foreign advanced technology, it is characterized by better dehydration, and light weight, lower power consumption etc, so it is an advanced filtering equipment.
1trough,2 body transmission device,3main bearing,4rotary drum,5filter cloth,6filter plate,7vacuum head,8 scraper,9mixing scraper
The filter works under the vacuum environment to cause the pressure difference between the inside and outside, then makes the solid particle adsorption in the surface of the filter cloth, forming filter cake, while the liquid pumped out the filtrate and achieve the solid-liquid separation. Each rotating of the cylinder, can complete filtering, dehydration, intake wind, discharge material and the cloth wash.
Filter area ( m2) |
3 |
5 |
8 |
10 |
|
Cylinder diameter(mm) |
1600 |
1600 |
2000 |
2000 |
|
Cylinder length(mm) |
700 |
1060 |
1400 |
1850 |
|
Filter vaccum Qty(pcs) |
18 |
18 |
24 |
24 |
|
r/t(r·p·m) |
0.07-0.66 |
0.159~0.625 |
0.1-0.6 |
0.159-0.625 |
|
|
motor |
model |
YCT132-4A |
YCT132-4A |
YCT160-4A |
YCT160-4A |
Speed range(r/min) |
1250~125 |
1230~125 |
1250-125 |
1250-125 |
|
power(KW) |
1.1 |
1.1 |
2.2 |
2.2 |
|
Agitation times |
25 |
25 |
25 |
35 |
|
Reducer |
model |
XWD0.8-4 |
XWD0,75-4 |
WXJ180-2 |
XWD1.5-4 |
power(KW) |
0.8 |
0.75 |
1.1 |
1.5 |
|
vacuum(mm Hg) |
450~600 |
450~600 |
450-600 |
60-80 |
|
Air suction(m3/min· m2) |
0.5~1.5 |
0.5~1.5 |
0.5-2.0 |
0.5-1.5 |
|
Wind pressure(Kpa) |
10~30 |
10~30 |
10-30 |
10-30 |
|
Wind volumn(m3/min· m2) |
0.2~0.4 |
0.2~0.4 |
0.2-0.4 |
0.2-0.4 |
|
Feed concentrate(%) |
60 |
60 |
60 |
60 |
|
capacity(t/h) |
0.3~1.2 |
1.5~2 |
1-4 |
2-5 |
|
dimension(cm) |
225.7*245*185 |
253*245*185 |
395*277*229 |
3321*2850*2250 |
|
