Micsig digital storage handheld oscilloscope MS310IT introduction
Micsig handheld oscilloscope is a high-tech innovation invention that has a great advantage in performance.
With 5.7" TFT LCD screen,you can easily operate and control the waveform within your fingers,and you could press the button
or use the scroll wheel to operate,and with up to 1GS/s real time sampling rate for one channel,500MS/s for two channel,more
details of the waveform will be displayed.
Micsig MS310IT digital handheld oscilloscope is 100MHz bandwidth,2 isolated input channels and 1 meter channel,1GS/s real time
sampling rate,240Kpts storage depth,with U disk extendible.
50K wfms/s max capture rate,is ideal for automotive,Laboratray,education,aviation.
Micsig digital storage handheld oscilloscope MS310IT specification
| Bandwidth | 100MHz |
| Operation | Multi-touch,button,scroll wheel |
| Real time sampling rate | 1GS/s for two channel,500MS/s for one channels |
| Memory depth | 240Kpts |
| Max capture rate | 50,000 wfms/s |
| Channels | 2 isolated channels for scope,1 meter channel |
| Display screen | 5.7" TFT multi-touch LCD,640x480 pixels,12x8 grids |
| Meter measurements | 10 types |
| Timebase range | 4ns/div-10s/div |
| Serial bus decode | Not available for this model |
| Battery capacity | 7.4V 6000mAh |
| Isolated channel | Not available for this model |
| Rise time | <3.5ns |
| Vertical scale | 2mV/div-20V/div |
| Trigger types | Edge,Pulse,Logic |
| Measurements | 31 automatic measurements |
| Math function | (+,-,*,/,FFT) |
| FFT | Rectangular,Hanmming,Hanning,Blackman-harris |
| Timebase mode | YT,XY,Roll |
| Persistence | Auto,100ms-10s,or ∞ |
| Coupling mode | AC,DC,Ground |
| I/O port | USB host,USB device |

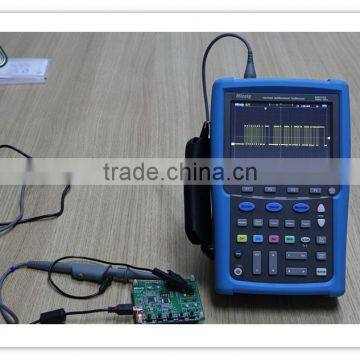

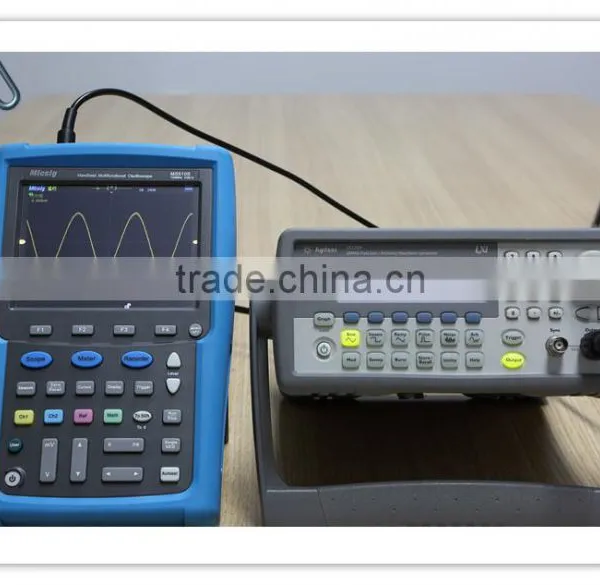

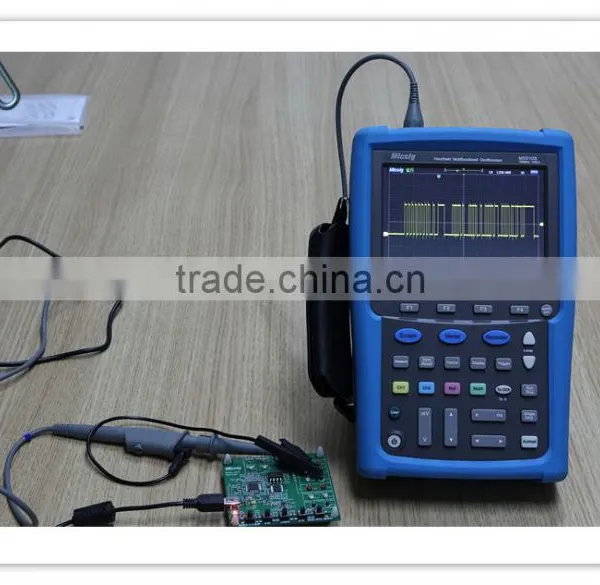

Micsig digital storage handheld oscilloscope MS310IT application

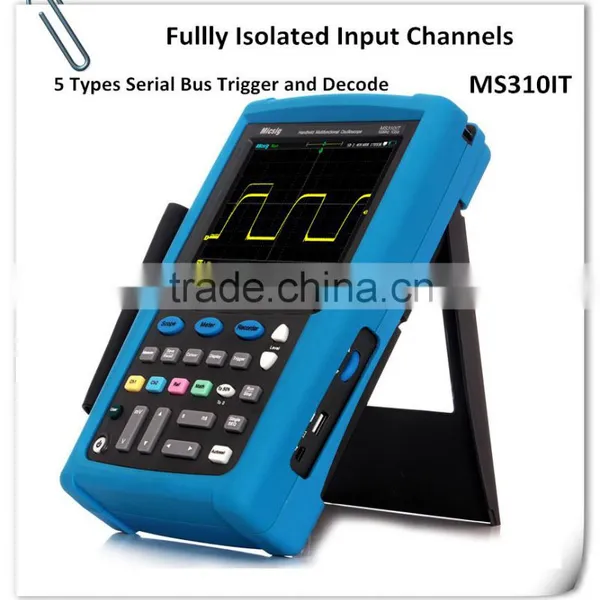

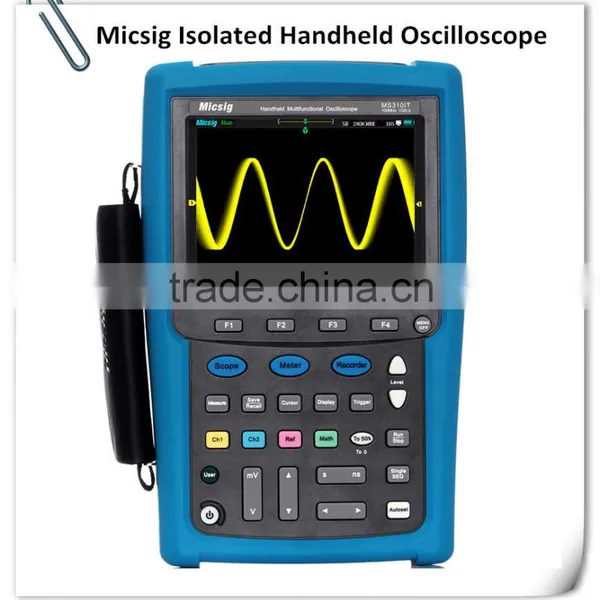

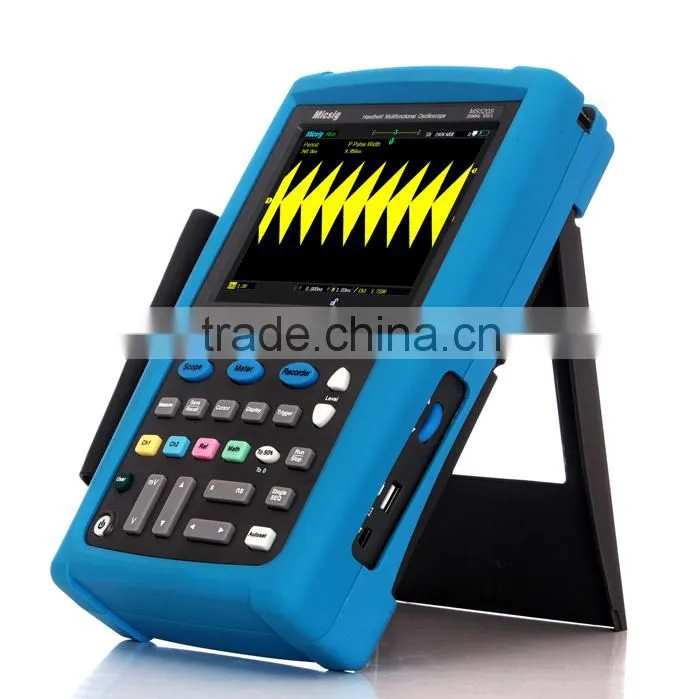

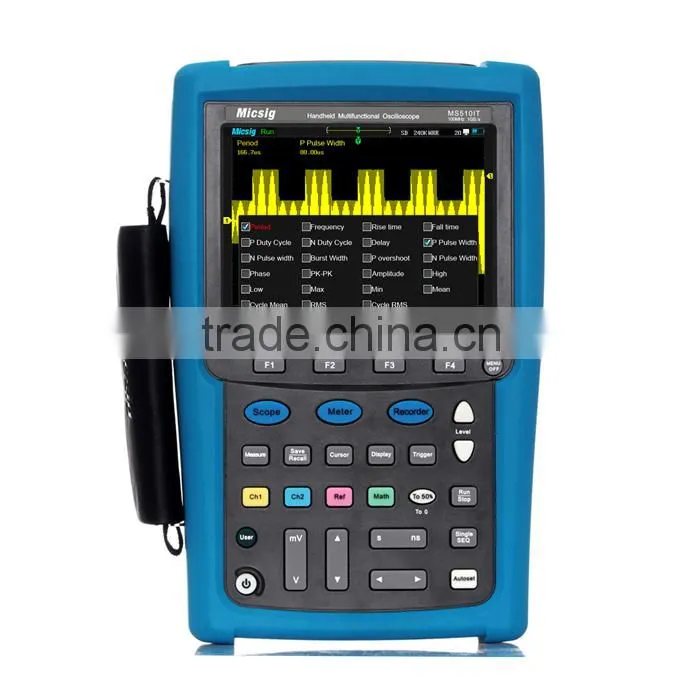

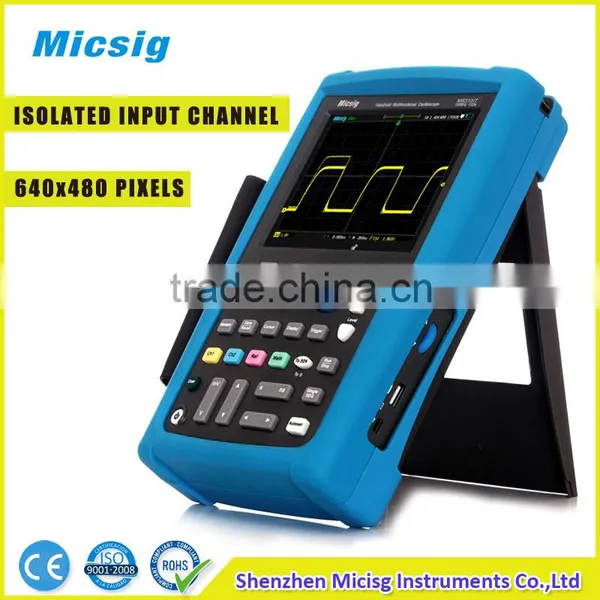

Micsig digital storage handheld oscilloscope MS310IT product showcase
Packed in carton:
Digital storage handheld oscilloscope
Carton dimension: 405x 190x 360 mm
Carton gross weight:3.5KG(with battery)
Standard accessories:
Passive probe:X2
Battery(6000mAh):X1
Banana jack:X2
Micro USB cable:X1
Power adapter:X1
Multimeter table pen line:X1
Documents:X1
Optional accessories:(need to buy separately)
Build-in battery(9,000mAh)
Nylon handbag
Suitcase
High frequency current probe
High voltage differential probe
Shipping:
All the goods will be sent by DHL,FEDEX,UPS,TNT according to customers' requirements,or by sea shipping.
As for the tablet oscilloscope innovator, Micsig has achieved a large number of worldwide patent rights on tablet oscilloscope. We are a professional supplier and manufacturer in field of testing & measurement instrument and solution integration of R&D, manufacturing, marketing and sales.
