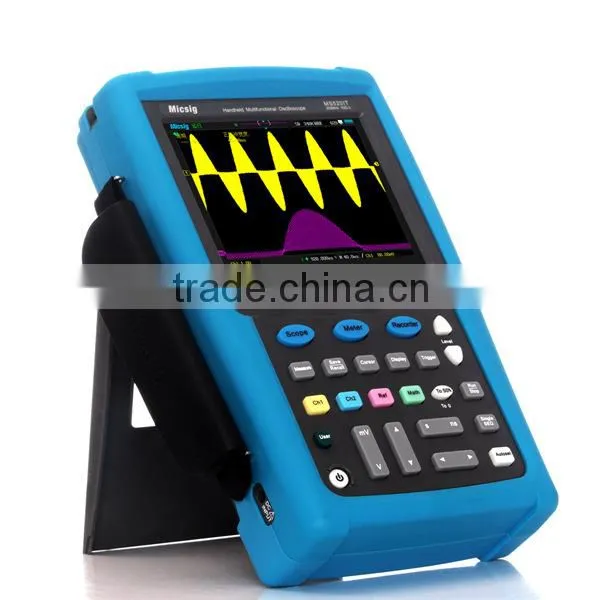

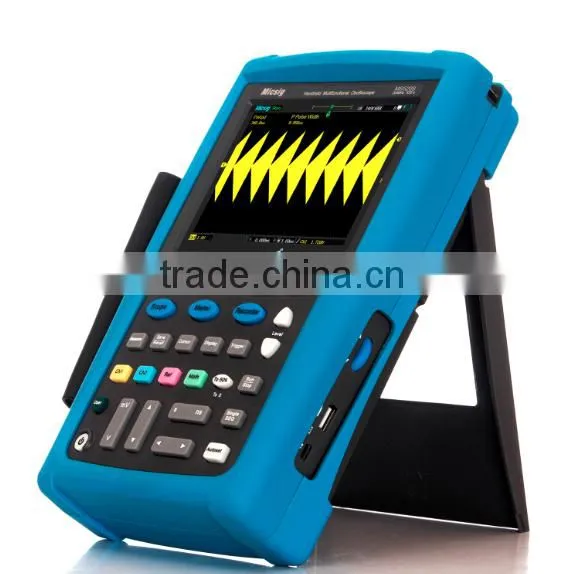

Micsig Handheld MS310IT Isolated Digital Oscilloscope With 100 MHz Capture
US$ 899 - 1,700
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Micsig
Model Number:
MS310IT
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Micsig MS310IT 100MHz Isolated Digital Storage Oscilloscope,2 Channels With DMMUS$ 1,399 - 1,900MOQ: 1 Piece -
Micsig MS320IThandheld Digital Storage Oscilloscope Portable for AutomotiveUS$ 1,299 - 1,900MOQ: 1 Piece
-
Micsig MS320IT 200MHz Handheld Digital Oscilloscope With Isolated ChannelsUS$ 1,599 - 1,619MOQ: 1 Piece
-
Micsig MS310S Digital Handheld Oscilloscope (2Ch,100Mhz)Isolated Channel Usb OscilloscopeUS$ 1,599 - 1,899MOQ: 1 Piece
-
Micsig MS320IT Handheld Oscilloscope ,automotive Oscilloscope,usb OscilloscopeUS$ 1,396 - 1,900MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Micsig
Model Number
MS310IT

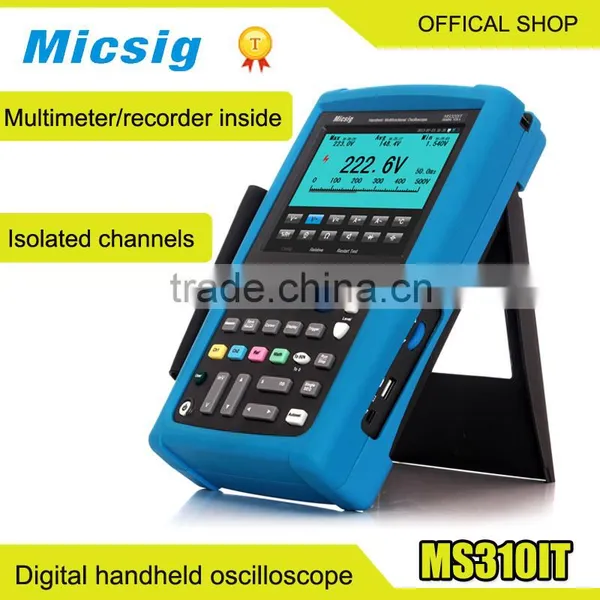

Micsig Handheld MS310IT Isolated Digital Oscilloscope with 100 MHz Capture
First Declaration—We believe that Every extra penny deserves its value.
Compared with other brands oscilloscope, Micsig oscilloscope more focus on detail quality of products & user experience.
We are making more and more videos to show our products, welcome you search our Facebook or Youtube to find more pictures. Or you can visit our website to email us.

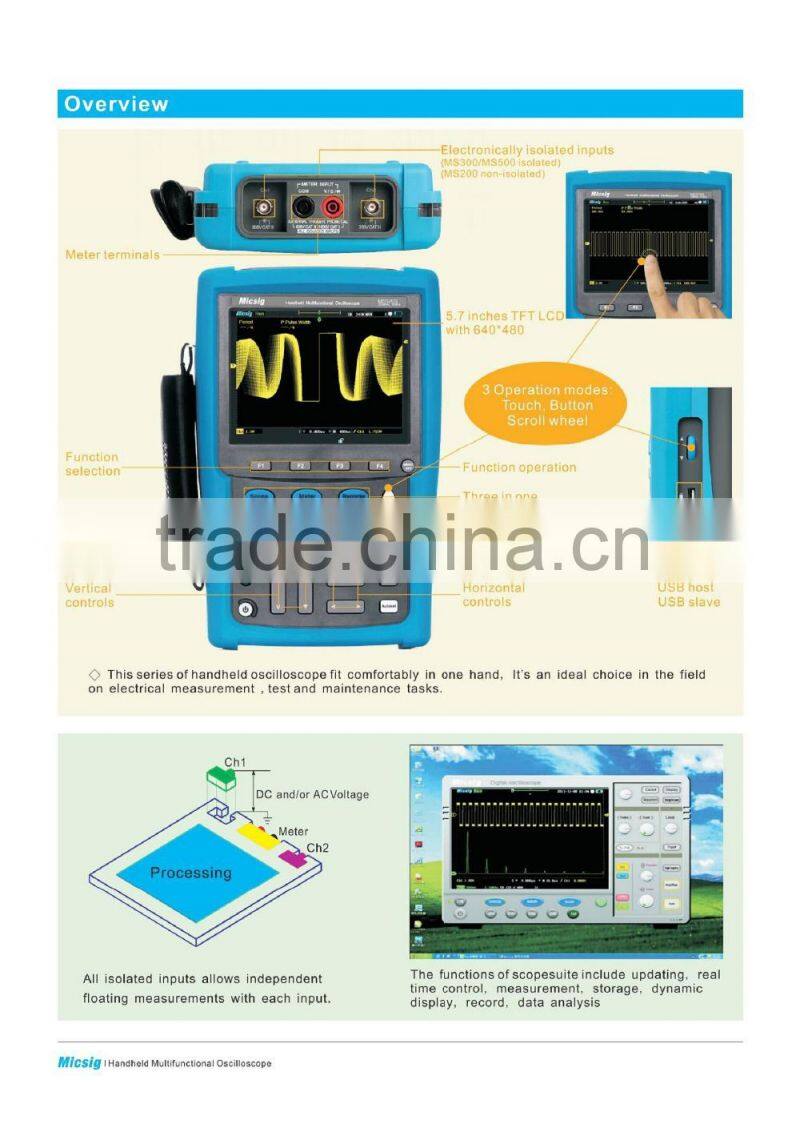

Micsig Isolated Handheld multi-functional oscilloscope includes oscilloscope, multimeter and recorder in one unit, which contains the following features:
- Optional electronically isolated-inputs channels:1000V CATII 600V CATII;

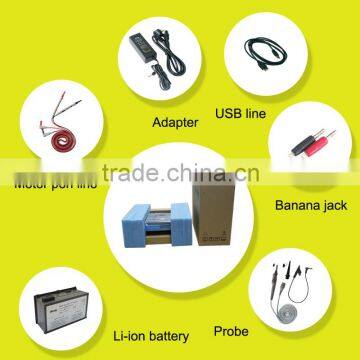

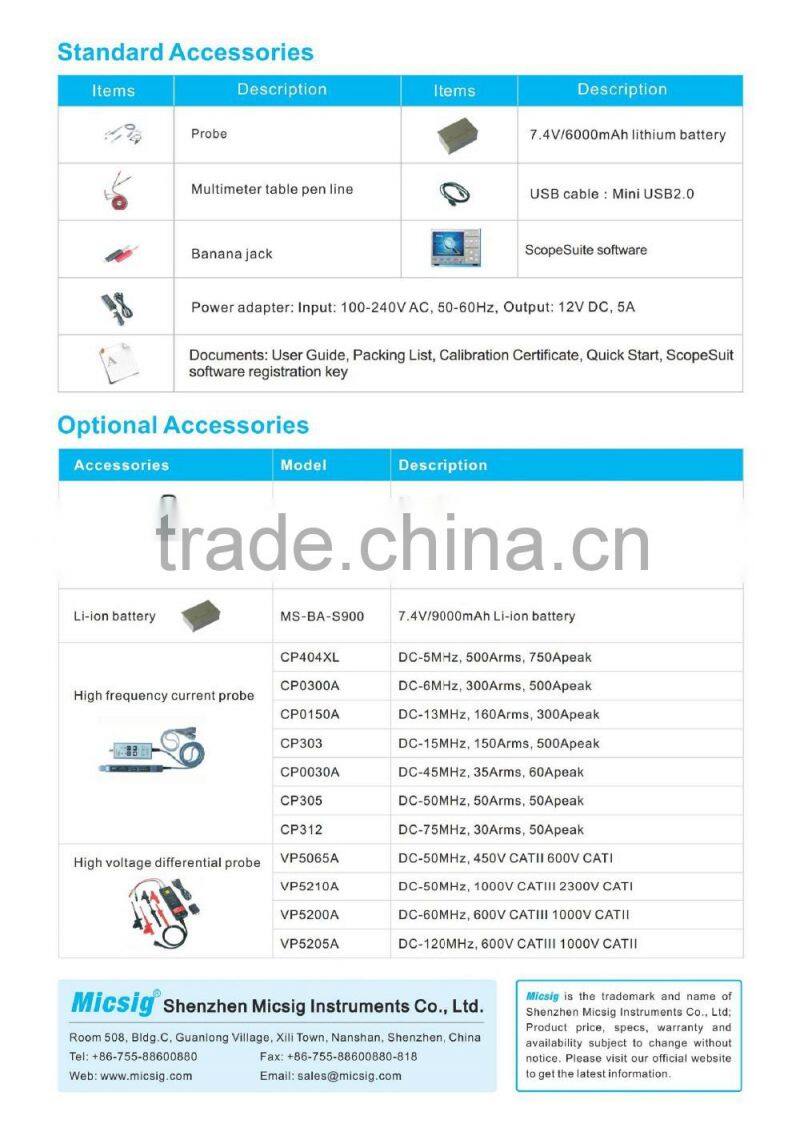

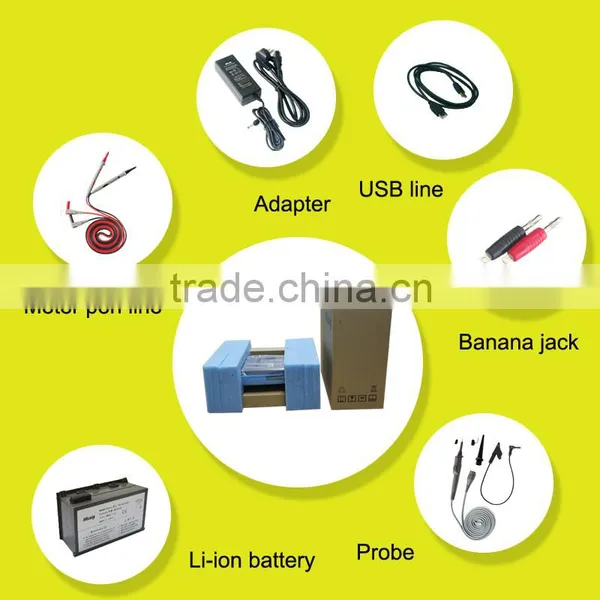

- High quality accessories probes, which is made in Germany;
- 5.7 inch TFT LCD full touch screen, 640*480 resolution, 16 bit color depth;
- Support serial bus trigger & decode for UART/RS422/RS485, LIN, CAN, SPI, 12C;
- 8 bits AD acquisition; Display and measurement are more precise;
- Touch+Button+Scroll Wheel simplify operation steps and make handling better;
- Up to 50,000 wfms/s waveform refresh rate;
- Quick drag and zoom on touch screen, quick operating response speed;

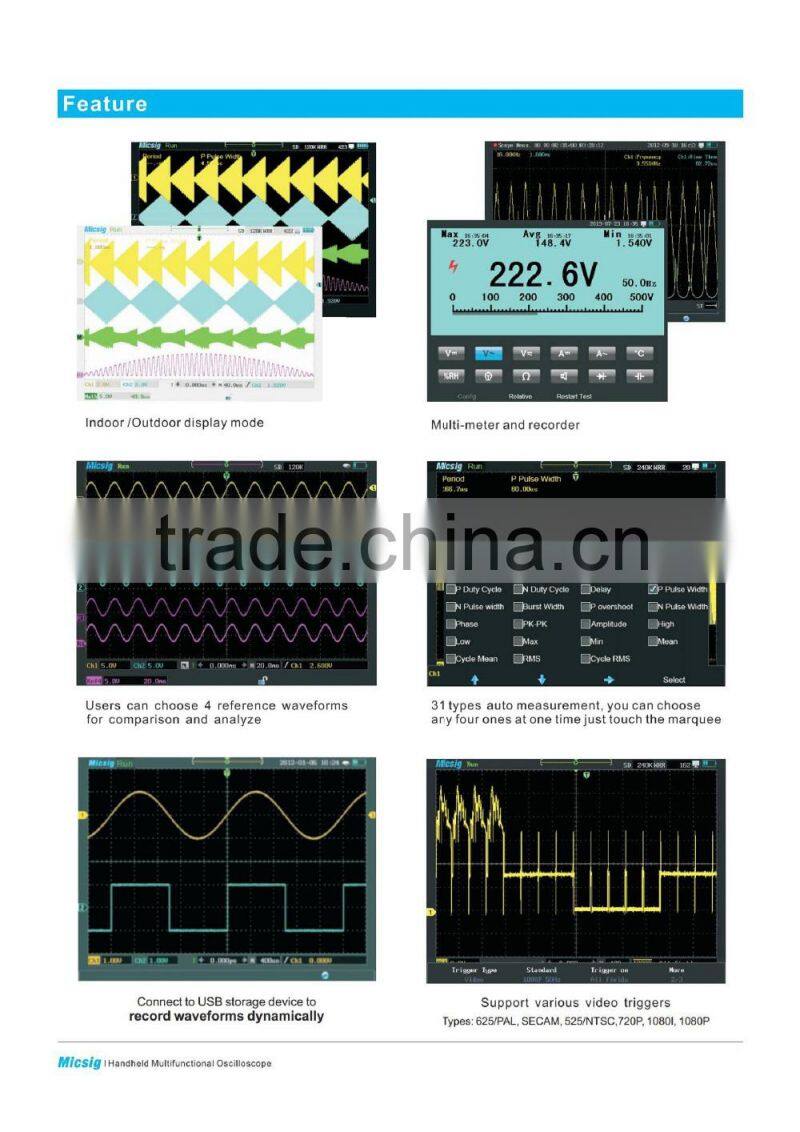

- 31 kind of automatic measurements;
- Support USB Host/Slave interface, which can plug U device or connect to the PC;
- Up to 7 hours detachable Li-ion battery persistence working;
Micsig digital storage handheld oscilloscope MS310IT specification
| Bandwidth1 | 100MHz |
| Operation | Multi-touch,button,scroll wheel |
| Real time sampling rate | 1GS/s for single channel,500MS/s for two channels |
| Memory depth | 240Kpts |
| Max capture rate | 50,000 wfms/s |
| Input Channel | 2 Oscilloscope channels, 1 Multi-meter channel |
| Display screen | 5.7" TFT multi-touch LCD,640x480 pixels,12x8 display range |
| Meter measurements | 10 physical measurements |
| Horizontal range | 4ns/div-10s/div |
| Serial bus decode types | UART/RS232/RS422/RS485,LIN,CAN,SPI,I2C,ARINC429,MIL-STD-1553B |
| Battery capacity | 7.4V/6,000mAh, continuous working time 4-5h |
| Rise time | <3.5ns |
| Vertical scale | 2mV/div-20V/div |
| Trigger types | Edge,Pulse,Logic,Serial bus trigger |
| Measurements | 31 automatic measurements |
| Math function | (+,-,*,/,FFT) |
| FFT | Rectangular,Hanmming,Hanning,Blackman-harris |
| Timebase mode | YT,XY,Roll |
| Persistence | Auto,100ms-10s,or ∞ |
| Coupling mode | AC,DC,Ground |
| I/O port | USB Host,USB device |
