modern agricultural machinery

FOB Price

USD $52,167 - $53,160 / Set

1 Set(Min.Order)

Supply Ability 170 Set / Sets per Month
Port Qingdao

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Shandong, China	Brand Name:	ONEAQUA	Model Number:	DYP 272
Sprayer Type:	Other	Diameter:	16.8 cm	Feature:	automatic
Condition:	New	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Company Information

Shandong H.T-BAUER Water-agriculture Machinery and Engineering Co,Ltd.

In 2000, Shandong H.T-BAUER Water-agriculture Machinery and Engineering Co,Ltd was set up at the high-tech zone in Jinan City as the 1st specialized Sino-foreign co-funded manufacturer of large irrigation equipments in China.

Since the early phase of the company, we have committed ourselves to improving the irrigation technology and producing and developing water-saving irrigation machines on the basis of guaranteeing the quality of products.

We have various types and models of irrigation equipments ranging from medium-sized hose-reel irrigator, small-sized hose reel irrigator to large center pivot irrigation system.

Through a dozen years of unremitting efforts, H.T-BAUER has achieved stable and fast development. Now we have about 200 staff members and a professional technical team.

At present, our products have been spread to 27 provinces and cities including Taiwan throughout China, and exported to a dozen of countries, such as America, Australia, Holland, Peru, Poland, Ukraine, Cuba, Mongolia and so on.

Advantages

1. Strong Technical Support

A technology center with more than 20 technical professionals

Top universities and R&D institutes cooperation

2. Top Quality Assurance

Strict quality control and procedures on materials selection

Mostly self manufacturing and installation and imported key components

Advanced equipments and first-class production technology

Sound management system and solid economic strength

3. Advanced Testing Measures

Exellent R&D, testing center

Capable of undertaking national research projects

Exclusive professional platform

4. Sound after-sale system, sincere and all-aspect service

Pre-sales plan and design

All-round services and techinical explanation during the contracting

Good and patient after-sales services

5. OEM service is acceptable, every products can be customized

Product information

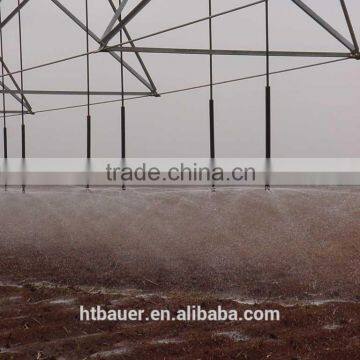

Aquaspin Center Pivot Irrigation System

Center-pivot irrigation (sometimes called central pivot irrigation), also called circle irrigation, is a method of crop irrigation in which equipment rotates around a pivot and crops are watered with sprinklers. A circular area centered on the pivot is irrigated, often creating a circular pattern in crops when viewed from above (sometimes referred to as crop circles). Most center pivots were initially water-powered, and today most are propelled by electric motors.

"Aquaspin" center pivot irrigation system is suitable for large-area irrigation, being economic, efficient, sturdy, durable and easy to handle. The long and multi-spans spin around the fixed center to irrigate the land circularly. The irrigation diameter can reach 1200 meters long with the most numbers and length of the spans.

These systems have provided proven results in varying terrain, cropping situations and seasonal irrigation requirements.

Suitable for large-area irrigation of cash crops such as alfalfa, corn, cotton, grapes, sorghum, peanuts, potatoes, soybeans, onions, rice, peanuts, tomatoes, wheat, fruit trees and other grains.

Pivot tower

The structure of the tower is designed for highest stability, with four legs, c-profiles, an optimized tower angle and broad support plates. The hot dip galvanization of the entire tower and double lip sealing guarantee the long lifespan of the system.

Drive towers-wheel base

High torsion resistance and a large dimensioned wheel base for high adjustability for different crops provide an optimum in stability for a slope steepness of up to 15 %.

Gear motor

The high-torque motors with thermal overload protection are enclosed for moisture protection and are equipped with high-performance spur gears, sealed for maximum dirt repellence.

Spans-trussing

Lowest operational costs are achieved by four available tube diameters (50 – 500 m3/h) and a single tube length for a minimal effort for assembly and transportation of the truss rods. One truss rod design for all model dimensions and span lengths allows high adaptability, while ensuring high tensile strength, safety and excellent stability.

Sprinklers

Elaborate combination of different sprinklers makes the water better distributed, advancing the efficiency of irrigation. Both the low-pressure deflector type spray nozzle and Rotator are with high wind resistance and meet the requirements even in windy conditions.

1. Advanced production facilities and perfect process to realize mass professional, high-quality, low-consumption and efficient mode of production.

2. You can gain control in precisely and automatically applying water and even chemicals through this system.

3. Using “V” type bridge structure makes it safety, durability and strength. All steel structures are hot dip galvanized can keep corrosion free for 20 years.

Crop	Peak water use period(days)	Crop	Peak water use period(days)
Alfalfa	100-165(Depending on location)	Potatoes	45
Corn	45	Barley	30
Cotton	35-55(Depending on location)	Sugar beets	65
Grass	155-200(Depending on location)	Sorghum	45
Wheat	30	Soybeans	50

Our Services

For free	Paid
1)Answer to technical consultation on our products;	1)Maintenance and components exchanges of the product destroyed by the users within the warranty period;
2)Provide the project plan and recommend relevant equipments for users;	2)Maintenance and components exchanges of the product out of the warranty period;
3)Contracted after-sales duties and the maintenance and components exchanges within the warranty period;	3)Maintenance and components exchanges of the product manufactured by other companies.
4)Build users files and call back regularly;
5)Set up a service center to contact with users.

Contact Us

Shandong H. T-Bauer Water And Agricultural Machinery & Engineering Co., Ltd.: Contact namexianfen meng; Phone0086-531-88671550; Address2009 Kehang Rd., High-Tech Zone
