Radio Wind Sensor

Feature

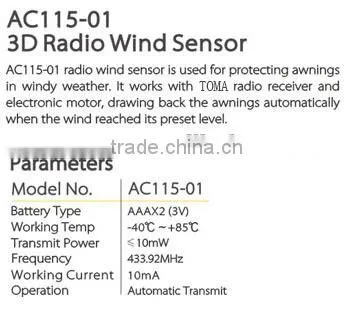

AC115-01 radio wind sensor works with TOMA tubular motor and radio control system to make the awning folded once the wind force reaches the pre-set level;

ABS plastic materials resisting ultraviolet ray;

Waterproof IP65 class, more suitable for outdoor usage.

Sensitivity stage from 1 to 9; 1 stage is the highest level;

Double pieces of 1.5V battery, lower watts loss with design patent.

Parameters

Installation and operation

Installation notice

TOMA products must be installed by professionals;

Please make sure the program of this sensor is compatible with other co-work products;

Please make sure its installation meets the local law and standard;

Please be noted that this sensor can not perfectly protect the awning in sudden weather, please make sure the awning is under tighten situation in this condition;

Any operation that is prohibited to TOMA operation is beyond guarantee range;

Along “OPEN” direction and open the cover box

1. Open back cover and magnet

Shell  back cover  magnet

Take out the inside cover

Install the battery

Note for wind sensor adjustment

Press KEY button and hold on, then install the battery, release the KEY button after saw the indicator light die out;

KEY sensitivity dial

4. Program

Program with TOMA radio receiver

Power on receiver

Enter into programming situation

Press KEY button for 3s

Motor shakes

Program complete

Program with TOMA radio motor

Press KEY button and hold on for 2s

After 3s

Power on radio motor

Motor has beeps

Release KEY button

Press KEY button again

Motor beep again

Program complete

5. Delete code

If you need to delete code, please refer to receiver or radio motor manual to complete!

6. Sensitivity adjustment

Please use screw driver to adjust sensitivity

Sensitivity dial

Every number on dial means sensor threshold; number 1 means the highest sensitivity value; number 9 means the lowest sensitivity value.

7. Assemble sensor

Correct

Wrong

Test the function of wind sensor by shaking it with hand.

Installation Note

Install the wind sensor in horizontal and upward direction;

The left and right end side is the best location for the sensor to detect the signal;

If the shaking range reaches its pre-set threshold, the sensor will automatically sent out an order to tighten the awning; and in the next 12 minutes the sensor will stop to detect the wind speed.

The sensor must be installed inside the

The sensor has an effective signal distance of 20m;

Please be noted that strong signal equipment such as the remote headphone will interfere the sensor’s normal running;

Left and right end of inside

The left

The right

Left and right end of outside

Horizontal and upward installation

Please do not upside down installation;

Please do not vertical installation;

Please do not tilt installation.
