ART.5058 factory manufacture forged automatically brass water safety pressure relief valve for controlling pressure on boilers
- 100000 Piece / Pieces per Month
- NINGBO/SHANGHAI/GUANGZHOU
- T/T L/C D/P D/A
Product Details
Standard or Nonstandard: | Standard | Structure: | Safety | Pressure: | Low Pressure |
Power: | Manual | Material: | Brass | Temperature of Media: | Medium Temperature |
Media: | Other, Water,Gas,Oil,Air | Port Size: | 1/2" | Place of Origin: | Zhejiang, China |
Model Number: | ART.5058 | Brand Name: | STA | Application: | General |
Product Description
ART.5058 factory manufacture forged automatically brass water safety pressure relief valve for controlling pressure on boilers

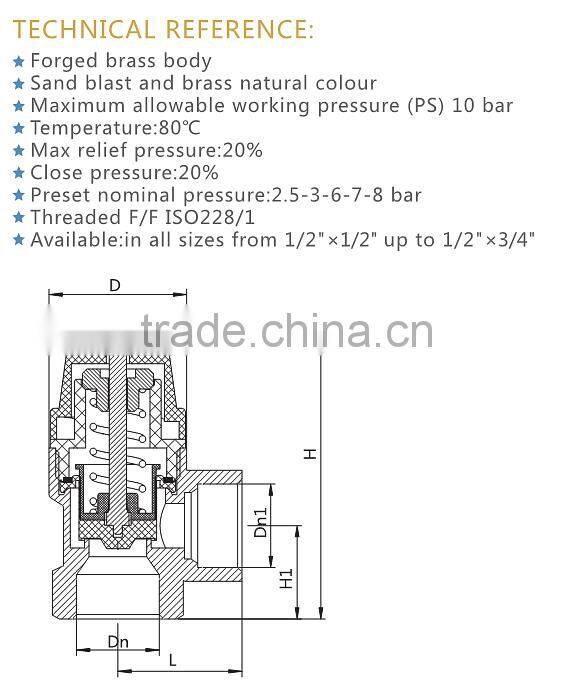

Drawing No. | DN | DN1 | H | H1 | H2 | L | D | Piece/box | Piece/carton |
6217030 | 1/2" | 1/2" | 71 | 23.5 | 9 | 28 | 31 | 10 | 100 |
6217150 | 1/2" | 3/4" | 73.5 | 26 | 9 | 30 | 31 | 10 | 100 |
6217040 | 3/4" | 3/4" | 73.5 | 26 | 9 | 30 | 31 | 8 | 80 |
You may like:
We can accept customer's packing requirement.
1. Q:Which brass material do you have?
A: Lead Free: CW509L CW511L. Common:DZR CW602N , CW617N, C3604 H59-1 H28-2A.
2. Q:How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 45-50 days if the goods won't be in stock, it is according to quantity.
3. Q: Can be customized?
A:It’s OK. After the drawing, sample and mould are sent to us from you, we can develop for you.
4. Q:How long is the warranty time?
A: 10 Years.
5. Q: What’s your payment term?
A:1. T/T.30% as deposit before production, the balance before shipment.
2. L/C at sight (for large quantity order) 3. 100% T/T in advance.
