Cylindrical Roller Thrust Bearing 160tp166
Drawing:
Dimensions& Designation:
| Bearing No. | Washers | Shoulder diameter | Weight | Load rating | ||||||||
| Bore | O.D. | Height | Thickness | O.D. | I.D | Shaft (min) | Housing (Max) | Fillet(1) Radius-max | static loading rating | Dynamic loading rating | ||
| d | D | t | ||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kg | mm | mm | |
| in. | in. | in. | in. | in. | in. | in. | in. | in. | lbs | in. | in. | |
| 20tp103 | 50.8 | 152.4 | 34.925 | 9.52 | 150.81 | 52.39 | 141.3 | 61.9 | 1.6 | 3.7 | 814 | 331 |
| 20tp104 | 50.8 | 177.8 | 34.925 | 9.52 | 176.21 | 52.39 | 163.5 | 65.1 | 1.6 | 5.1 | 1010 | 398 |
| 30tp106 | 76.2 | 152.4 | 34.925 | 9.52 | 150.81 | 77.79 | 142.9 | 85.7 | 1.6 | 3.2 | 747 | 340 |
| 30tp107 | 76.2 | 177.8 | 34.925 | 9.52 | 176.21 | 77.79 | 166.7 | 87.3 | 1.6 | 4.6 | 1040 | 414 |
| 30tp108 | 76.2 | 203.2 | 34.925 | 9.52 | 201.61 | 77.79 | 188.9 | 90.5 | 1.6 | 6.3 | 1380 | 520 |
| 30tp109 | 76.2 | 228.6 | 34.925 | 9.52 | 227.01 | 77.79 | 212.7 | 92.1 | 1.6 | 8.2 | 1800 | 636 |
| 35tp113 | 88.9 | 132.558 | 25.4 | 7.14 | 130.97 | 90.49 | 123.8 | 97.6 | 1.6 | 1.4 | 381 | 180 |
| 40tp114 | 101.6 | 177.8 | 44.45 | 12.7 | 176.21 | 103.19 | 168.3 | 111.1 | 1.6 | 5 | 1030 | 503 |
| 40tp115 | 101.6 | 203.2 | 44.45 | 12.7 | 201.61 | 103.19 | 190.5 | 114.3 | 1.6 | 7.1 | 1370 | 589 |
| 40tp116 | 101.6 | 228.6 | 44.45 | 12.7 | 227.01 | 103.19 | 214.3 | 115.9 | 1.6 | 9.5 | 1770 | 676 |
| 40tp117 | 101.6 | 254 | 44.45 | 12.7 | 252.41 | 103.19 | 238.1 | 117.5 | 1.6 | 11.6 | 2220 | 896 |
| 50tp119 | 127 | 203.2 | 44.45 | 12.7 | 201.61 | 128.59 | 190.5 | 139.7 | 1.6 | 5.9 | 1280 | 593 |
| 50tp120 | 127 | 228.6 | 44.45 | 12.7 | 227.01 | 128.59 | 215.9 | 139.7 | 1.6 | 8.3 | 1710 | 716 |
| 50tp121 | 127 | 254 | 50.8 | 14.29 | 252.41 | 128.59 | 239.7 | 141.3 | 3.2 | 12.4 | 2180 | 841 |
| 50tp122 | 127 | 279.4 | 50.8 | 14.29 | 277.81 | 128.59 | 261.9 | 144.5 | 3.2 | 15.8 | 2760 | 996 |
| 50tp123 | 127 | 304.8 | 50.8 | 14.29 | 303.21 | 128.59 | 288.9 | 146 | 3.2 | 19.4 | 3290 | 1170 |
| 60tp124 | 152.4 | 228.6 | 50.8 | 14.29 | 227.01 | 153.99 | 217.5 | 163.5 | 3.2 | 7.6 | 1410 | 600 |
| 60tp125 | 152.4 | 254 | 50.8 | 14.29 | 252.41 | 153.99 | 241.3 | 165.1 | 3.2 | 10.7 | 2000 | 845 |
| 60tp126 | 152.4 | 279.4 | 50.8 | 14.29 | 277.81 | 153.99 | 265.1 | 166.7 | 3.2 | 14.2 | 2700 | 1000 |
| 60tp127 | 152.4 | 304.8 | 50.8 | 14.29 | 303.31 | 153.99 | 287.3 | 169.9 | 3.2 | 17.7 | 3220 | 1110 |
| 70tp129 | 177.8 | 254 | 50.8 | 14.29 | 251.62 | 180.18 | 242.9 | 188.9 | 3.2 | 9.2 | 1620 | 663 |
| 70tp130 | 177.8 | 279.4 | 50.8 | 14.29 | 277.02 | 180.18 | 266.7 | 190.5 | 3.2 | 12.8 | 2400 | 930 |
| 70tp131 | 177.8 | 304.8 | 50.8 | 14.29 | 302.42 | 180.18 | 288.9 | 193.7 | 3.2 | 16.8 | 3090 | 1080 |
| 70tp132 | 177.8 | 355.6 | 76.2 | 20.64 | 353.22 | 180.18 | 335 | 335 198.4 | 6.4 | 36.3 | 4490 | 1750 |

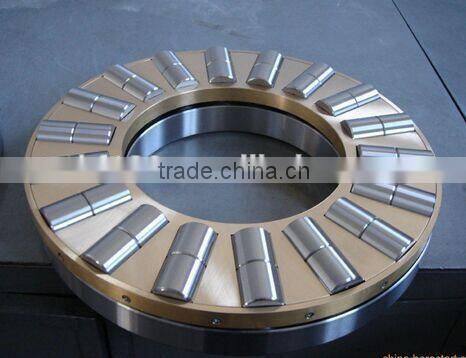

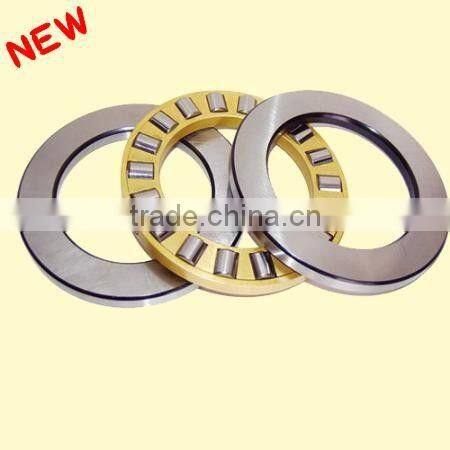

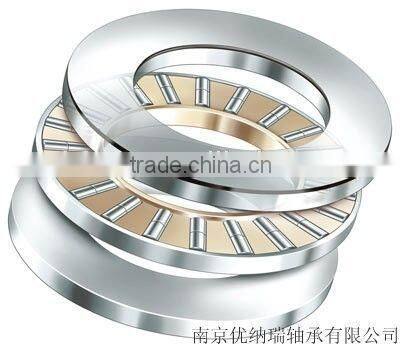

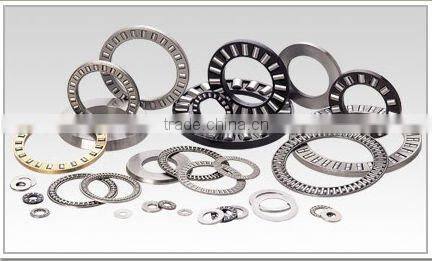

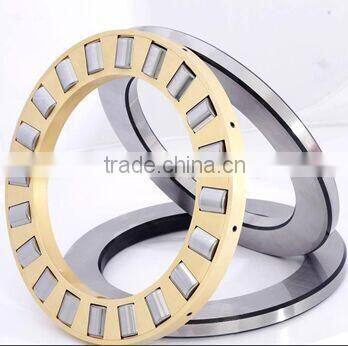

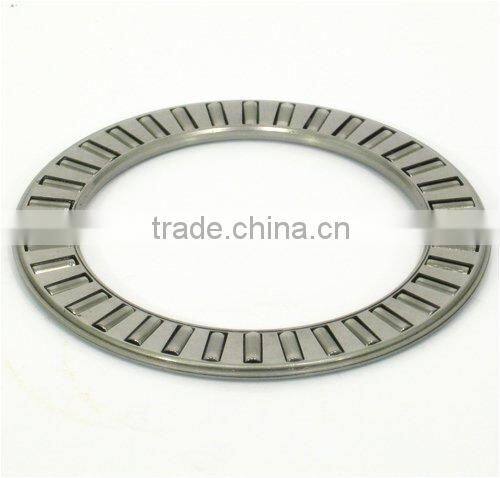

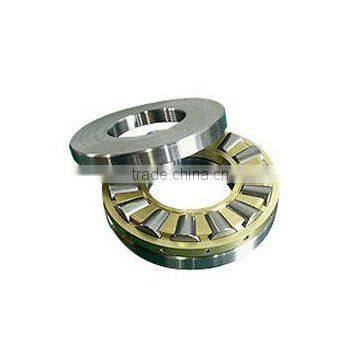

Bearing Pictures:
Package &Shipping:
1. We normally use default industrial package with our own logo, customerized logo and marking is also acceptable.
2. We normally make special plywood box for big bearing or small bearing big order.
Leading time:
--Normally we have most bearings in stock with plenty quantity., so we are able to ship the goods immediately once confirm your payment.
-- For big order or special new design bearing, we need around 20 days for production then ship out.
Payment terms
-- 30% paid in advance as deposit, the balance shall be cleared before shipping-
-- other payment methods: Paypal, WestUnion, etc.
MOQ: 1PCS
About our company:
Nanjing Younarui Bearing Co., Ltd. is a professional and one of the leading manufacturer of variouse bearings since 2004. After many years efforts, our company has got very good reputation and establish long term business relationship with many client from both at home and abroad, especially in European and American markets. Our own bearing brand is "YNR". Welcome to contact us.
Our Main products:
Spherical roller bearing, deep groove ball bearing, taper roller bearing, thrust bearing, angular contact ball bearing, cylindrical roller bearing, thrust ball bearing, thrust roller bearing,
self-aligning roller bearing, needle roller bearing, linear guide bearing and slewing bearing, etc.
OEM manufacturing service is also welcomed by us! Just feel free to contact me for more details!
welcome you to contact me if you are just in the market for any kind of bearings !
We will reply you as soon as we can!
My what's app: 0086 1826200 20837
QQ: 242561836 Julie Ma
...
