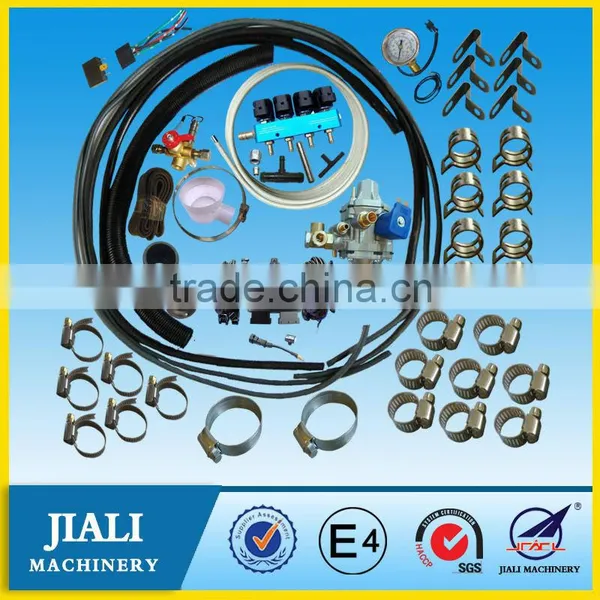

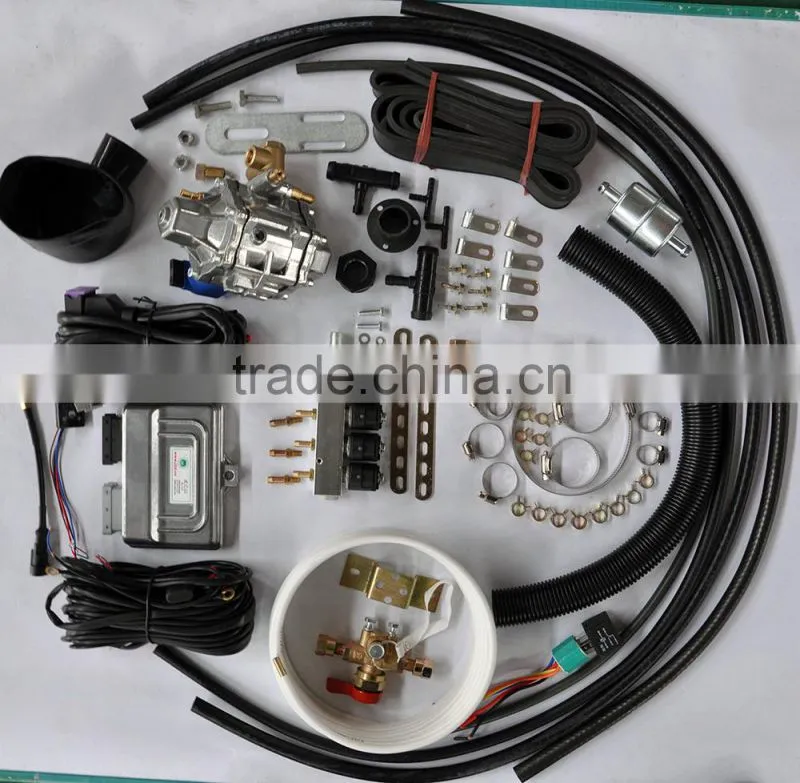

Details about dual fuel cng conversion kit
1.Commodity: dual fuel cng conversion kit
2.Key Parts & Functions about dual fuel cng conversion kit

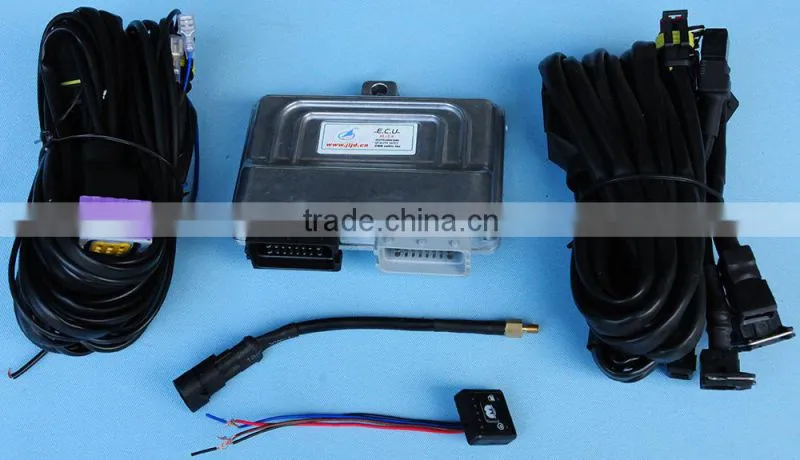

A. ECU Kits (Exon1.0)
1. Systems Overviews
A.The "phased sequential" system is the latest generation of injection LPG and CNG systems suitable for installation both in multipoint injection sequential vehicles and in multipoint injection "semi-sequential" and "full-group" vehicles;
B.It is the most effective system that ensures the best results in terms of driving conditions and performance.
C.The enriching strategies and consumption and emissions optimization strategies generated by the petrol CPU are indeed unaltered in each cylinder.
2.Technology Data:
| Working pressure of regulator: | <=20MPa |
| Working pressure of injectiors | 0.5-2.5bar |
| Time for the open/close of single injector | 0.6-1ms |
| Rated voltage | 12—15v DC |
| One cycle time | <3ms |
| Available to | 4 cylinder; 6 cylinder; 8 cylinder |
| Temperature of work environment | -40°c~120°c |
| Fuel temperature | -10°c~100°c |
B. CNG/LPG INJECTORS(3 cylinders, 4 cylinders, 6cylinder or 8 cylinders)
a. The gas injectors are electro-mechanical gas regulators that enable the quantity of gas fed to the combustion chamber to be controlled with great precision and rapidity. This means that combustion can be optimized, and therefore the exhaust pollutants reduced, increasing the yield of the engine, which means lower fuel consumption in all fields of operation.
b. The very fast injector response time(opening time 1.6ms, closing time 1.5ms) allows the engine control units to directly control all performance phases.

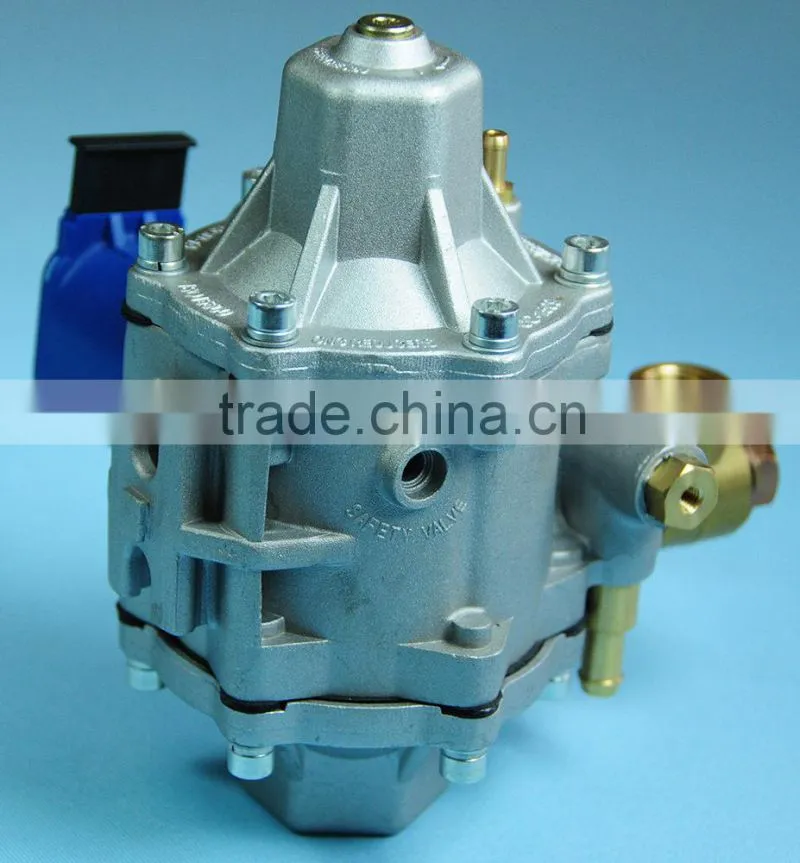

C.CNG Sequential Reducer/Regulator, with Solenoid Valves
They will let high pressure gas from CNG tanks be the low pressure gas which is available to engines

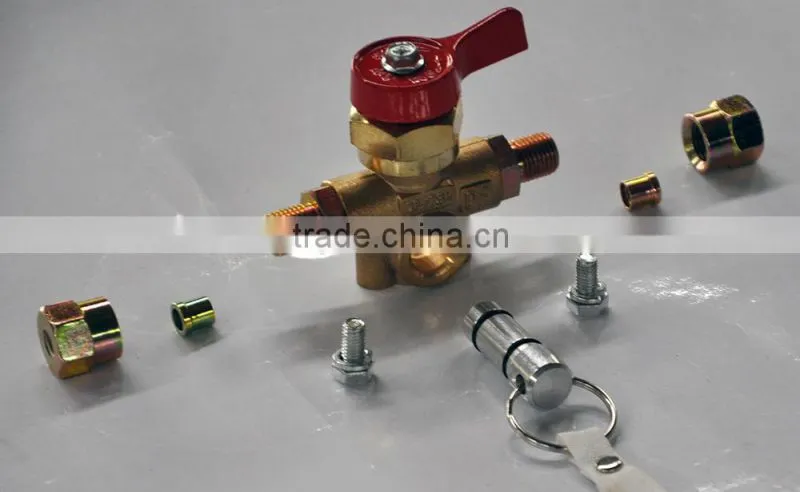

D. CNG Filling Valves(T3H)
Filling CNG into CNG Tank through the valves
E.CNGPipeline(stainless steel,dia6mm*5.5meter)
Carry CNG from CNG tank to CNG Reducers
F.Accessary kits
3.Usage and Advantage about dual fuel cng conversion kit
a.Advantage
A."Backfire" problems solved;
B.Self-adapting during normal use;
C.Many "environment" parameters are considered, to get the most stable operation even in extreme weather conditions;
D.Polluting exhaust emissions reduced;
E.Performance is stable,computer process control.
F.System reflect more sensitive,power output strong.
G.Strong Economy,low Gas consumption ,Low maintenance cost;
H.Effectively resolve the problem of tempering,reduce harmful gases,better environmental protection
b.Usage
Sequential injection LPG/CNG kit, suit to 3-4, 6, 8 cylinders injection EFI cars; one normal type up to 140KW, the other super type 250KW
4.Warranty conditions:
The warranty period terminates minimum 1 year with a mileage limit. IF exceed the warranty period,
you need to pay for the cost if you want to apply for warranty service.

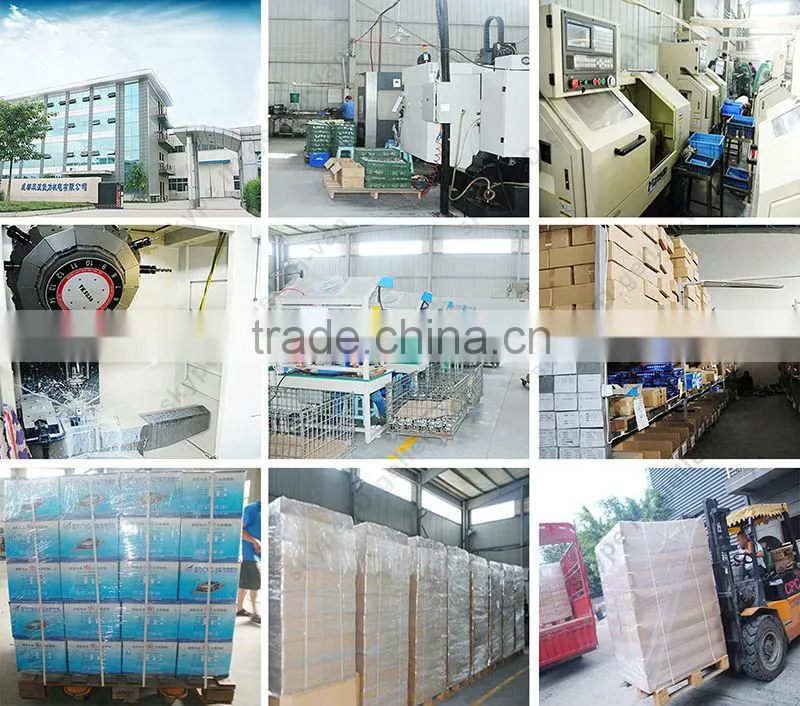

5.Photos from our workshops

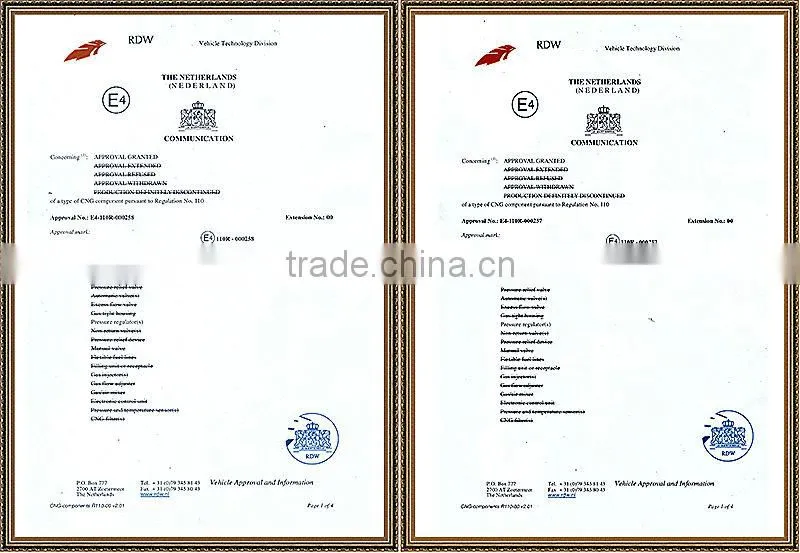

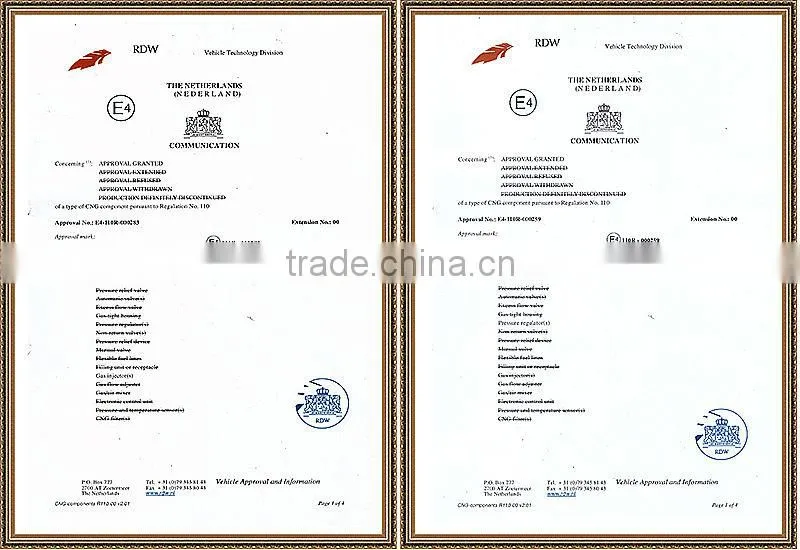

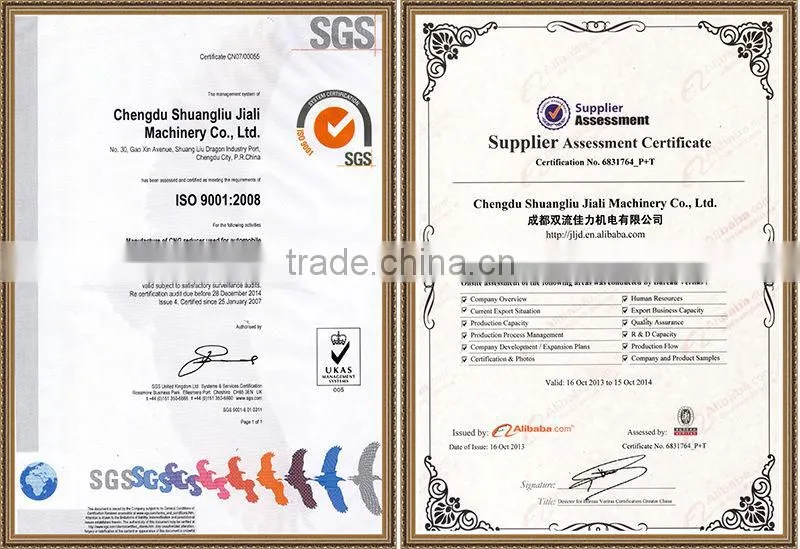

6.Certificates:
E4 R110-000257 E4 R110-000259
E4 R110-000258 E4 R110-000283
7. All CNG/LPG kits of Reducer/Regulator
8. CNG/LPG injectors
9.LPG/NG Generators
