Details about China manufacturer automobile tomasetto cng kit
1.Commodity: China manufacturer automobile tomasetto cng kit

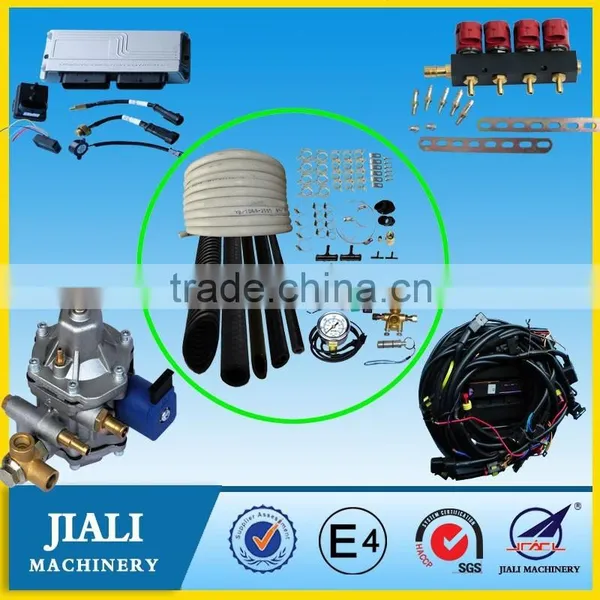

2.Key Parts & Functions about China manufacturer automobile tomasetto cng kit
A. ECU Kits (AC300)
1. Systems Overviews
A.The "phased sequential" system is the latest generation of injection LPG and CNG systems suitable for installation both in multipoint injection sequential vehicles and in multipoint injection "semi-sequential" and "full-group" vehicles;
B.It is the most effective system that ensures the best results in terms of driving conditions and performance.
C.The enriching strategies and consumption and emissions optimization strategies generated by the petrol CPU are indeed unaltered in each cylinder.
2.Technology Data:
| Working pressure of regulator: | <=20MPa |
| Working pressure of injectiors | 0.5-2.5bar |
| Time for the open/close of single injector | 0.6-1ms |
| Rated voltage | 12—15v DC |
| One cycle time | <3ms |
| Temperature of work environment | -40°c~120°c |
| Fuel temperature | -10°c~100°c |
3. Detailed Parts
Electronic Control Unit, Harness, Water Temperature Sensor, Micro-switch, Map Sensor.
ECU Software: Mach Pro, support 11 languages. To setup on PC, for programming the gas ECU to match with your car's condition
It is one of the main components for the burning gas system, through collecting the fuel signal of the ECU control module which come from the original car, and integrate water temperature sensor signal, intake manifold pressure sensor, intake air temperature sensor, gas temperature sensor signal, gas pressure sensor signal, sensor crank shaft position sensor signal, then do the analysis processing, and send out the injunction to the burning gas mutual rail injection valve, when the engine stopped the gas system will be cut off automatically. It can further enhance the stability, security and rapid response, and other characteristics of the gas engine. Meet the requirements of the gas engine emission standards, such as EU2, EU3, and EU4 and over.
B. CNG/LPG INJECTORS(3 cylinders, 4 cylinders, 6cylinder or 8 cylinders)
a. The gas injectors are electro-mechanical gas regulators that enable the quantity of gas fed to the combustion chamber to be controlled with great precision and rapidity. This means that combustion can be optimized, and therefore the exhaust pollutants reduced, increasing the yield of the engine, which means lower fuel consumption in all fields of operation.
b. The very fast injector response time(opening time 1.6ms, closing time 1.5ms) allows the engine control units to directly control all performance phases.
C.CNG Sequential Reducer/Regulator, with Solenoid Valves
They will let high pressure gas from CNG tanks be the low pressure gas which is available to engines
D. CNG Filling Valves(T3H)
Filling CNG into CNG Tank through the valves
E.CNGPipeline(stainless steel,dia6mm*5.5meter)
Carry CNG from CNG tank to CNG Reducers
F.Accessary kits
3. Operation principle and functions about China manufacturer automobile tomasetto cng kit
4.Usage and Advantage about China manufacturer automobile tomasetto cng kit
a. Advantage
A."Backfire" problems solved;
B.Self-adapting during normal use;
C.Many "environment" parameters are considered, to get the most stable operation even in extreme weather conditions;
D.Polluting exhaust emissions reduced;
E.Performance is stable,computer process control.
F.System reflect more sensitive,power output strong.
G.Strong Economy,low Gas consumption ,Low maintenance cost;
H.Effectively resolve the problem of tempering,reduce harmful gases,better environmental protection
b.Usage
Sequential injection LPG kit, suit to 3-4, 6, 8 cylinders injection EFI cars; one normal type up to 140KW, the other super type 250KW
5.Warranty conditions:
The warranty period terminates minimum 1 year with a mileage limit. IF exceed the warranty period,
you need to pay for the cost if you want to apply for warranty service.
6.Photos from our workshops
7.Certificates:
E4 R110-000257 E4 R110-000259
E4 R110-000258 E4 R110-000283
8. All CNG/LPG kits of Reducer/Regulator
9. CNG/LPG injectors
10.LPG/NG Generators
