SEN-RICH Card Reader with Small Volume, Fast Reading Rate

Product overview

SR-JS218 series one-piece legibility is SHENZHEN SEN-RICH TECHNOLOGY CO., LTD. According to the actual market needs to develop the latest generation of products. This product is multi-protocol compatible, small volume, fast reading rate, more tag to read the label have no direction, circular polarized antenna limit etc, and can be widely applied to various kinds of RFID system, the typical applications are:

1) transportation management: road, rail transportation and container transportation management, etc.;

2) : motor vehicle management departments such as public security and traffic monitoring and management of       all kinds of motor vehicles;

3) Roads charges: since this product has the ability of long-distance high-speed read label data, luqiao               charges can not stop;

4) customs clearance management: customs clearance, transit of supplies and vehicle management;

5) warehousing logistics management: commodity flow with the warehouse management and air mail, parcels       and luggage and other flow management;

6) parking lot management: to realize the automatic management and charge;

7) entrance guard management: including vehicles and personnel in and out of the management; Production       process:

8) process in the whole process monitoring components.

Other areas: the club management, library, student status, consumption management, attendance management, dining, swimming pool management system has been widely used.

Product appearance and function

support 5 db, two 8 db gain antenna optional (more antenna consult pre-sales engineer)

Ø read-write device can set up a fixed processing logic rules, have read meet the conditions of the specified        tag and output alarm function

Ø read-write tags: accord with ISO18000-6 c, EPC Class1 Gen 2 electronic label

Ø can read at the same time of different length (96, 512 - bit) EPC code label

Ø readable tags USER selected area data

Ø readable label TID area selected data

Ø readable label password access and destruction (both for 32-bit)

Ø can write different length (16, 32, 48, 64, 80, 96 & 512 - bit) EPC code

Ø can write USER data

Ø can modify password access and destruction tag (both for 32-bit)

Ø EPC, TID and users can write protected

Ø Password District can read and write protection

Ø can destroy (Kill) tag

Electrical parameters

External interface

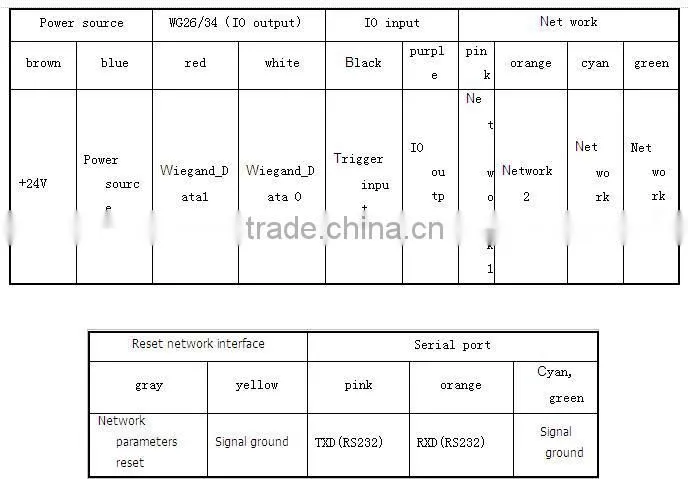

The connecting line sequence diagram is as follows:
