Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > YAG Laser Metal Cutting Machine Price DW0505/0404/0303

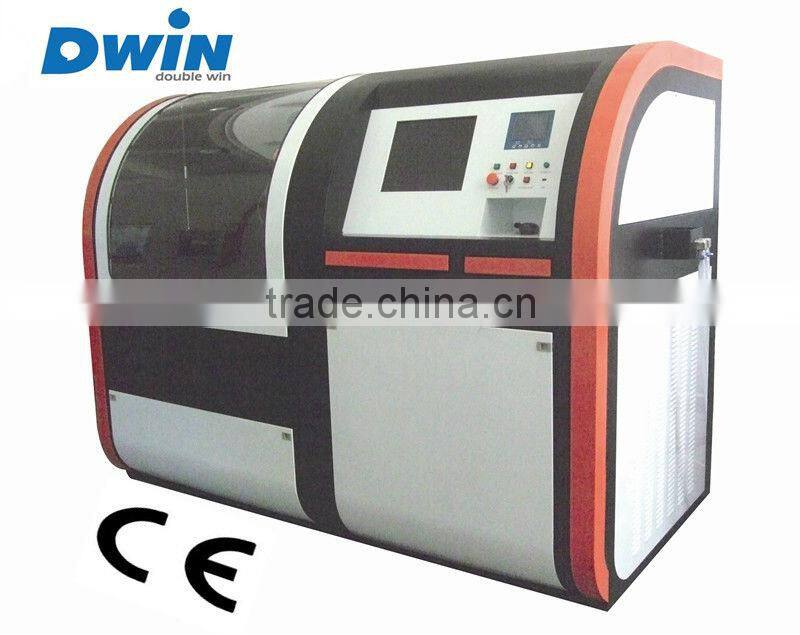

YAG Laser Metal Cutting Machine Price DW0505/0404/0303
US$ 12,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Jinan 50W YAG Memory Card Making MachineNegotiableMOQ: 1 Set -
Dw40 Distributor Wanted Advertising Arts Crafts Wood Acrylic Leather Paper Textile Stamp Making Laser Machine Small EngravingUS$ 500 - 2,200MOQ: 1 Set
-
DW5030 Distributor Wanted Advertising Arts Crafts Wood Acrylic Leather Paper Textile Laser Machine Small EngravingUS$ 1,000 - 3,000MOQ: 1 Set
-
DW Co2 Laser Cutting and Engraving Machine DW1290 Multifunctional ,acrylic,rubber,plastic,plexiglass,organic Glass,fabric,clothsUS$ 2,000 - 100,000MOQ: 1 Set
-
Hot Cnc Laser Engraving Machiine DW5030US$ 1,000 - 3,000MOQ: 1 Set
Condition
New
Laser Type
CO2
Applicable Material
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Cutting Thickness
10mm
Cutting Area
300*300mm
Cutting Speed
35mm/s
CNC or Not
Yes
Cooling Mode
Water Cooling
Control Software
Leetro
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, AI, PLT, DXF, BMP, DST, DWG
Place of Origin
China
Brand Name
DWIN
Model Number
DW0505
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
YAG laser metal cutting machine priceDW0505/0404/03031 fast speed
2 high accuracy
3 less lose
4.with CE
YAG laser metal cutting machine price DW-0505/0404/0303
Features
1) Cutting surface is smooth and less dross. The maximum thickness is up to 10mm (cutting carbon steel). This is the maximum cutting thickness in small and medium power YAG cutting industry.
2) Stainless steel below 4mm and mild steel below 8mm can just use air to laser cut (no required oxygen gas . Good cutting effect, maximizing reducing use-cost.
3) Metal parts of different shapes can be auto arranged in an optimal way. Excess material nesting function enable excess material reuse. Material saving up to 8%-10% than general processing
4) Dynamic focusing system. When cutting different thickness metal sheets and uneven materials, adjusting focus is no required, so as to achieve fast cutting and greatly improve working efficiency
5) Rotary attachment can be optional equipped for metal tubes / metal pipes cutting and positioning punching

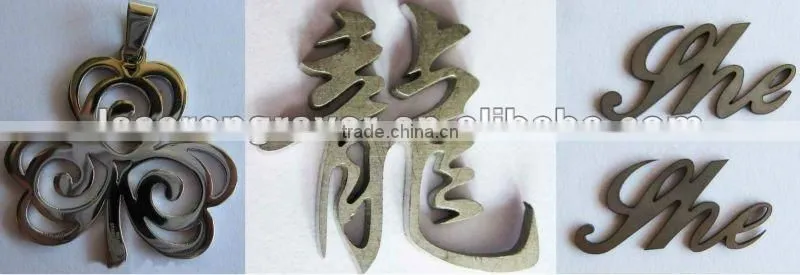

Application
YAG Laser cutting machine has been widely used in manufacturing billboard ,sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware , saw bits ,precision metal parts ,metal artware
Applicable materials
Stainless steel ,mild steel/carbon steel ,Copper, aluminum, alloy steel ,spring steel ,galvanized plate ,aluminum coated plate and some other alloy plate and pipe including titanium alloy etc
Technical Parameter
|
Model
|
DW-YAG-0505
|
DW-YAG-0404
|
DW-YAG-0303 |
Working area |
500*500mm |
400*400mm |
300*300mm |
Max output power |
600W |
600W |
600W |
Max Cutting thickness |
10mm( carbon steel) |
10mm( carbon steel) |
10mm( carbon steel) |
Laser wavelength |
1064nm |
1064nm0 |
1064nm |
Pulse frequency |
1-300HZ |
1-300HZ |
1-300HZ |
Max Cutting speed |
35mm/s |
35mm/s |
35mm/s |
X Y Z Positioning accuracy / X Y Z |
<+-0.08mm |
<+-0.08mm |
<+-0.08mm |
X Y Z re-orientation accuracy /X Y Z |
<=+-0.04mm |
<=+-0.04mm |
<=+-0.04mm |
Machine weight |
400KG |
390KG |
380KG |
Cooling model |
Water cooling |
Water cooling |
Water cooling |
Power Supply |
380V/50HZ |
380V/50HZ |
380V/50HZ |
