Specifications
Diode side pump laser marking machine price1.For gold, silver, precious metal
2.Rotary system
3.High precision
DW50D diode metal laser marking machine
Features:
1) Use the advanced diode side-pumped laser technology, with high optical conversion efficiency and stable performance.
2)Fast speed & no touch processing, the heat exchange is little, the material is not easy to distort.
3) With preciser beam mode than YAG lamp-pump laser machine, the high precision is what the YAG Lamp-pump laser machine can not reach.
4) No need to change the consumables (such as laser lamp), free of maintenance,
very low operation cost.
5) All the core optical components used such as laser diode, Q-switch crystal,
are famous brands with top quality, therefore the whole machine is with very
stable performance and long life time.
Specifications:
1. Laser output power |
50W |
2. Laser wavelength |
1064nm |
3. Standard marking scope |
110 mm*110mm |
4. Selective Marking scope |
70mm*70mm/150 mm*150mm |
5. Beam quality |
M2 <3 (@ 25A) |
6. Marking depth |
0.01~0.2mm |
7. Marking speed |
7000mm/s |
8.Repeated accuracy |
±0.01mm |
9.Minimum character |
0.1mm |
10.Minimum line width |
0.015mm |
11.Electric power requirement |
380V/50-60Hz220V/50-60Hz |
12.Machine power |
3KW |
13. Dimensions :(L*W*H) |
|
Mainframe : |
240mm*1280mm*1200mm |
Control Cabinet : |
590mm*560mm*800mm |
Water Cooling Machine: |
540mm*700mm*900mm |
Guarantee & After Sales Service
1) The machine guarantee is 18 months.
2) 24 hours technical support by email or calling.
3) Friendly English verson manual and operation video CD disc.

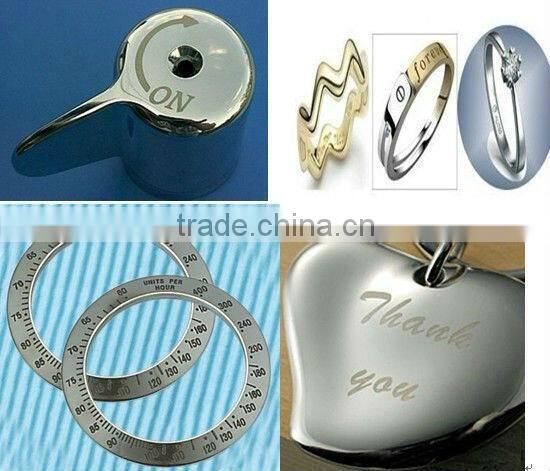

samples show

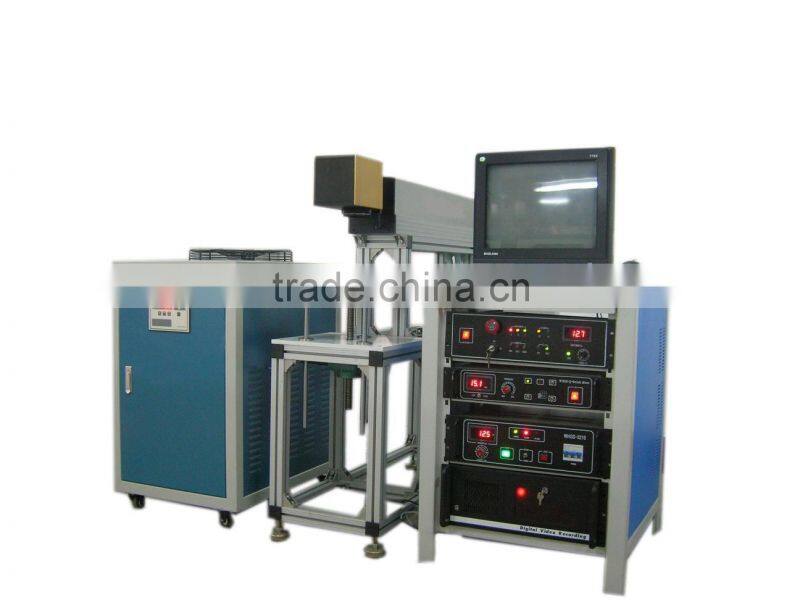

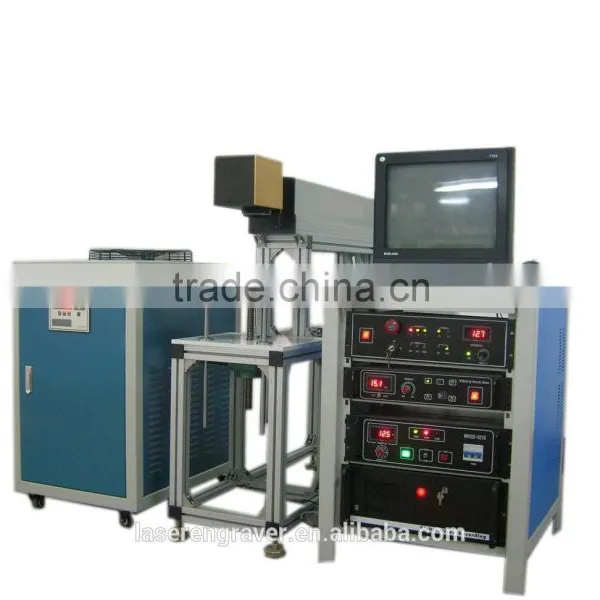

machine pictures
