Specifications
600W advertising signs YAG laser cutting machine1 YAG 500,650watts
2 High precise,clean cut edge
3 High speed
4 CE

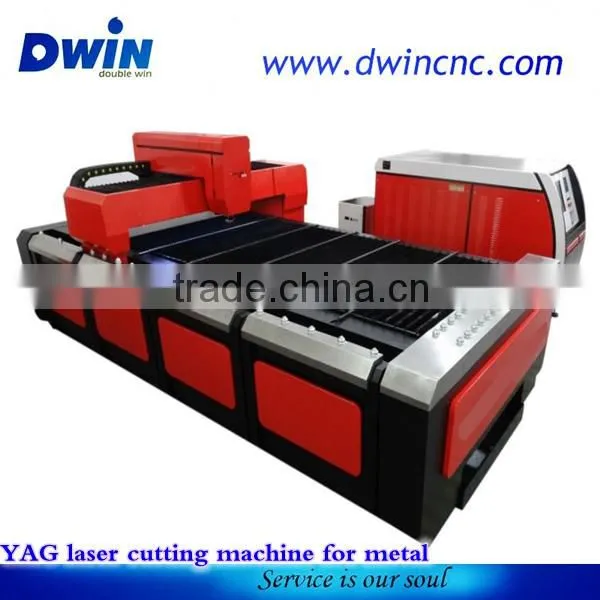

600W advertising signs YAG laser cutting machine
1. Cutting surface is smooth and less dross. The maximum thickness is up to 10mm (cutting carbon steel). This is the maximum cutting thickness in small and medium power YAG cutting industry.
2. Stainless steel below 4mm and mild steel below 8mm can just use air to laser cut (no required oxygen gas . Good cutting effect, maximizing reducing use-cost.
3. Metal parts of different shapes can be auto arranged in an optimal way. Excess material nesting function enable excess material reuse. Material saving up to 8%-10% than general processing
4. Dynamic focusing system. When cutting different thickness metal sheets and uneven materials, adjusting focus is no required, so as to achieve fast cutting and greatly improve working efficiency
5. Rotary attachment can be optional equipped for metal tubes / metal pipes cutting and positioning punching
Application

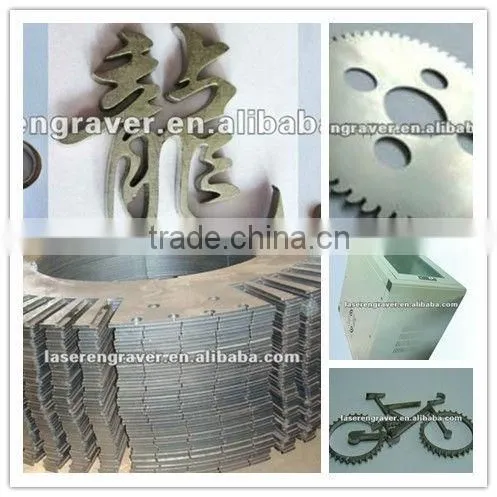

YAG Laser cutting machine has been widely used in manufacturing billboard ,sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware , saw bits ,precision metal parts ,metal artware ,
Applicable materials
Stainless steel ,mild steel/carbon steel ,Copper, aluminum, alloy steel ,spring steel ,galvanized plate ,aluminum coated plate and some other alloy plate and pipe including titanium alloy etc
Technical Parameter
|
Model
|
DW-YAG--4115
|
DW-YAG-3015
|
DW-YAG-2513
|
Working area |
4100*1500mm |
3000*1500mm |
2500*1300mm |
Max output power |
600W |
600W |
600W |
Max Cutting thickness |
10mm(carbon steel |
10mm( carbon steel |
10mm(carbon steel) |
Laser wavelength |
1064nm |
1064nm0 |
1064nm |
Pulse frequency |
1-300HZ |
1-300HZ |
1-300HZ |
Max Cutting speed |
35mm/s |
35mm/s |
35mm/s |
X Y Z Positioning accuracy |
<+-0.08mm |
<+-0.08mm |
<+-0.08mm |
X Y Z re-orientation accuracy |
<=+-0.04mm |
<=+-0.04mm |
<=+-0.04mm |
Machine weight |
4100KG |
4100KG |
4100KG |
Cooling model |
Water cooling |
Water cooling |
Water cooling |
Power Supply |
380V/50HZ |
380V/50HZ |
380V/50HZ |
Jinan Dwin Technology Co., Ltd. is a high-tech enterprise that is engaged in the research, manufacture and sale of laser machines, laser engraving and cutting machine, laser marking machine ,CNC routers and relevant advertisement products. Dwin has gained CE, FDA and ISO certifications. Our company has successfully produced DW series of products which enjoy a good reputation. Excellent quality and fast service make our products spread over Europe, America, the Middle East and Southeast Asia.
Dwin mainly produces laser engraving machines, laser cutting machines, laser marking machines, Advertisement CNC routers, marble CNC routers and CNC woodworking machines.
Dwin machines are widely used in garment cutting, craftwork, rubber plate, package printing, leather cutting, sign marking, wood furniture, construction, decoration, stone engraving and mould making. Dwin CNC machines have greatly improved the efficiency of relevant industries and the quality of relevant products.
Dwin constantly pursues the philosophy of "technical innovation, cooperation and all win", together with you for a brilliant future. We are sincerely looking forward to continuous instruction and support from our clients.
1) The machine guarantee is 18 months.
2) 24 hours technical support by email or calling.
3) Friendly English verson manual and operation video CD disc.
last but not the least Dear customer, this just a normal model ,if you have any special application or materials,
please don't hesitate to tell us ,we can manufacture as your request and give you a satisfying result .
Besides,we have many kinds of the machine fittings ,if you need help,please contact us ,
we are willing to help you!
