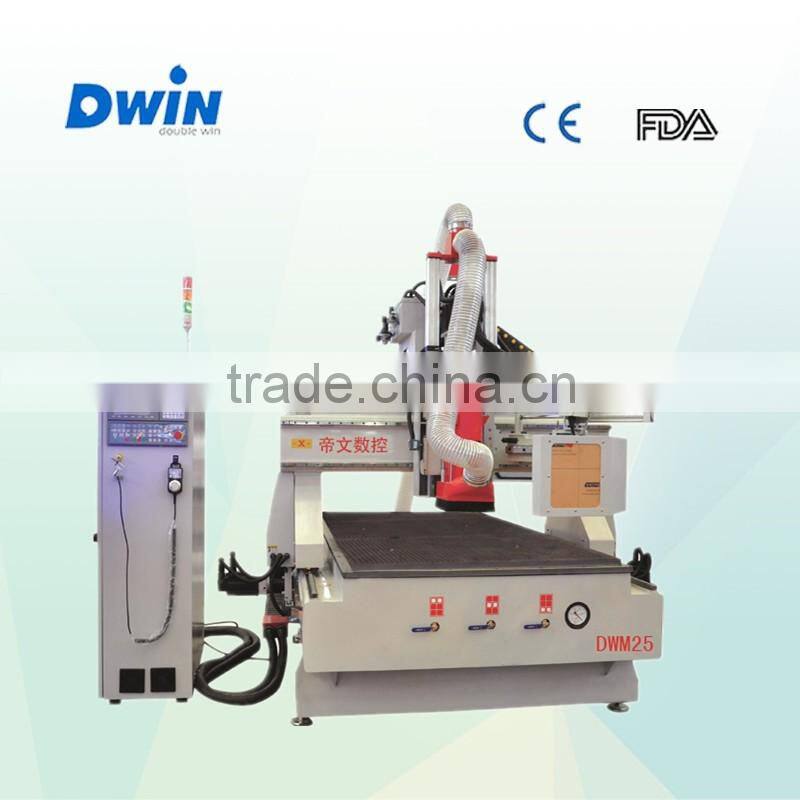

hot ATC CNC Woodworking Machine for sale
Features:
*Taiwan control system, Italy spindle, the spindle bearing is high precision ceramic one. It is low noise, long usage life. Taiwan high precision linear guide rail and German ball screw enable the huge bearing capability and high precision of the machine. Servo motor imported from Japan have the long torque and also have the perfect safety system.
*Whole machine is welded with seamless steel structure, which is not easy to be deformed. The side board of gantry adopt steel sturecture.
*Simple and safety operating model, advanced function of files and preprocess function can gurantee the run speed and the precision.
*Hot ATC CNC Woodworking Machine for sale can change 6-10 pieces of tools, tool changing time just need 8 seconds.
*High power of vacuum table device.
*Software compatible:open software interface can suit type3/artcam/castmate/wentai and other NC code that was made by the CAD/CAM.
Technical Parameter:
| Model | DW1325 | Option |
| XYZ working area | 1300mm*2500mm*200mm | According to demends |
| Max traveling speed | 60m/min | |
| Max engraving speed | 25m/min | |
| Spindle power | 8KW HQD or HSD for choice | Option : 3-12KW |
| Spindle rotating speed |
0-24000rpm/min |
|
| The number of knife | 8pcs | Option:6-10pcs |
| The manner to change knife | Circular disk | Option: Linear |
| Working voltage | 380V 50Hz/60Hz 3PH | |
| Drive motors | Yaskawa / panasonic servo | servo motor made in china or step |
| Command |
G code*.u00*.mmg*.plt |
|
| Operation system | SYNTEC | DSP/WEIHONG/MACH3 |
Applicable industry and material:
*Furniture: wooden doors, cabinets, plate, office and wood funiture, tables, chair, doors and windows.
*The wood products: voice box, game cambinets, computer tables, sewing machines table, instruments.
*Plate processing: insulation part, plastic chemical, PCB, inner body of car, bowling tracks, stairs, antibate board, epoxy resin, ABS, PP, PE and other carbpn mixed compounds.
*Decorate industry: acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Samples show:
Packaging & Shipping :
Certifications
Our compamy have passed the CE and FDA certificate. If you need,please feel free tell me
Company Information:
Jinan Dwin Technology Co., Ltd. is a high-tech enterprise that is engaged in the research, manufacture and sale of laser machines, laser engraving and cutting
machine, laser marking machine ,Advertisement CNC routers, marble CNC routers and CNC woodworking machines. Dwin has gained CE, FDA and ISO certifications.
Our company has successfully produced DW series of products which enjoy a good reputation. Excellent quality and fast service make our products spread over
Europe, America, the Middle East and Southeast Asia.
Dwin machines are widely used in garment cutting, craftwork, rubber plate, package printing, leather cutting, sign marking, wood furniture, construction, decoration,
stone engraving and mould making. Dwin CNC machines have greatly improved the efficiency of relevant industries and the quality of relevant products. Dwin constantly
pursues the philosophy of "technical innovation, cooperation and all win", together with you for a brilliant future. We are sincerely looking forward to continuous
instruction and supported from our clients.
Our Services:
1.One year quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
