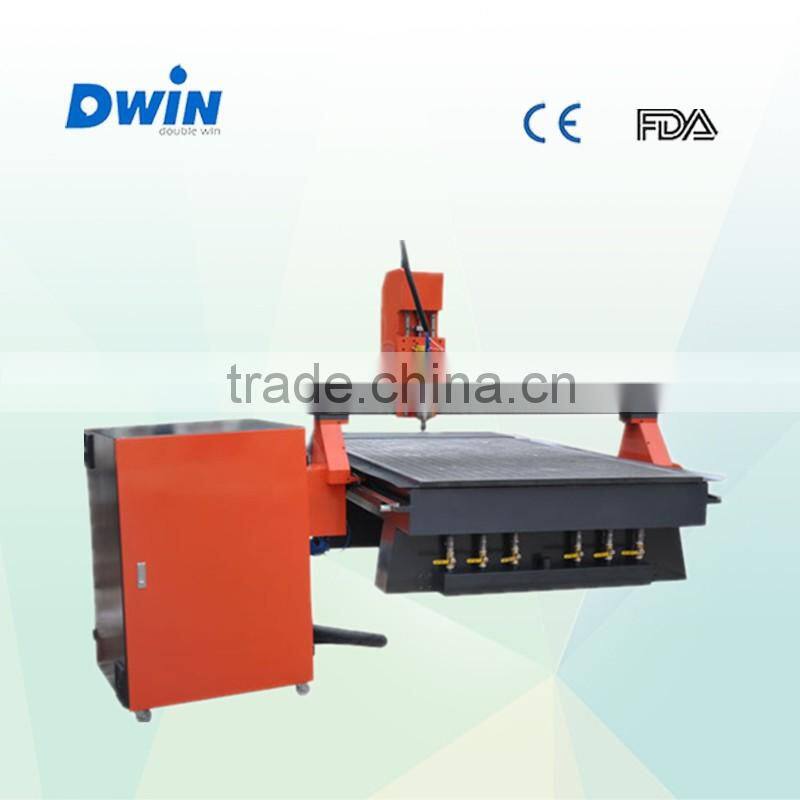

low cost 2.2kw spindle cnc woodworking machine for wood and door
Features:
*Our low cost 2.2kw spindle cnc woodworking machine for wood and door adopt imported square guide rail, double row slide block and the imported ball screw makes the machine working steadily, high precision and long life time.
*With advanced DSP system, operated with the USB handle, convenient operation, humanization design.
*Compatible with Type3/artcam/castmate/proe/coreldraw/wentai and other CAD/CAM software.
*Vacuum table with six vacuum zones, which can absorb different size materials. No oil vacuum pump, high suction, more convenient, stable capability.
* This low cost 2.2kw spindle cnc woodworking machine for wood and door adopt high speed stepper motor and drivers and two motors for the Y axis, max speed can reach to 35m/min, auto aligning system.
Machine detail display:
Technical Parameter:
| Model | DW1530 |
| Working size | 1500*3000mm |
| Z working travel | 120-450mm |
| Working precision | ±0.04mm |
| Table structure | Vacuum table |
| Location precision | ±0.05mm |
| Power consumable | 3KW |
| Max idle speed | 50000mm/min |
| Max working speed | 25000mm/min |
| Spindle power | 2.2KW-9KW or HSD Brand for choice |
| Spindle rotate speed | 0-24000r/min |
| Working mode | Step motor, option servo motor |
| Working Voltage | AC380V/50HZ, AC380V/60HZ |
| Run command | G code*.u00*.mmg*.plt |
Applicable material:
MDF, wooden plate, veneer, wood, application, PVC
Applicable industry:
Woodworking industry, 3D wave board processing, Cupboard doors, craft wooden doors, unpatinting door, screen, crafts windows, milling and engrving on the furniture.
Samples show:
Packaging & Shipping
Certifications
Our compamy have passed the CE and FDA certificate. If you need,please feel free tell me
Company Information:
Jinan Dwin Technology Co., Ltd. is a high-tech enterprise that is engaged in the research, manufacture and sale of laser machines, laser engraving and cutting
machine, laser marking machine ,Advertisement CNC routers, marble CNC routers and CNC woodworking machines. Dwin has gained CE, FDA and ISO certifications.
Our company has successfully produced DW series of products which enjoy a good reputation. Excellent quality and fast service make our products spread over
Europe, America, the Middle East and Southeast Asia.
Dwin machines are widely used in garment cutting, craftwork, rubber plate, package printing, leather cutting, sign marking, wood furniture, construction, decoration,
stone engraving and mould making. Dwin CNC machines have greatly improved the efficiency of relevant industries and the quality of relevant products. Dwin constantly
pursues the philosophy of "technical innovation, cooperation and all win", together with you for a brilliant future. We are sincerely looking forward to continuous
instruction and supported from our clients.
Our Services:
1.One year quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
