HD180 series long loop Steamer
1. Suitable fabric: Steaming fixation and drying of natural fiber, synthetic fiber, chemical fiber and blended woven, knitted and non-woven fabric, gram weight of each square meter : 56~450g/m2
2. Suitable dye: Direct dye, reduction dye, active dye, disperse dye, acid sundries, metal chrome dye, coating and salt tsuen dye, etc.
3. Cloth guide roller width series: 1800-3800mm (200mm staged increase)
4. Fabric width series: (single width or double width) 1600-3600mm
5. Fabric content: 140, 210, 280, 350, 420, 490m(content of single width, single layer)
6. Loop length: 1.25~2.5m, regulating ratio 1:2
7. Max fabric speed: 40, 50, 80 or 100m/min.
8. High temperature heating source:
• Indirect heating: Light diesel oil, middle light diesel, heavy oil, natural gas, city gas, superheated steam.
• Direct heating: Electricity.
9. Temperature and steaming medium:
• Saturated steam: 100℃
• Low temperature superheated steam: >100℃~115℃
• High temperature superheated steam: 150℃~185℃ and above 185℃
• Dry & hot air: 150℃~185℃ and above 185℃
10. Min. steam pressure: 0.3 MPQ
11. Max. allowable temperature of condensate water: 60℃
12. Transmission method: frequency conversion motor.
13. Fabric in & out method:
Fabric in & out device placed in front and back sides or the same sides. Applicable for single width,single layer,single width,double layers,double width double layers,woven fabric and knitted fabric. No Sublimation and pollution when absorbing dye,single width double layers and double width double layers will achieve only knitted and woven fabric without crimping.

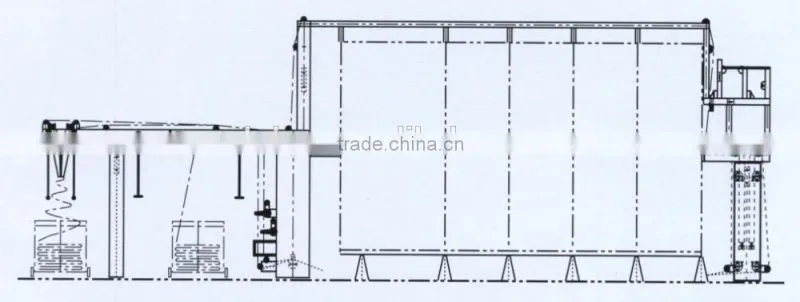

Single layer—single width same side fabric in & out

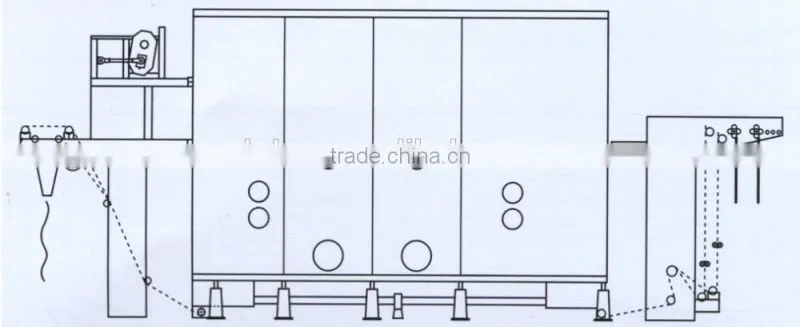

Single layer—double width same side fabric in & out

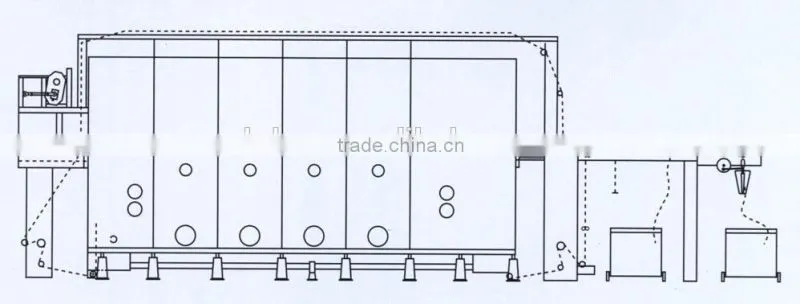

Single layer—double width different sides fabric in & out
