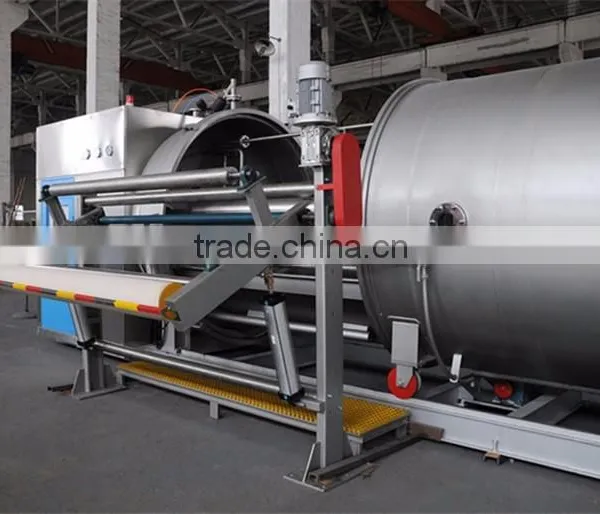

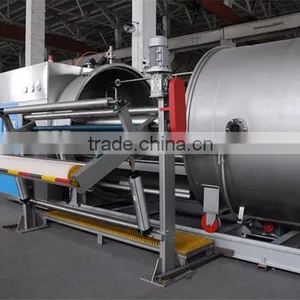

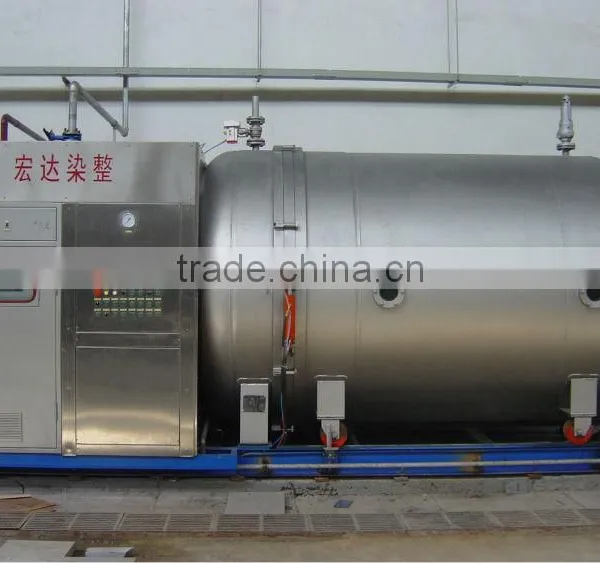

HD618-1200-2000 High temperature high pressure Push type dye jig
Suitable fabric: Viscose, nylon, elastic fabric, silk, cotton, polyester, hemp, blended faric.
Control function:
1. The whole machine is dual-inverter automatic control system.
2. Constant tension, constant line speed setting
3. Function of manual, automatic, speed up and speed cut
4. Automatic turn around, automatic record the fabric lines, automatic stop the machine, automatic swing if lines full.
5. Automatic charging system, automatic quantitative charging
6. Level control system, dye liquor automatic control
7. Temperature automatic control system, dye liquor circulated by overall circulating pump, heating and cooling dye liquor through heat exchanger, technological operation.

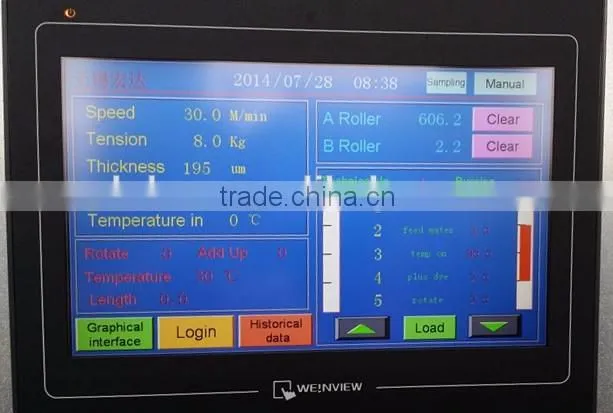

8. Operation screen can be set through programming, storing program, automatic identification, automatic alarm.
Technical Specifications:
Rolling diameter: |
φ1200mm |
Roller width: |
2000mm |
Efficient width: |
1800mm |
Speed: |
2~120m/min |
Tension range: |
0~60KG |
Temperature control range: |
0-135 Degree |
Rolling roller diameter: |
φ350mm |
Motor power of main roller |
2 sets are 7.5KW |

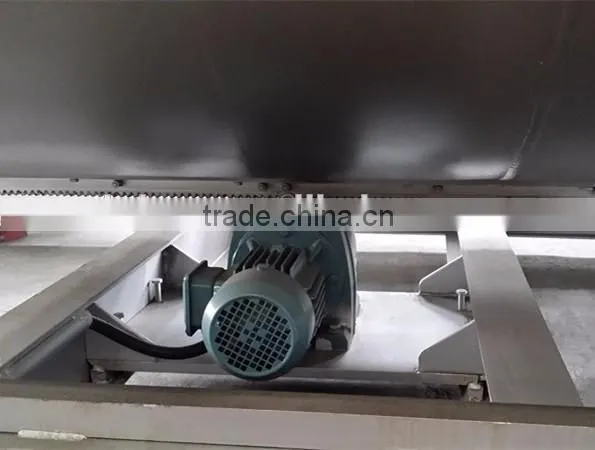

Tank body mobile motor power |
0.75KW |
Motor power of circulating pump |
2.2KW |
