hand press brake manual folder machine
1.INTRODUCE
Folding machine is widely used for bending plate sheet.
This machine have simple structure,anybody can operate it easily.It is always suit for processing on construction site.
This machine combine with our Lock forming machine,TDF flange forming machine,Bending grooving machine and Shearing machine can be an simple air duct production line.
Our machine advantage:
1.Our all type is more light than the old type,easing to move on the construction site
2.Our pneumatic folding machine have the new structure,it have stronger power than before
3.The machine length can de custom made
2.PARAMETER
Hand folding machine
| Model |
Max.thickness (mm) |
Max.width (mm) |
Bending angle range |
| S-2.0x1300 | 2.0 | 1300 | 60° - 180° |
| S-1.2x2000 | 1.2 | 2000 | 60° - 180° |
| TDF-1.5x1300 | 1.5 | 1300 | 60° - 180° |
| TDF-1.2x2000 | 1.2 | 2000 | 60° - 180° |
Pneumatic folding machine
| Model |
Max.thickness (mm) |
Max.width (mm) |
Bending angle range |
| QDS-1.5x1300 | 1.5 | 1300 | 90° |
| QDS-1.2x2000 | 1.2 | 2000 | 90° |
| QDF-1.5x1300 | 1.5 | 1300 | 90° |
| QDF-1.2x2000 | 1.2 | 2000 | 90° |
The machine length can be custom made

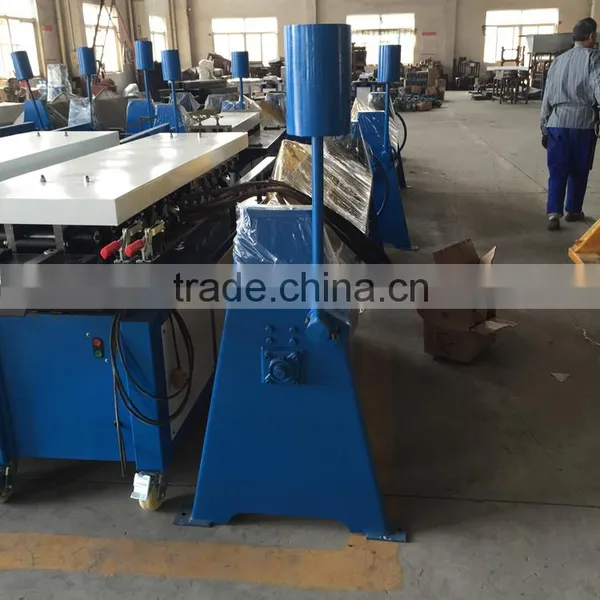

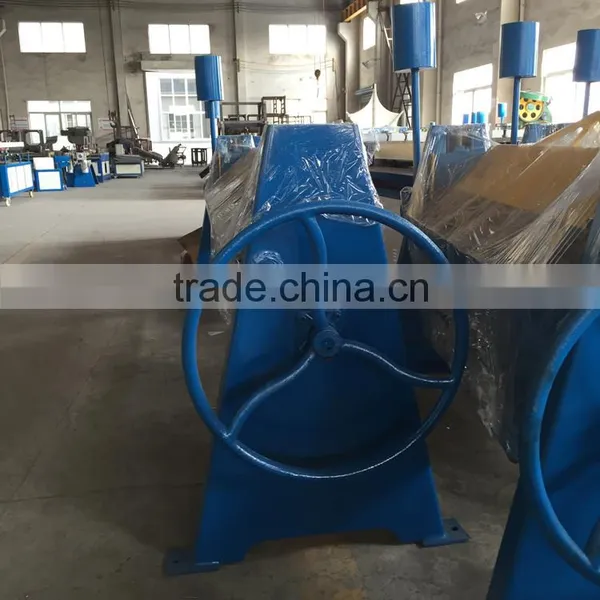

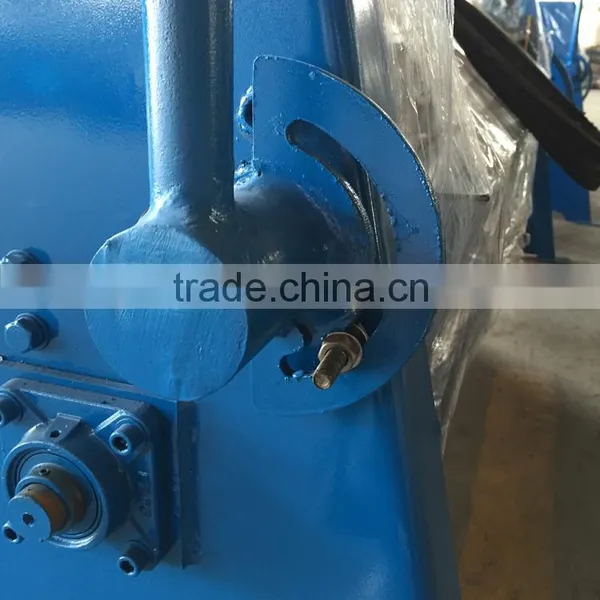

3.PRODUCTS SHOW
S series hand folding machine
TDF series hand folding machine
1.Half teeth TDF hand fold machine
2.Full teeth TDF hand folding machine
Pneumatic QDS series folding machine
Pneumatic QDF series folding machine
5.SQUARE DUCT PRODUCTION PROCESS
4.FACTORY SHOW
