Specifications
wifi home control amplifier system audio amplifier chip1.Customize design
2.OEM welcome
3.CCC CE certificate
4.1 year warranty
wifi home control amplifier system audio amplifier chip

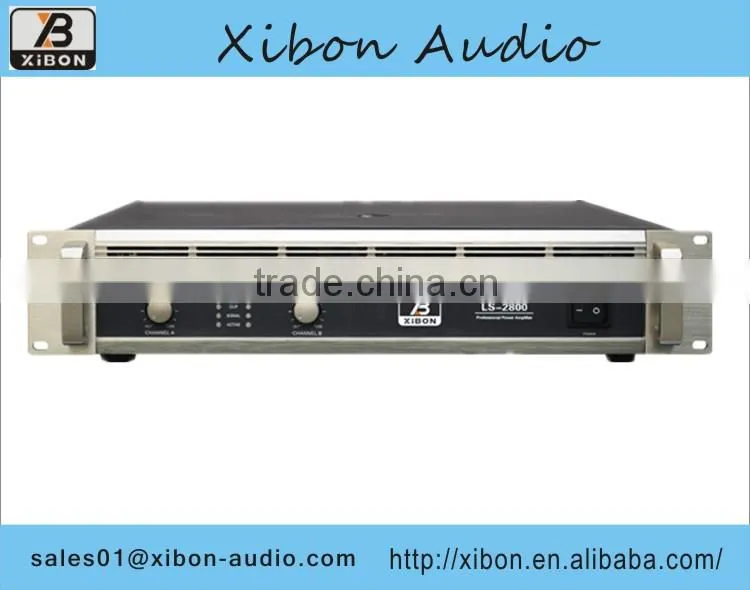

The whole appearance LS a dignified and stable reality series. Fine appearance, highIy metallic and technological image of the chassis coated with black textured filling Ice elegant, 2U and 3U weight, high strength modular construction machine vibration and drop the average, full-featured intelligent protection for fixed installation and mobile performance. High efficiency toroidal transformer power supply, large high-energy linear power supply device. For stereo or bridged mode, KM 2Ω Full range of amplifier can drive the load. Dual variable speed cooling fan, high efficiency rate of the cooling channel back to front. HI-FI machine grade material used and the topic level components, carefully selected production. Sound structured, clear air, clean, solid driving bass speakers.
wifi home control amplifier system audio amplifier chip
Technical Parameters:
| Technical Specifications | ||||||
| Model | LS-2400 | LS-2600 | LS-2800 | LS-3200 | LS-3600 | |
| Stere Power | 8Ω | 400W×2 | 600W×2 | 800W×2 | 1300W×2 | 1500W×2 |
| 1KHz0.1%THD | 4Ω | 600W×2 | 850W×2 | 1100W×2 | 1500W×2 | 1800W×2 |
| 2Ω | 800W×2 | 1050W×2 | 1300W×2 | 1800W×2 | 2200W×2 | |
| Bridge Mono Power | 8Ω | 1100W | 1600W | 2200W | 2500W | 3100W |
| 1KHz0.1%THD | 4Ω | 1600W | 2000W | 2700W | 3000W | 3200W |
| Signal to Noice | >94dB | >94dB | >94dB | >97dB | >97dB | |
| Slew Rate | 40v/uS | 40v/uS | 40v/uS | 45v/uS | 45v/uS | |
| Damping Factor | 250:1 | 250:1 | 250:1 | 400:1 | 400:1 | |
| Frequency Response | +/-0.1dB,20Hz-20KHz | |||||
| THD | ≤0.03%Rated Power @ 8Ω 1KHz | |||||
| TMD | ≤0.03%Rated Power @ 8W | |||||
| Input Sensitivity | ±1dB(1.23V) | |||||
| Input Impedance | 10KΩ/20KΩ ohms unbalanced or balanced | |||||
| Crosstalk | ≤-75dB | |||||
| LED Indicator | Signal, Protect, Dctive, Limiting | |||||
| Protection | AC Fuse, DC, Short Circuit, Overheat, Overload, Softstart | |||||
| Height | 2U | 2U | 2U | 3U | 3U | |
| Weight | 22Kg | 23.5Kg | 28Kg | 38Kg | 39Kg | |
| Dimensions(mm) | 483W×460D×88H | 483W×510D×132H |
||||
wifi home control amplifier system audio amplifier chip
wifi home control amplifier system audio amplifier chip
wifi home control amplifier system audio amplifier chip
Home wifi home control amplifier system audio amplifier chip
Founded in 2003, Foshan Nanhai XIBON Audio Equipment Factory is a company specializing in research and development, manufacture of professional stage power amplifier, speakers and other audio equipment. All products have passed China's compulsory product certification CCC certificates. Based on the principle of "Quality and Integrity Come First", the company's products not only occupy a certain market share for domestic audio, but also export to more than 20 countries and regions in the global market, with high international presence.
Since the company was founded, we gather a large number of well-known experts in the research and development of audio engineering, audio technology, and process design, increasingly applying international latest technologies and design concepts to the products. The factory always adheres to the idea of sustainable development and innovation. After nearly 10 years of development and growth, the factory has modernized its own manufacturing base. We have advanced automatic AI production equipment for manufacture, a fairly strong sales team for sales system, and perfect after-sales service for customers, winning their trust.
Business Process:
Inquiry ----> Drawing ----> Mould Confirmation ----> Sample Confirmation ----> Placing Order ----> Delivery
Testprogram:
3 steps test program to guarantee the quality of the product Strictly:
Inspection of raw materials+Production testing+Finished product Testing
Terms & Conditions of Trade:
1) Money Transfer; PayPal; Money Gram; Bank Transfer; Escrow; Way of payment T/T or Western Union.
2) Order's payment: T/T 30% deposit, T/T balance before delivery
3) Delivery Time: 15 to 30 days after sample confirmed & down payment.
Professional Audio Peripheral Equipment / Professional Speaker / Professional Active Speaker
(1). OEM
(2). Customize design;
(3). Top perfomance power amplifier;
(4). Mature export market all over the world
(5). Excellent performance, good quality and competitive price

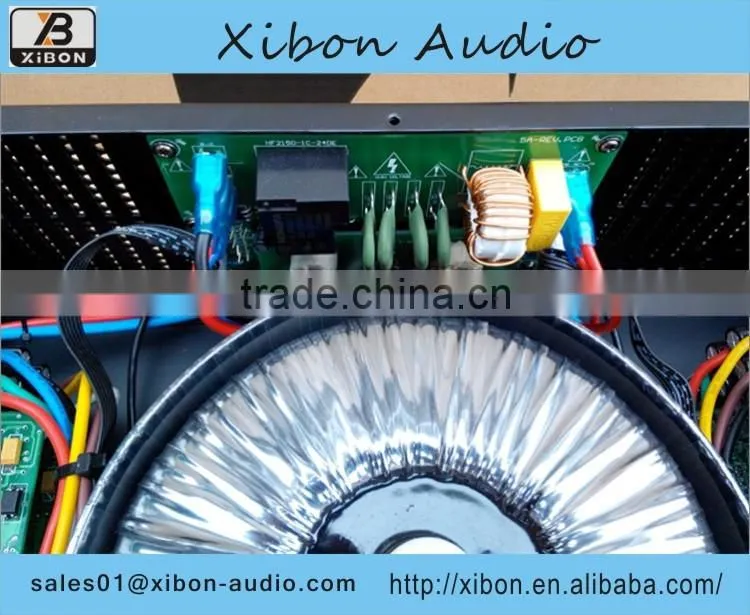

(6). High efficiency toroidal transformer power supply, large high-energy linear power supply device.
(7). HI-FI machine grade material used and the topic level components, carefully selected production.
Sound structured, clear air, clean, solid driving bass speakers.
Package
5steps of packaging process, protected products from being damaged in the long distance transport:
Transparent film+ Color box+ Thick carton+ Environmental Woven bag+ Packing belt
