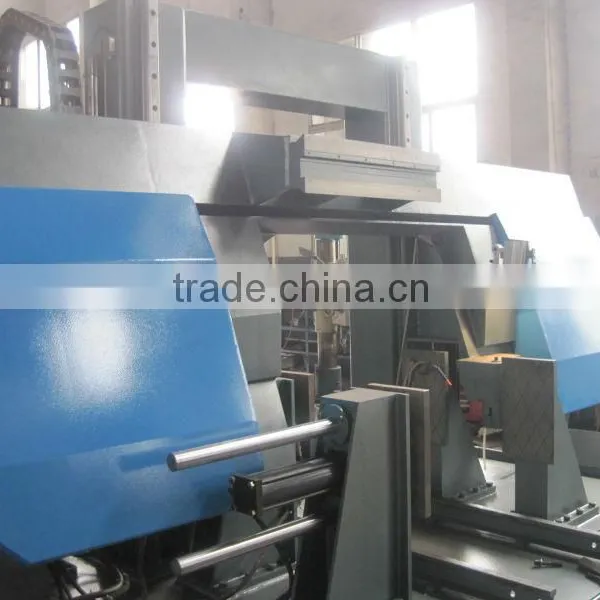

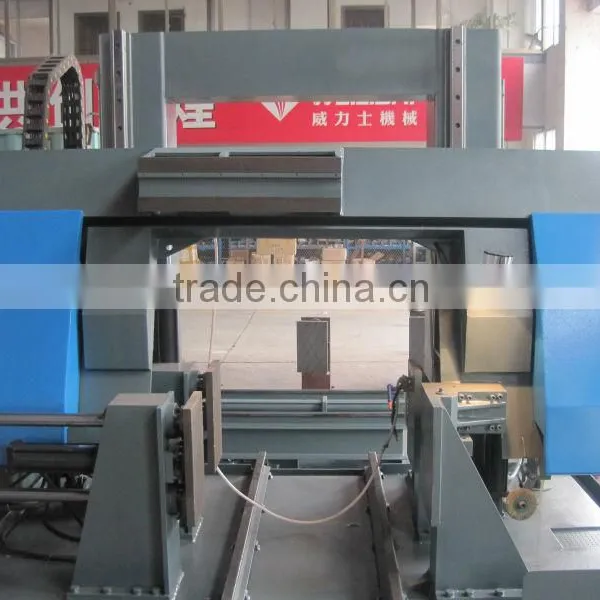

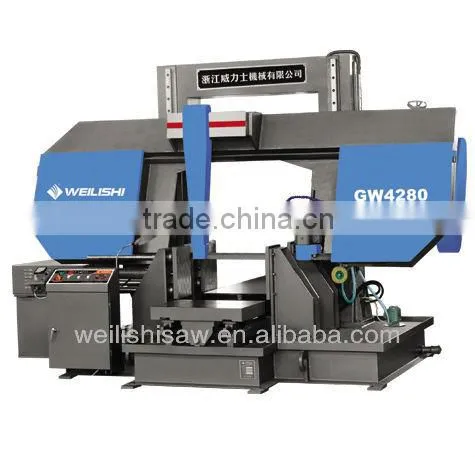

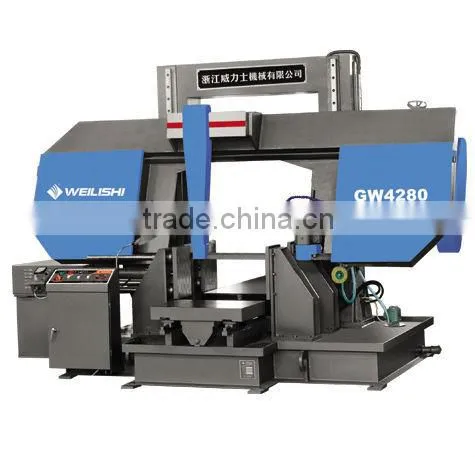

Band Saw GW4280/100(H-800HAll)
US$ 1,000 - 30,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
WEILISHI
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Saw Machine Large Cutting Range GW42100/130(H-1310HAll)US$ 1,000 - 30,000MOQ: 1 Piece -
Portal Band Sawing Machine GW42120(H-1200)US$ 1,000 - 30,000MOQ: 1 Piece
-
Band Saw GV51100-60X300US$ 1,000 - 30,000MOQ: 1 Piece
-
Vertical Band Sawing Machine V360US$ 1,000 - 30,000MOQ: 1 Piece
-
Vertical Band Sawing Machine GV53 Series (GV200/200-4M)US$ 1,000 - 300,000MOQ: 1 Piece
Condition
New
Place of Origin
Zhejiang, China
Brand Name
WEILISHI
Model Number
H-800
Voltage
380V
Rated Power
7.5KW
Dimension(L*W*H)
3930*1890*2530
Weight
6000KGS
Certification
CE,ISO
Warranty
ONE YEAR
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Band saw GW4280/100(H-800HAll):1.Double column,double oil cylinder.
2.The cutting speed controlled by the inverter.
Band saw GW4280/100:
| Item NO: | GW4280/100(H-800HAll) | |
| Maximum Cutting Capacity | Round | 800mm |
| Square | 800*1000mm | |
| Rectangle | 800*1000mm | |
| Saw blade | Speed | stepless |
| Size | 7820*67*1.6mm | |
| Tension | hydraulic | |
| Guide | TINGS CARBIDE | |
| Cleaning | brush | |
| Motor Output | Saw blade | 7.5KW |
| Hydraulic | 2.2KW | |
| Coolant | 3.75KW | |
| Tank Capacity | Hydraulic oil | 150L |
| Coolant | 170L | |
| Feeding | Mode | auto |
| Length | auto | |
| Size | 2020*1130*550mm | |
| G.W | ||
| Vise Control | hydraulic | |
| N.W | 6300KGS | |
| Size(L*W*H) | 3550*1650*2450mm | |
| Standard Accessories | Bi-metal saw blades,tool box,manual instruction,feeding table | |
