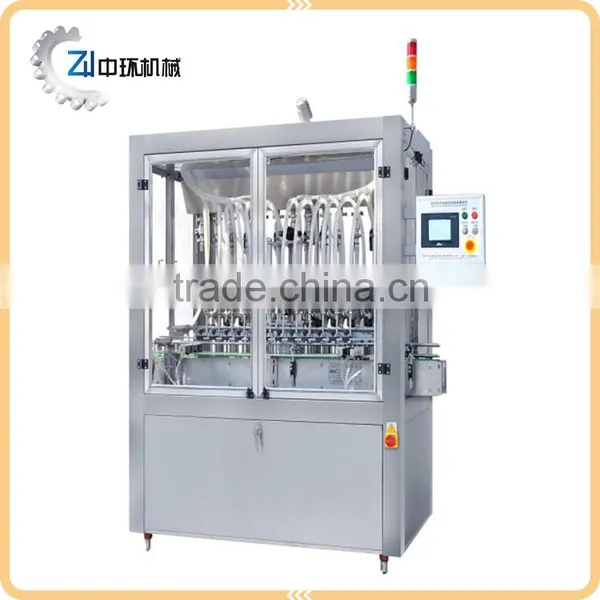

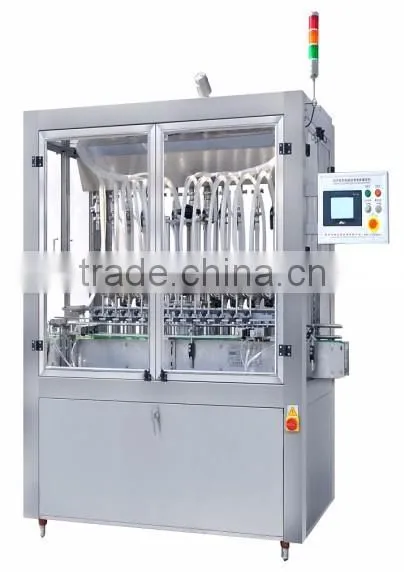

ZH-Z-12D PLC Controlled Piston Filling Machine

ZH-Z-12D PLC Controlled Piston Filling Machine photo-1
US$ 5,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Medical
Packaging Type:
Bags, Barrel, Bottles, Cans, Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Chemical, Commodity, Food, Medical
Packaging Type Bags, Barrel, Bottles, Cans, Cartons
Packaging Material Glass, Metal, Paper, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V 50HZ
Power 1.5kw
Place of Origin Zhejiang, China
Brand Name Zhonghuan
Model Number ZH-Z-12D
Dimension(L*W*H) 2000*1100*2200mm
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

ZH-Z-12D PLC Controlled Piston Filling Machine

Product Description



 ZH-Z-12D PLC Controlled Piston Filling Machine

ZH-Z-12D PLC Controlled Piston Filling Machine




ZH-Z-12DPLC Controlled Piston Filling Machine



 This is our newly developed filling machine, the whole parameters have matched the international advanced level, especially, the partial have exceeded the relative line aboard, also certified by the world famous chemical magnate.



 Feature:
This is an inline piston filling machine for cream and liquid. PLC and touch screen

control panel are used to control material filling.
Accurate measuring, advanced structure, stable operating, low noise, large adjusting range, and fast filling speed.
It is also suitable for materials that are easily volatilizing, easily crystallizing or easily bubbling; strong corrosive liquid for rubber, plastic, high viscous liquid, and semi-flow liquid.
Adjust and meter value in the control panel of touch screen, meanwhile, each filling head also can be adjusted.
The external surface of this machine is made of excellent stainless steel.
Good appearance, apply to GMP standard.



Technical Parameter



mainunit dimension (L×W×H) : 2000mmX1100mmX2200mm



filling heads : 12



bottle  size Diameter:φ40mm~φ100mm   High:80mm~300mm



bottle mouth size:≥φ18mm



filling volume: 50ml~1000ml



production capacity: ≤6000 p/h



error range: 50ml-100ml≤±1ml 100ml~500ml±0.5% 500ml~1000ml±0.3%



power supply: 220V;50HZ



Power: 1.5kw



pneumatic (air-operated)source: 0.55Mpa~0.65Mpa
