Home > Products > Fluid Filling Machine > GZD100 Semi-auto Digital Liquid Filling Machine

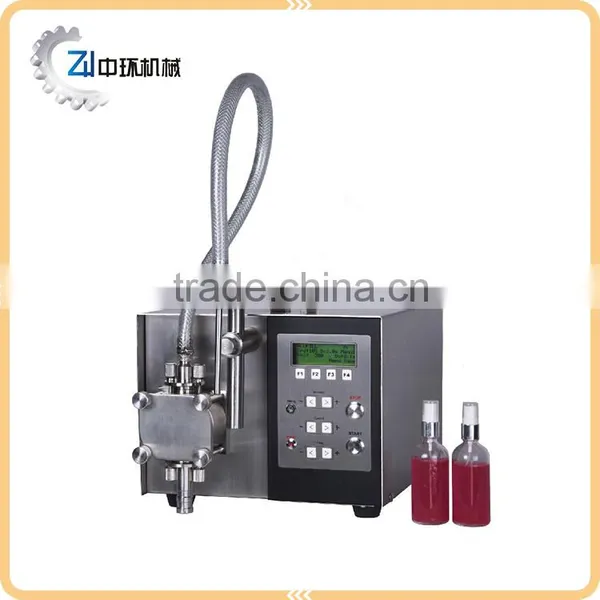

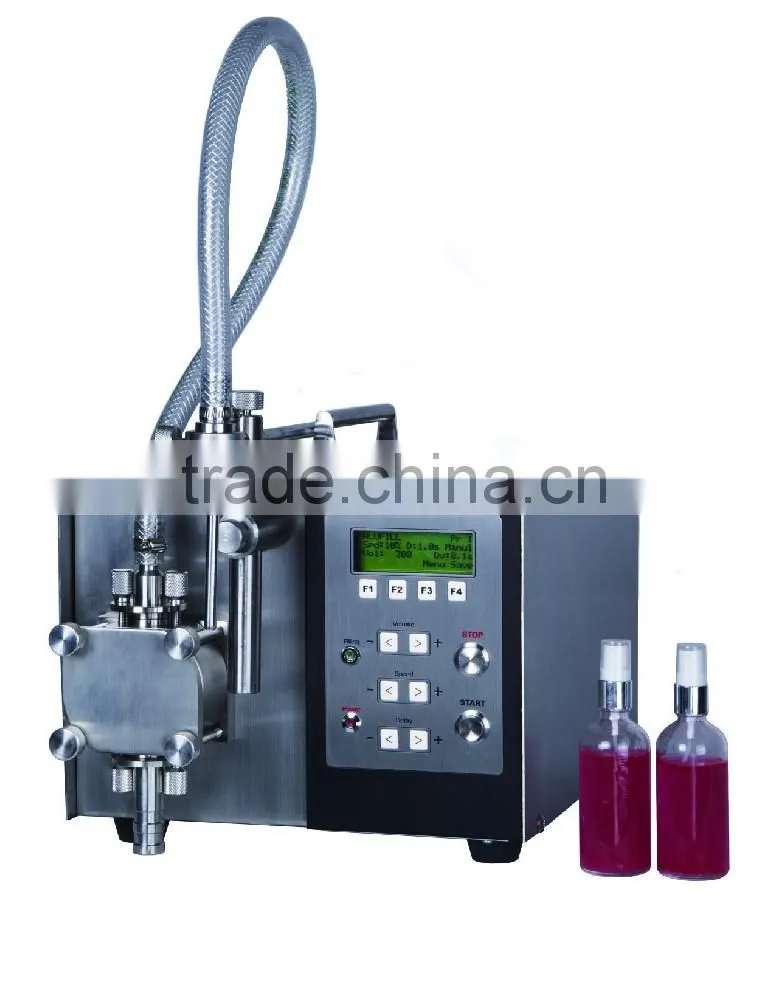

GZD100 Semi-auto Digital Liquid Filling Machine
- 50 Set / Sets per Month
- SHANGHAI
You May Like
-
GZD100-2/4/6/8 Automatic Gear Pump Filling Machine
-
ZH6F-6N Straight line type autoamtic beer filling machine
-
Automatic ZH-CZ-4 Mineral Water e-liquid Filling sealing Machine
-
Wholesale Pharmaceutical Liquid Filling Machine
-
Competitive Price Soda Water Filling Machine
-
Full-automatic detergent straight line type filling machine ZH-FF
Product Details
| Condition | New | Application | Beverage, Chemical, Commodity, Food, Medical | |
| Packaging Type | Bottles | Packaging Material | Wood | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Voltage | 1P 220V 50-60Hz 400W | Power | 400W | |
| Place of Origin | Zhejiang, China | Brand Name | ZHONGHUAN | |
| Model Number | GZD100 | Dimension(L*W*H) | 310*480*310mm | |
| Weight | 18Kg | Certification | ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
GZD100 Digital Gear Pump Liquid Filling Machine
² The Digi-Fil uses a gear pump concept as a metering device to fill correct amounts of gels or liquids into containers.
² The volume, speed the time between of filling can be designed.
² Each filling can be fast first and slow later, bubble cam be eliminated.
² Human interface is achieved using a combined keypad and LCD display configuration.
² 20 sizes data can be store.
² Pump unit easily dismantled for cleaning.
² Can be extend to use in conveyor on line.
Main Technical Specification
Volume | 10ml-lnfinity |
Accuracy | 0.5-1% |
Filling Speed | 100ml 24P/min 300ml 16P/min 1000ml 10P/min |
Supply Power | 1P 220V 50-60Hz 400W |
Size | 310×480×310mm |
Net Weight | 18Kg |
