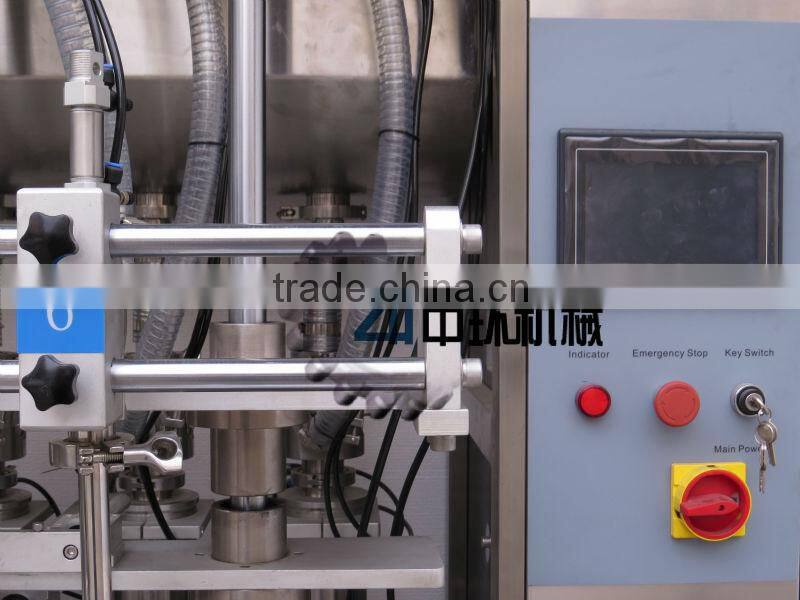

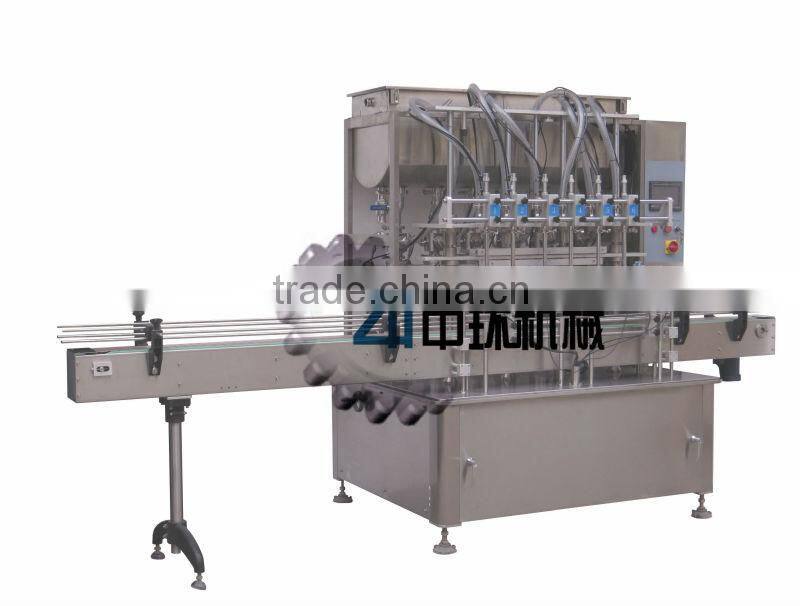

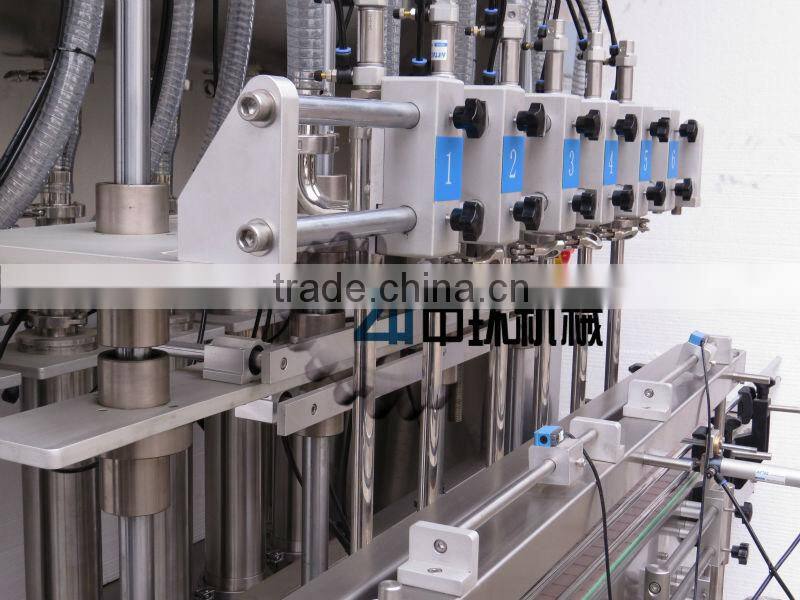

ZH6F-6N Full-automatic straight line type automatic soy sauce filling machine
The series injection type/normal pressure gravity type dual-use filling machine is a high-tech product researched and developed by our company. It is suitable for products of various viscosity such as water injection, semi-fluid and ointment etc. It is widely applied for filling of products in such industries as food, cosmetics, medicine, grease, daily chemical industry, detergent, pesticide and chemical industry etc. By adopting straight line filling mode, it can be used to fill solutions of different types without the need of adding any spare parts.
Feature:
The series machine is compact and reasonable in design and beautiful and decent in appearance.
It is made of electrical components of internationally famous brands. The main actuating cylinder adopts Taiwan AIETAC or Germany FESTO dual actuating cylinder and magnetic switch. Japan Mitsubishi PLC computer, Omron phototube and touch screen made in Taiwan, all of which have guaranteed the excellent quality and consistently stable performance of the machine.
The machine can be maintained conveniently. It can be easily assembled, disassembled and cleaned without any tools. The adjustment is convenient. For the measurement adjustment, firstly adjust at large scale to be close to the measurement and then carry out fine adjustment. It can be realized that no filling in case of no bottle or insufficient bottle and accurate measurement.
The filling system of the machine adopts ferrule type rapid installation sanitary connector. The whole cylinder can be easily assembled, disassembled and cleaned from top to bottom without any tools. The structure is simple in design and convenient in operation and maintenance.
Technical parameter:
Model: ZH6F-6N (6head ,8head ,10head )
Filling speed: 40-50b/min(250ML/6head )
Filling precision: ±1%
Cylinder specification: 25-250ML. 50-500ML.100-1000ML.250-2500ML
Working pressure: 0.4-0.8mpa
N.W: 950KG
Dimension: 2000*810*2200MM
