Fully-automatic Hard Capsule Filling Machine
US$ 10,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Medical
Packaging Type:
Capsule
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Produvt Automatic Small Bottle Washing Filling and Capping MachineZHCXGF6000US$ 1 - 10,000MOQ: 1 Set -
Automatic Liquid Three In One Filling MachineNegotiableMOQ: 1 Set
-
Vertical Automatic Bottle Unscramble UZL200NegotiableMOQ: 1 Set
-
ZH4-1 Automatic Liquid Filling And Capping MachineUS$ 23,500 - 28,000MOQ: 1 Set
-
12 Heads Full-automatic Anticorrosive Filling MachineUS$ 18,000 - 29,000MOQ: 1 Set
Condition
New
Application
Medical
Packaging Type
Capsule
Packaging Material
Wood
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220V/380V
Power
3kw
Place of Origin
Zhejiang, China
Brand Name
ZHONGHUAN
Model Number
NJP800
Dimension(L*W*H)
970*820*1900mm
Weight
900KG
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas

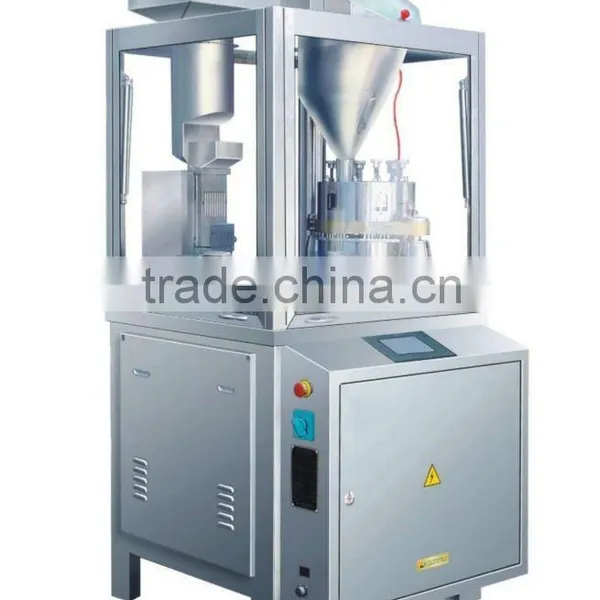

NJP-800·1000·1200D Fully-automatic Hard Capsule Filling machine
NJP-800-1200D Hard Capsule Filling machine adopts the PLC controlling system with the Human-Machine Interface. When the machine occurs malfunction or is lack of material, it can automatically alarm and stop .The alarm will stop when the malfunctions are eliminated. It has the functions of password setup, Touch Screen Display, automatically setting the parameter, printing data and reset etc. The wearing parts such as ecam and axis are imported.
- The Hard Capsule Filling machine ’s outline is welldone with gorgeous craft. It is easy to operate and to use.
- The stowage seat and measuring plate are integrated together to avoid displacement of measuring plate and stowage rod and to prevent the friction between the stowage rod and measuring plate. This design improves the filling accuracy and extends using life.
- Inferior capsules are rejected automatically .The medicine in the capsule can be recycled and reused to increase economical benefit.
- The machine is easy to dismantle, to clearn and to interchange different moulds. Furthermore, the moulds for Model 800,1000 and 1200 can be interchanged in one same machine to meet different demands for the production capability.
- Dust collector and vacuum pipe and air pipe are installed in the inner machine to avoid the air pipe becoming hard, breaking and leaking etc phenomenon. It is more convenient to clean the platform. Furthermore, it accords with GMP requirement.
- The caps of stowage are made of stainless steel to replace the plastic caps to avoid breaking and leaking. There are little screws and caps on the platform to make the surface neatly and good-look.
Technical Parameter( Hard Capsule Filling machine)
Model |
NJP800C |
NJP1000C |
NJP1200C |
Output |
800(Pics/M) |
1000(Pics/M) |
1200 (Pics/M) |
No.of Die holes |
6 |
8 |
9 |
No. of the hard capsule |
NO.00—5 |
||
Filling percentage |
>98% |
||
Power supply |
380V 50Hz |
||
power |
3 +(Dust collector2.2)KW |
||
|
Vaccum degree
|
0.02—0.06Mpa |
||
Noise index |
<80dB |
||
Dust collector |
700 m³/H 2×105pa |
||
Overall dimension |
970×820×1900mm |
||
Net weight |
900kg |
||
