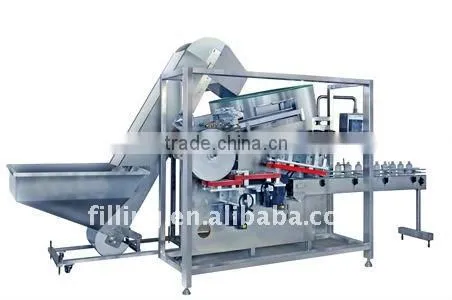

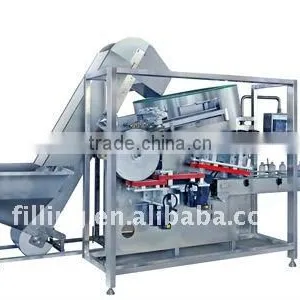

ZHLP-6A Fully Automatic Bottle Unscrambler

ZHLP-6A Fully Automatic Bottle Unscrambler photo-1
US$ 32,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Commodity
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Commodity
Packaging Type Bottles
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage AC380v; 50Hz
Power 2.2kw
Place of Origin Zhejiang, China
Brand Name zhonghuan
Model Number ZHLP-6A
Dimension(L*W*H) 4670mm*2050mm*2500mm
Weight 1500kg
Certification ISO9001

ZHLP-6A Fully Automatic Bottle Unscrambler

1. It consists of bottle feeder, host machine and conveying motor, PLC control system, touch screen and drive devices.
2. This machine applies to foodstuff, pharmacy, cosmetic, chemical and pesticide industries.
3. Packing specification: ≤ 1 L
4. When caps are changed, it’s easy to adjust the machine.

Major Characteristics;
The machine is consisting of bottle feeder, host machine and conveying motor, PLC control system combines all the drive devices together. The set figures can be alternated via touch screen panel to meet your different requirements. It is only necessary to change rotary plate in the bottle sorting barrel targeting different materials, and other parts can be freely adjusted. The machine is mainly made of stainless steel 304 and aluminum alloy, strictly based on GMP. With elegant appearance and high efficiency, it is adapted to different conditions, Drive parts of this machine are protected by guard cover, more safe and environmental.
Main Performance Parameter;
1. Production capacity
Bottle Volume; Speed (bottles/hour)
50ml~200ml ≤9000
800ml ≤6000
1000ml 4800
2. Diameter of the bottle;φ30mm~φ100mm
3. Bottle Height;100~250mm
4. Power supply;AC380v; 50Hz
5. Main Power;2.2kw
6. External Dimension (L×W×H); 4670mm×2050mm×2500mm
7. Weight; about 1500kg
