48V 100AH With Monitoring System LiFePO4 Lithium Battery for Solar Energy

48V 100AH With Monitoring System LiFePO4 Lithium Battery for Solar Energy thumbnail-1
48V 100AH With Monitoring System LiFePO4 Lithium Battery for Solar Energy photo-1
US$ 1 - 5,000 MOQ: 1 Pack
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
UFO
Model Number:
LD-B-48100P
Contact Supplier Request Quote Chat Now
Shenzhen UFO Source Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name UFO
Model Number LD-B-48100P
Composed Type Other
Type Li-Ion
Components Other, LiFePO4
Size 442mm*385mm*220.1mm
Voltage 4V
Weight 50.5Kg
Nominal Capacity 100AH
Application Telecommunications

Specifications

-48V 100AH
-Monitoring system
-Connected in parallel to extend capacity
-Fast charging/discharging
-2000 cycles

LiFePO4 Lithium Battery Pack

Due to the demand for energy saving strategies, LinkData Technologies delivers a full range of battery power systems with multiple nominal voltages (12V/24V/48V/240V/etc.). This product is small in size and light in weight, it has longer cycle life, temperature adaptability is stronger, and energy storage is more efficient. With the accurate and reliable battery management system (BMS), our lithium battery power system is a better solution for achieving high efficiency and reliability. After years of practice, we have the most extensive experience in backup power supply in the industry, and we will continue to provide the best battery products.



Features

  • Energy density is high. The volume and weight of lithium battery is 1/3 to 1/4 of the traditional lead acid battery with the same capacity.
  • Energy conversion rate is 15% higher than that of a traditional lead acid battery, the advantage of energy saving is obvious.
  • Self-discharge rate < 2% per month.
  • Broad temperature adaptability. Products perform well at a temperature of -20°C to 60°C, without air conditioning system.
  • Cycle durability for a single cell is 2000 cycles, which is 3 to 4 times more than the cycle durability of a traditional lead acid battery.
  • Higher discharge rate, faster charging and discharging. When there is a need for backup power supply for a period of 10 hours or less, we could reduce up to 50% of the capacity configuration, comparing to lead acid battery.
  • High security. Our lithium battery is safe, electrochemical materials are stable, no fire or explosion under extreme conditions such as high temperature, short circuit, drop impact, piercing, etc.
  • In addition to all the features of B series, P series is capable of monitoring and reporting on battery performance, as well as remote control and connecting battery in parallel to extend the battery capacity



MODEL

LD-B-4810P

LD-B-4820P

LD-B-4830P

LD-B-4840P

LD-B-4850P

LD-B-48100P

Nominal Votage

48V

Capacity

10A

20A

30A

40A

50A

100A

Combination method

15/16 series

Voltage at end of Discharge

39-40.5V(15 series)

41.6-43.2V(16 series)

Charging voltage

53.2-54V(15 series)

56.8-57.6V(16 series)

Internal Impedance

≤180mΩ

≤150 mΩ

≤135mΩ

≤120mΩ

≤110mΩ

≤100mΩ

Standard Charge

Constant Current: 2A

Constant Current: 4A

Constant Current: 6A

Constant Current:8A

Constant Current: 10A

Constant Current: 20A

Constant Voltage: see Charging Voltage

0.01CA cut-off

Standard Discharge

Constant current:2A

Constant current:4A

Constant current:6A

Constant current:8A

Constant current:10A

Constant current:20A

end voltage: see Voltage at end of Discharge

Maximum Continuous Charge Current

10A

20A

25A

25A

25A/50A

25A/50A

Maximum Continuous Discharge Current

15A

35A

35A

35A

35A/50A

35A/50A

Operation Temperature Range

Charge: 0~45°C

Discharge: -20~60°C

Storage Temperature Range

Less than 12 months : -20~25°C

Less than 12 months : -10~35°C

Less than 12 months : -20~25°C

less than 3 months: -20~40°C

less than 3 months: -10~45°C

less than 3 months: -20~40°C

Less than 7 day : -20~65°C

Less than 7 day : -20~65°C

Less than 7 day : -20~65°C

Dimensions (mm)

442*385*44.2

422*385*44.2

442*385*88.1

442*385*88.1

442*385*132.5

442*385*220.1

Weight (kg)

8

12

16.5

21.5

25.5

50.5

Volumetric specific energy

106 WH/L

155WH/L

150WH/L

155 WH/L

101 WH/L

101 WH/L

Gravimetric specific energy

86WH/KG

88WH/KG

95WH/KG

113WH/KG

85WH/KG

85WH/KG





Applications

  • B series – standard type
    • Mainly used for telecommunication end product
  • P series – parallel type with monitoring system
    • Could be connected in parallel to extend the capacity of the battery
    • Applicable for Acer stations, fixed network data center, etc.

 Lead-acid Batteries VS. LiFePO4 Batteries



Specifications

     Lead-acid Batteries

LiFePO4 Batteries

Gravimetric Energy Density(Wh/Kg)

20 ~ 45

110 ~ 190

Volumetric Energy Density(Wh/L)

60 ~ 90

170 ~ 310

Temperature Adaptability

0°c ~ 50°c

-20°c ~ 60°c

Cycle Durability

300 ~ 500 cycles

> 2000 cycles

Self-discharge Rate(per month)

< 4%

< 2%

Discharge Rate

1C

10C

Installation

Big and heavy, difficult to install

Small size and light weight, easy to install

Maintenance

Regular maintenance staff required

No need for regular maintenance

Environmental Protection

Containing heavily polluting and toxic substances such as lead, arsenic, mercury, sulfide, etc.

Free of heavy metals, safe and pollution-free, recycling utilization rate is high

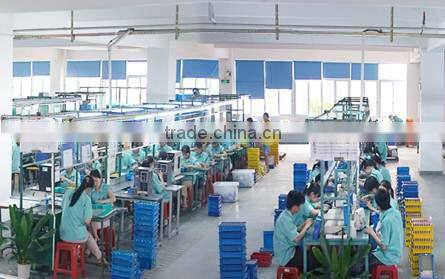

 Manufacture
