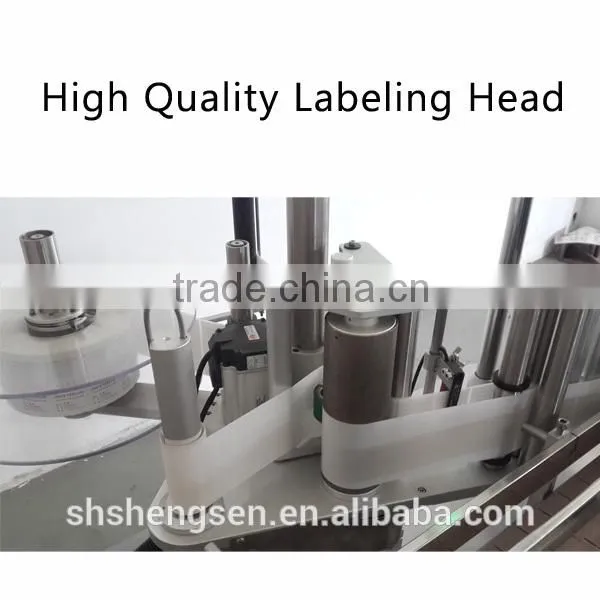

Machine's detailed picture
Detail description
1.The machine is adopted mature PLC control system, running stability, high speed
2.Operating system adopt touch screen control, simple operation, practical, high efficiency.
3.Korea magic eye detection, greatly improving labeling precision.
4.Advanced pneumatic printer system, handwriting clear, speed and stability.
5.Wide application scope, can label various size of circular objects.

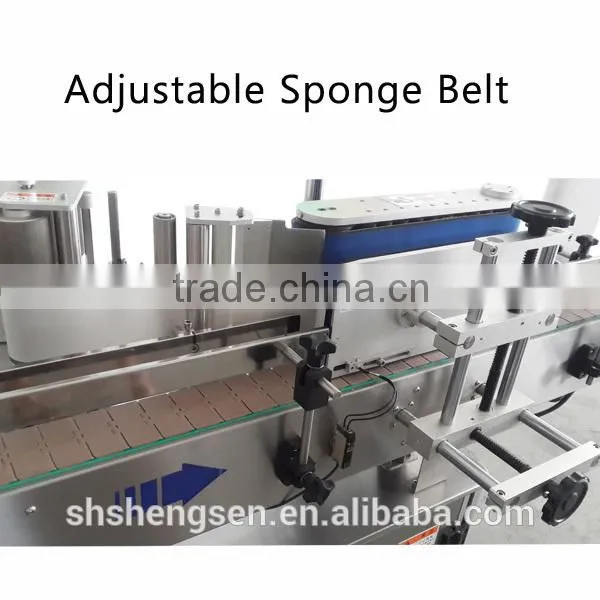

6.Attaching and rolling bottles, make tags attached more firm.
7. Can connect production line before and after, also can be equipped with a receiving turntable, facilitate product of collecting, sorting and packaging.
Technical parameters
Voltage specification |
AC220V 50/60HZ |
Power |
1200W |
Operation direction |
Right -entering,left- entering |
Driving type |
servo motor |
Labeling speed |
20-300bottle/min |
Labeling precision |
±1 mm(Depending on the surface roughnes) |
printed air source |
5kg/cm² |
label scope |
length15-90mm height 15-130mm |
Application containers |
Diameter20-80mm height 30-200mm |
Machine size |
2000(L)×1200(W)×1350(H)mm |
1.Efficience and convenient conmunication with tools online, e-mail ,Viber and telephone.
2.The equipments which we sell all have one year warranty.
3.We have advanced technical professional engineer to provide excellent after-sales service if the buyer need.
4.We assist to install machine freely, and we are in charge of adjustment.
5.We will provide professional CAD Drawing to customer for checking when customer’s is not normal,which need to customize the machine.
6.We will offer Professional Operational Manual and complete Circuit Diagram to customers,all machine’s voltage is customized according to customer’s industrial power.
Shanghai Shengsen packaging equipment Co., Ltd. is a professional mechanical equipment enterprises integration of research and development, production, sales and service ,products with automatic labeling machine, filling machine as the main line, integrated in the related partners become compact filling packaging all line’s professional suppliers. We have much experience for 10 years and verygood reputation in international markets.
1.How is the quality of your labeling machine?
Our machines are all SS304 material and on filling machine,which touched with liquid are all SS316L,so our machines have a very good reputation in internation market,which sold to Autralia,USA,Chile,Germany,Tailand ,Latin America,south Africa etc......
2.what brand are your machine’s configuration?
PLC and Touch screen is Siemens from Germany,economic servo motor is JSCC from Japan,high speed servo motor is Panasonic from Japan,and the sensor is KEYENCE From Janpan,transparent sensor is LEUZE from germany.
3.What is your labeling machine’s accuracy?
If the objects are not irregular,the label error is ±1mm,the container is standard,the error is ±0.5mm.
4.Your labeling machine only label one size of objects or can label different specifications of objects?
It can label different size of containers,our machine have regulating hand wheel with scale,can adjust freely.
5.labeling machine can add printer?
Of course,you can choose hot ribbon printer, inkjet code printer or TTO.
6.This machine can match our packing line or not?
Yes,our professional designers will offer best diagram of your packing line with machine as soon as you only offer your space’s size and the conveyor’s height.
