Specifications
1.Two Side Labeling Machine for Flat / Oval Shape Bottles2.smooth labeling without wrinkles or bubbles
3.servo motor and high

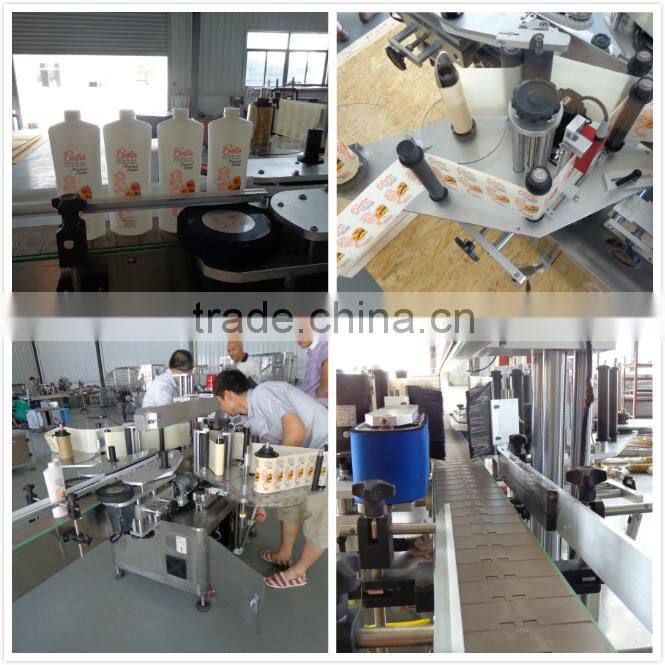

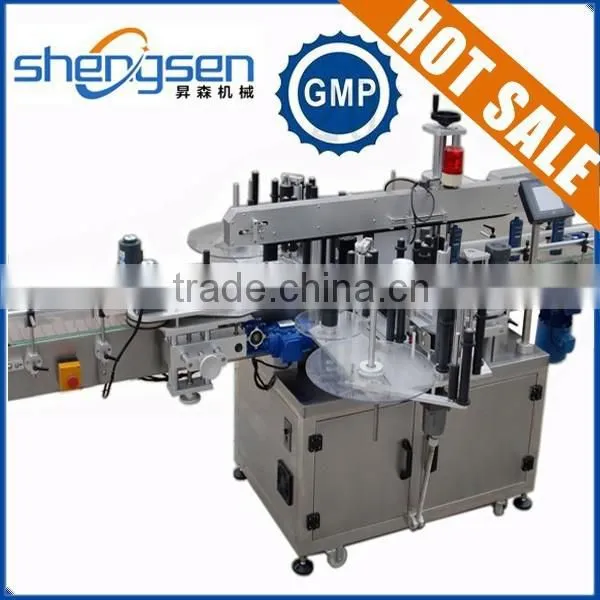

Two Side Labeling Machine for Flat / Oval Shape Bottles
Product Characteristics:
1. adopt mature PLC control system technology, make the whole machine stable and high-speed
2. use touch screen control system, make operation simple, practical and efficient
3. upgraded butterfly labeling station design, can be applied for conical bottle labeling
4. the screw adjust the suppression mechanism, high accuracy
5. synchronization chain mechanism, to ensure smooth and precise calibration
6. transparent sticker labeling without bubble,adhesive sticker labeling without wrinkle
7. widely used and mutil-function with high flexibility
The scope of application:
Multi-function automatic label machine is to label round bottles, square bottles and flat bottles (in food, medical, daily chemical industry and other industries).
Main Parameters:
Name | Parameter |
Voltage | AC110/220V, 50/60HZ |
Power | 2KW |
Labeling Speed | 150-250pcs/min |
Labeling Accuracy | ±1mm |
Printer to use air | 5 kg/cm2 |
Object Size | 30-280 mm(H),30-100 mm(W) |
Label Size | 25-300 mm(L),20-180 mm(W) |
Roll Size | 76 mm(Inside),300 mm(Outside) |
Dimension | 2400(L)×1450(W)×1360(H) mm |
