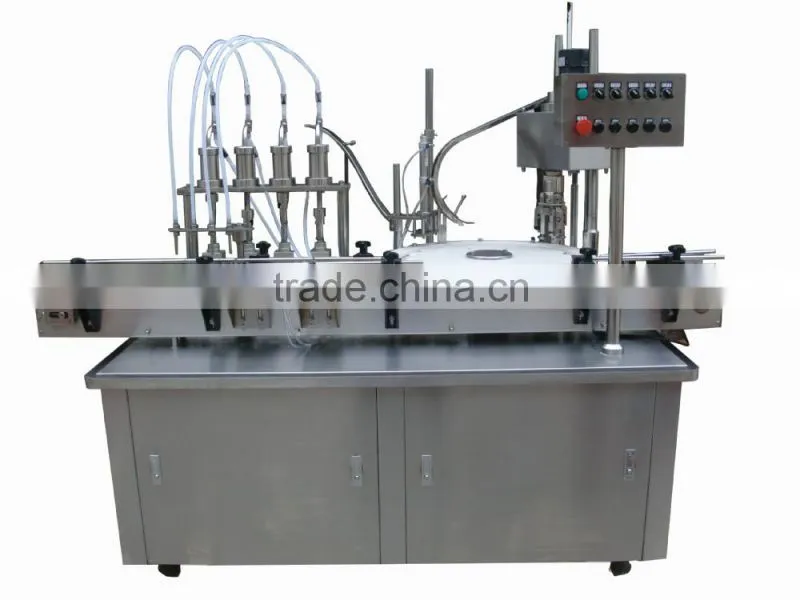

Automatic Bottle Liquid Filling Production Packaging Line

Specifications

widely used in syrup,oral liquid,external application
Apply to 20-500ml bottle
filling method:piston pump
packaging line











Product Characteristics:

1. This line is composed of bottle feeding machine,filling capping/screw capping machine,sealing machine ,etc.

2. This line is applied to 20-500ml bottle feeding,filling,capping/screw capping,sealing.Only changing some mould the machine could be applied for different size bottles.

3. This line is applied for glass or plastic bottle ;It’s widely used in syrup ,oral liquid,external application agent etc

4. The yield capacity of the whole line depends on the bottle size ,shape and liquid viscosity.

5. Protection cover is for optional.



Main Technical  Parameters:

Bottle  Application	20-500ml
Production Capacity	40-60pcs/min   80-120pcs/min
Filling Error	0-2%
Qualified Cap Putting	≥99%
Qualified Capping/Screw Capping	≥99%
Power Supply	380V, 50HZ
Power	9KW
Dimension	6800(L)×1300(W)×1800(H) mm
