Filling Capping And Labeling Machine

FOB Price

US$ 30,000 - 50,000 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Commodity, Medical, Chemical
Packaging Type	Bottles	Packaging Material	Glass, Wood
Automatic Grade	Automatic	Driven Type	Electric
Voltage	380V	Power	12KW
Place of Origin	Shanghai, China	Brand Name	shengsen
Model Number	SS-1825	Dimension(LWH)	10000(L)2000(W)1800(H) mm
Weight	1500KG	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1.filling capping and labeling machine
2.Feeding-ultrasonic washing machine-filler-seal-labeler
3.Material is all SS.

Filling capping and labeling machine

Brief Introduction:

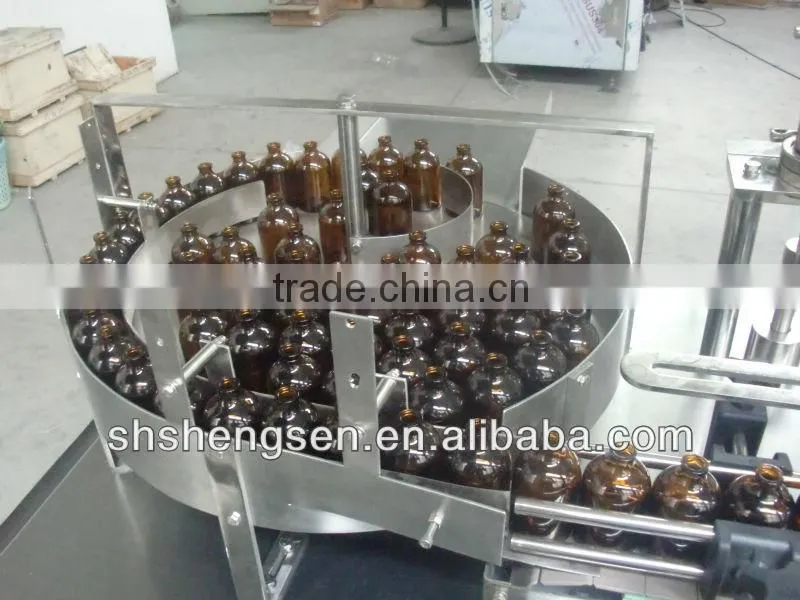

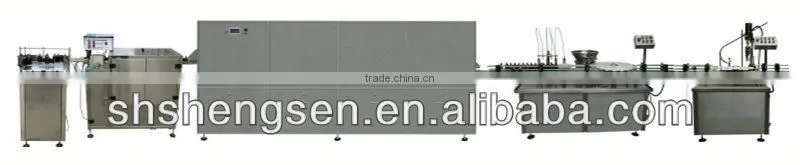

1.This line is composed of bottle feeding machine ,cylinder ultrasonic washing machine ,filling stoppering machine,capping machine and labeling machine etc.

2.This line is applied to 20-500ml bottle feeding,dry and sterilizing ,filling stoppering ,capping and labeling.Only changing some mould the machine could be applied for different size bottles.

3.The line is applied for glass or plastic bottle;it has a wide application and easy adjustment ,widely used in injection and vaccine,etc.

4.The yield capacity of the whole line depends on the bottle size ,shape and liquid viscosity.

5.The tunnel sterilizer ,protection covers and laminar flow are for optional.

MainTechnical Parameters

Application	20-500ml
Yield Capacity	40-60pcs/min 80-120pcs/min
Cleanness	>99%
Filling Tolerance	0-2%
Qualified stoppering rate	≥99%
Qualified cap putting rate	≥99%
Qualified capping/screw capping rate	≥99%
Power Supply	380V ,50HZ
Power	9KW
Dimension	8000(L)×1300(W)×1800(H) mm
