Specifications
compact filling production lineliquid filling machine
widely used in injection,vaccine and oral liquid
30 days delivery time
Product Characteristics:
1. This line is composed of bottle feeding machine,cylinder ultrasonic washing machine ,filling stoppering machine ,capping machine,etc.
2. This line is applied to 20-500 ml bottle feeding ,dry and sterilizing ,filling stoppering ,capping and labeling .only changing some mould the machine could be applied for different size bottles.
3. The line is applied for glass or plastic bottle.It is widely used in injection, vaccine and oral liquid,etc
4. The yield capacity of the whole line depends on the size of the bottle ,shape and liquid viscosity.
5. tunnel sterilizer ,protection covers and laminar flow is for optional.
Main Technical Parameters:
Bottle Application |
20-500ml |
Production Capacity |
40-60pcs/min 80-120pcs/min |
Cleanness |
>99% |
Filling Error |
0-2% |
Qualified Stopering |
≥99% |
Qualified Cap Putting |
≥99% |
Qualified Capping/Screw Capping |
≥99% |
Power Supply |
380V, 50HZ |
Power |
9KW |
Dimension |
8000(L)×1300(W)×1800(H) mm |

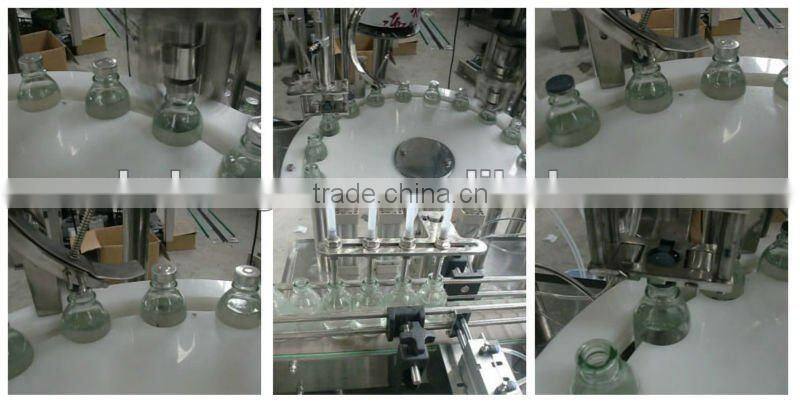

Pls check attached details of the fllling ,capping and sealling machine

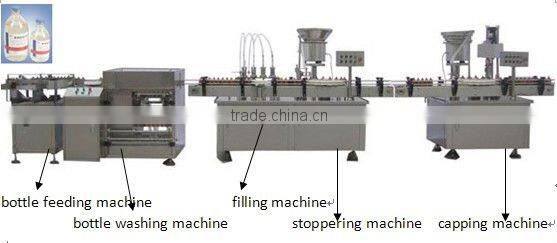

The filling line is composed of bottle feeding machine, ultrasonic bottle washing machine ,filling machine,stoppering machine and capping machine.
