Help CenterLow Price Fully Automatic Lightweight Building Panels
Related Products
-
Factory Direct Sale Precast Concrete Wall Lightweight Concrete PanelsUS$ 8,000 - 21,000MOQ: 1 Set -
2016 New Design Hydraulic Pressure Eps Sandwich Wall PanelUS$ 8,000 - 21,000MOQ: 1 Set
-
Hot New Products Production Line Prefabricated Wall PanelsUS$ 8,000 - 21,000MOQ: 1 Set
-
Product Warranty Light Weight Brick Concrete Wall PanelsUS$ 8,000 - 21,000MOQ: 1 Set
-
Quality Assurance Construction Machinery Insulated Wall PanelsUS$ 8,000 - 21,000MOQ: 1 Set
Specification |
Thickness |
Length(mm) |
Width(mm) |
Weight(kg/m2) |
Error Allowance (kg/m) |
Sound insulation |
Fire resistance |
75 series |
75mm |
2440-3000 |
600-610 |
50± 5 |
Length± 5 |
40dB |
2.5h |
90 series |
90mm |
55± 5 |
42dB |
≥2.5h |
|||
120 series |
120mm |
67± 5 |
44dB |
≥3h |
|||
150 series |
150mm |
85± 5 |
46dB |
≥4h |
|||
Customization available according to the customers' need. | |||||||
2. Raw material proportion for the Wall Panel:
| Items | 50mm/m2 | 75mm/m2 | 90mm/m2 | 120mm/m2 | 150mm/m2 |
| Cement | 11.5kg | 20kg | 24.9kg | 34.9kg | 44.98kg |
| Fly ash | 5.7-6.9kg | 10-12 kg | 12.3-14.9kg | 17.2-20.9kg | 22.1-26.98kg |
| Foam agent | 0.003kg | 0.005kg | 0.006kg | 0.008kg | 0.01kg |
| EPS grain | 0.35-0.4kg | 0.6-0.7kg | 0.75-0.88kg | 1.05-1.23kg | 1.36-1.59kg |
| Two-sided Board | 8 KG (based on fiber cement board) | ||||
| TOTAL | 25.5-26.8kg | 38.6-40.7 kg | 45.9-48.7kg | 61.2-65kg | 76.4-81.5kg |

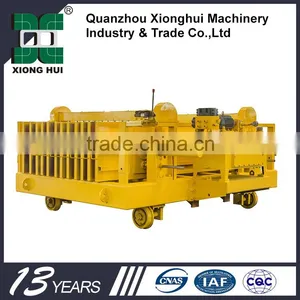

Features of Production Line
1. The source of the production raw materials iswidely with no regional restriction. The product is made of sawdust, straw(rice hulls), many kinds of crop straw and inorganic material(such as talcum powder, infusorial earch and powder, infusorial earth and powder coal ash)after special technology. So this project have low production cost, small investment and fast effectiveness.
2. The equipment has high automatization degree, simple production technology, low labor intensity and production line, and there is no noise and three-wastes(waste water, waste gas and waste residue)during production.
3. Low production energy consumption. With the influence of chemical reaction, it can meet the requirements about production technology without high temperature and high pressure.
4. The machine can produce thickness for 60mm, 90mm, 120mm, 150mm and 180mm, etc., all the length within 3m and width for 500-1000mm wallboard can be produced.
