China supplier high quality machine steel sheet
1. Specifications of machine steel sheet
1)Main Techincal Data:
| Size | YX65-300-400-500 | KLS25-220-530 |
| Dimension | 5800*1600*1400mm | 2000*1300*1400mm |
| Weight | 7000KGS | 1200KGS |
| Motor Power | 7.5KW | 1.5KW |
| Hydraulic Power | 2.2KW | 0.75kw |
| Voltage | 380V/50HZ/3PH | 380V/50HZ/3PH |
| Forming Steps | 13 steps | 6 steps |
| Forming Speed | 8-14m/min | 8-12m/min |

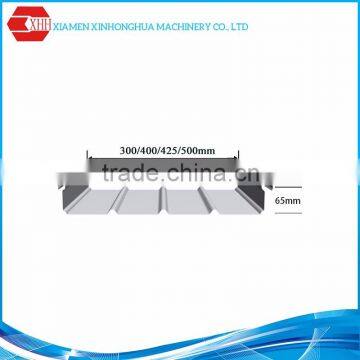

| Effective Width | 300mm,400mm,500mm | 220-530mm |
| Material of Width | 470mm,575mm,680mm | 290mm-600mm |
|
Material of AL-Mg-Mn,Galvanized Sheet Thickness |
0.4-1.0mm | |
| Material Thickness | 0.5-0.8mm | 0.5-0.8mm |
| Standing Height of Roofing | 25mm | |
|
Thickness for common use and testing machine |
0.6mm, 0.7mm (material: PPGI, GI, Aluminum) |
2)Main Accessories:
(1) Main Seamlock Roofing Forming Machine;
(2) Main uncoiler;
(3) Hydraulic System;
(4) PLC Computer Controlling System With Touch Screen;
(5) Hydraulic Forming Cutter;
(6) Tools;
(7) Operation Manual.

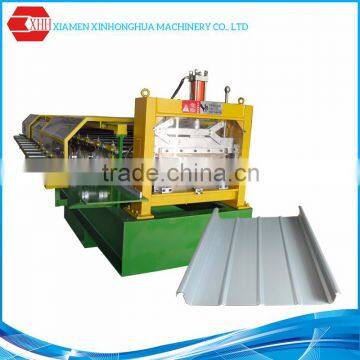

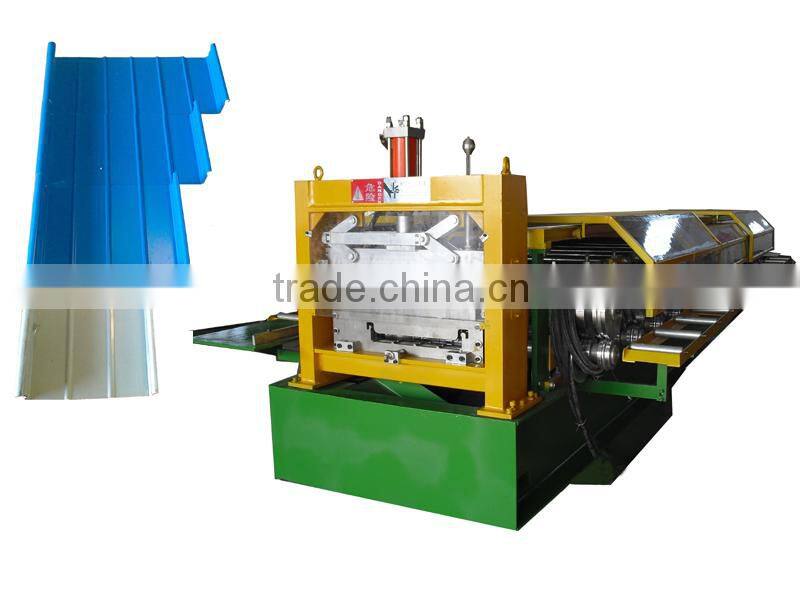

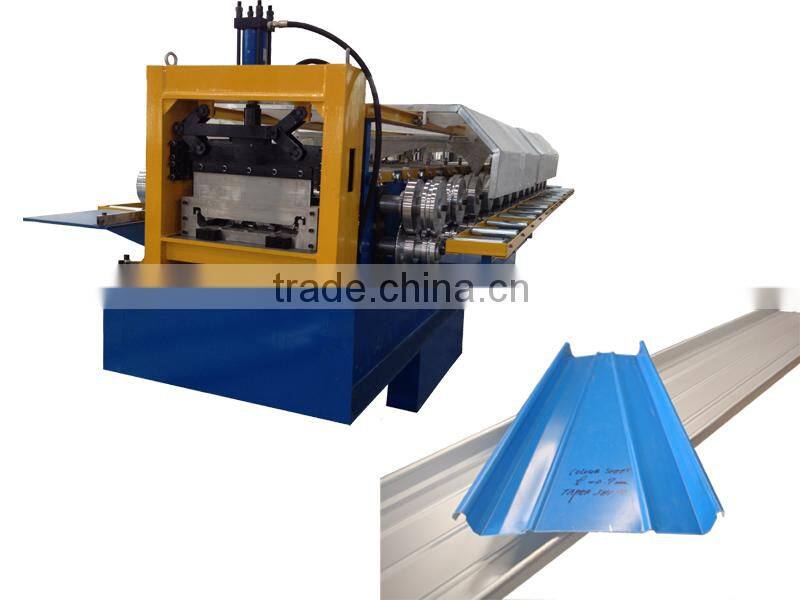

2. Pictures Of machine steel sheet
3. Certifications of Product
4. Applications of Product

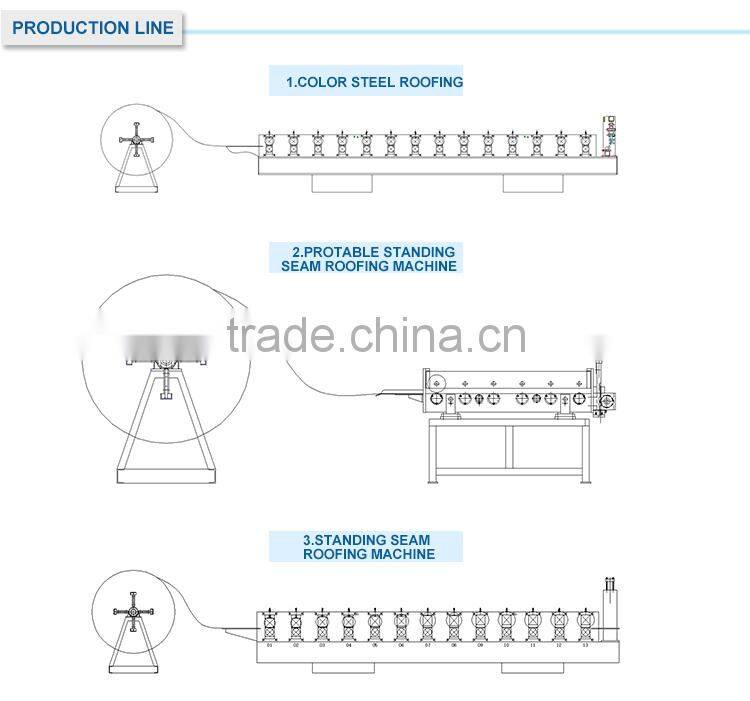

5. Production Line of Product
6. More products for you to choose
color roofing machine Floor decking machine Standing seam roofing machine
7. Sample Rooms of Product
8.Packaging & shipping
1.Our Company View
|
Xiamen XinHongHua Machinery Co., LTD.is specialized in design and manufacture roll forming machines for 15 years. With developing technical and various experience, our main machines are:Al- Mg- Mn Straight & Tapered Standing Seam Roofing Forming Machine, Fully Automatic Curving Machine, Fully Automatic Adjustable C Purline forming machine, Automatic Interchange C, Z Purline Machine, Flattening Slitting Cutting Machines,Colored Steel Roofing Panel Forming Machine,Tile Roofing Machine, Floor Decking Machine and Highway Rail Forming Machines, etc.
|
2. Certifications of Our Company
3. Exhibitions and Customers
