Best quality plate sheet cut to length line
1. Specifications of plate sheet cut to length line
1). Main Accessories:
(1) Main machine;
(2) Automatic Up And Down Table For Feeding Device;
(3) Flattening Device;
(4) Hydraulic Motor System;
(5) PLC Computer Controlling System With Touching
Screen( Brand: Schineder for PLC, touching screen, encorder and frequency changer );
(6) Hydraulic Cutting Device;
(7) Receiving Table( Length:2500mm);
(8) Tools;
(8)Operation Manual in English;
2). Main Technic Data:
| Model Number | ST1.0-1200 | FCS2.0-1300 |
| Picture | |
|
| Size | 2500*1600*1500mm | 2200*2300*1500mm |
| Weight | 2500KGS | 3500KGS |
| Hydraulic Motor Power | 4KW | 7.5KW |
| Processing Speed | 8-10m/min | 10-15m/min |
| Voltage | 380V/50HZ/3PH | 380V/50HZ/3PH |
| Material Thickness for Aluminum | 0.4-1.0mm | 0.25-2.0mm |
| Material Thickness for Steel | 0.4-0.8mm | |
| Material Width | 400-1200mm | 1300mm |
| litting Tapered Ratio | 1:50 | |
| Usage |

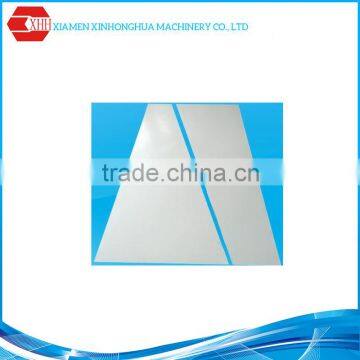

Slitting and cutting the metal sheets with straight and tapered shape |
|
3). Usage:
--fattening and cutting the metal materials: Carbon steel Hot rolled coils;
--The buyer need provide enough metal materials for testing machine.
4). Feature:
--Adopts flattening device, cutting device, PLC computer controlling system and hydraulic motor,
easily and conveniently to operate;
--Suitable to flatten and cut the colored prepainted sheets, alvanized steels, Aluminum sheets, etc

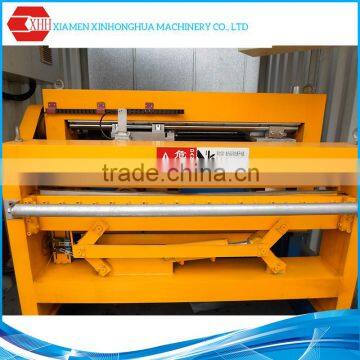

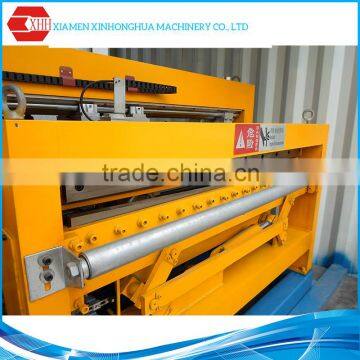

2. Pictures Of plate sheet cut to length line
3. Certifications of Product
4. Applications of Product
5. More products for you to choose
Roofing machine Bending machine C U Z Purlin machine
Steel coil Straightening slitting cutting machine
6. Sample Rooms of Product
7.Packaging & shipping
1.Our Company View
|
Xiamen XinHongHua Machinery Co., LTD.is specialized in design and manufacture roll forming machines for 15 years. With developing technical and various experience, our main machines are:Al- Mg- Mn Straight & Tapered Standing Seam Roofing Forming Machine, Fully Automatic Curving Machine, Fully Automatic Adjustable C Purline forming machine, Automatic Interchange C, Z Purline Machine, Flattening Slitting Cutting Machines,Colored Steel Roofing Panel Forming Machine,Tile Roofing Machine, Floor Decking Machine and Highway Rail Forming Machines, etc.
|
