Stud and truss profile forming machine light gauge steel framing machine
1. Specifications of light gauge steel framing machine
1)Main Techincal Data:
Size |
3700*800*1100mm |
Weight |
2800KGS |
Main Servo Motor Power |
5.5KW |
Hydraulic Motor Power |
5.5KW |
Forming Steps |
10+2steps for reshaping |
Processing Speed |
25-30m/min |
Voltage |
380V/50HZ/3PH |
Lip of C Profile |
10mm |
Tolerence Of Forming |
0.75mm |
Forming Thickness |
0.7-1.2mm |
Height |
38mm |
Width |
89mm |
2)Main Accessories:
(1) .Main Forming Machine;
(2) .Hydraulic Strip Uncoiler;

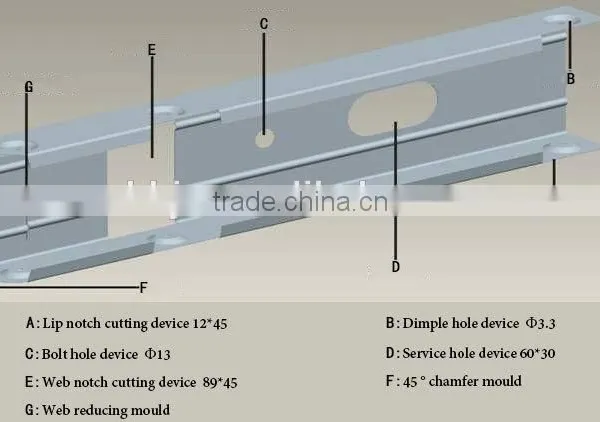

(3) .Hydraulic Punching Device;
(4) .Hydraulic Motor System;
(5) .PLC Computer Controlling System With Touch Screen;
(6) .Hydraulic Forming Cutter;
(7) .Automatic Printing Device;
(8) .Design Software;
(9) .Run Out Table;
(10) .Tools;
(11) .Operation Manual.
2. Pictures of light gauge steel framing machine
3. Certifications of Product
4. Applications of Product
5. Production Line of Product
6. More products for you to choose
Roofing machine Bending machine C U Z Purlin machine
Steel coil Straightening slitting cutting machine
7. Sample Rooms of Product
1.Our Company View
|
Xiamen XinHongHua Machinery Co.,LTD.founded in 2004, specialized in the production of roll forming machines, is a collection of product research and development design, manufacture, installation, debugging, training and other comprehensive ability.Our main machines are:Al- Mg- Mn Straight & Tapered Standing Seam Roofing Forming Machine, Fully Automatic Curving Machine, Fully Automatic Adjustable C Purline forming machine, Automatic Interchange C, Z Purline Machine, Flattening Slitting Cutting Machines,Colored Steel Roofing Panel Forming Machine,Tile Roofing Machine,Floor Decking Machine and Highway Rail Forming Machines, etc.
|
2.Our advantage
a.We as a manufacturer are Specialized in all kinds of cold roll forming machine since 2004.So for the design and produce there are much experience and professional people.
b.Customers’design, color and logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
c.Schneider PLC system:Ensuring high accuracy and easy to operate!Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
d.Our machines exported to the Southeast Asia, Middle East, Africa, North & South America more than twenty countries and regions.We have professional team, complete production system, high quality products, good service.
e.Within the ONE-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
3. Certifications of Our Company
4. Exhibitions and Customers
Thank you for your attention!
