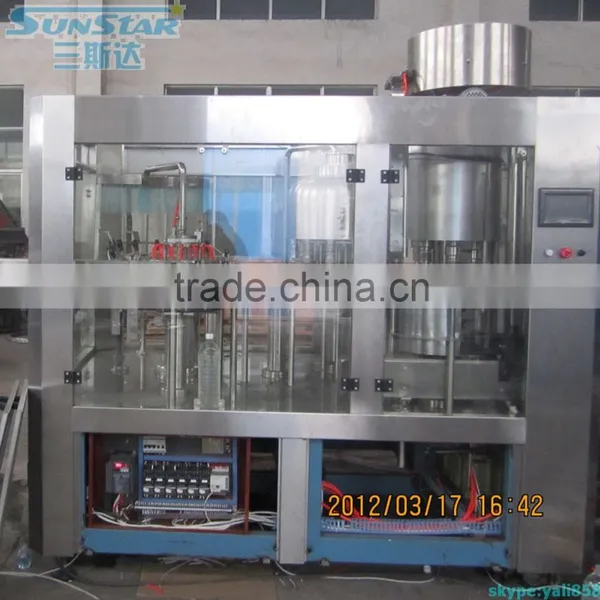

Bottled Water Filling Machine CGF14-12-5
Product introduction:
Bottled Water Filling Machine CGF14-12-5---The machine was used for all kind of water such as vitamin water, nutritive water, pure water, mineral water, drink water, mountain spring water etc. There are three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling mineral water and purified water in bottles made of polyester and plastics. The Machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently Turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling Operation of the new type is adopted. There the output and benefit of the machine is higher than the machines of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to Adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably. It is Convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling Parts of the machine can be changed into filling methods of lower vacuum. The filling category of lower vacuum (Z type machine) is applicable in glass Bottles, filling alcohol, soy and such like materials. The aluminum tamperproof cap and plastic cap can be adopted.
Advantages:
1.This machine has a compact structure, perfect control system, easy to operate and highly automatic degree. 2.The parts contact with product is made of quality SUS304 or SUS316, anti-corrosive, and easy to clean.
3.By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
4.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
5.This machine has a high efficient cap arranging system, perfect cap feeding and protection device.
6.Equipped with perfect clean management system to ensure the bottle clean.
7.Only by changing the star-wheel, can realize to fill the changed bottle shape.
8.The machine adopts perfect overload protective device can ensure the operator and machine safe.
9.This machine adopts adjustable frequency converter.
10.The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
11.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
12.The electric components and pneumatic components are all introduced from world famous brand products.
Technical parameter:
Model: CGF 14-12-5
Production capacity: 2000-3000B/H (basis on 500ml bottle)
Filling precision: ±3 (liquid level)
Rinsing pressure: 0.3Mpa
Polyester bottle specification: bottle diameter:φ40-φ120mm
bottle height: 130-340mm
Suitable cap type: plastic screw cap
For more information, pleas contact with us.
Product details pictures:

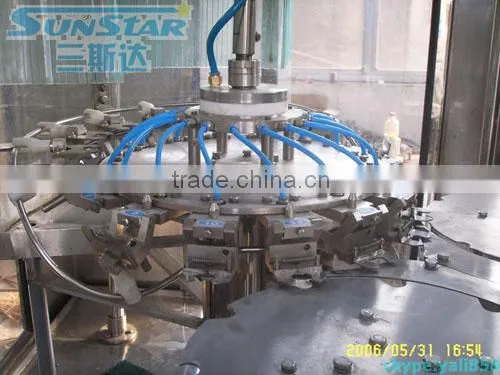

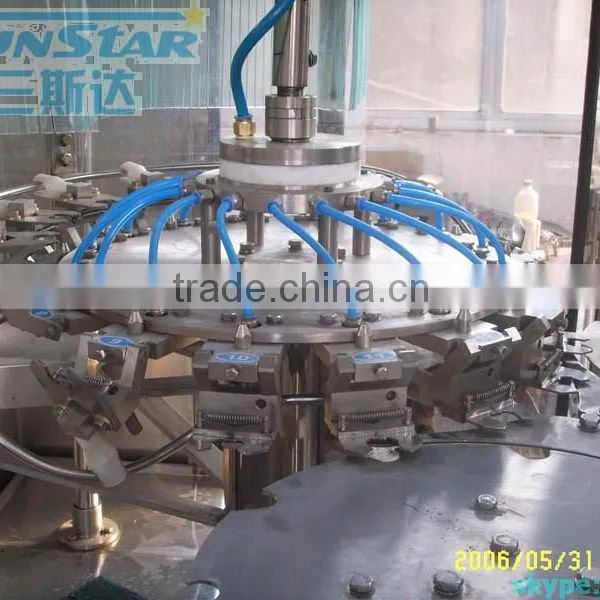

plastic bottle washing machine

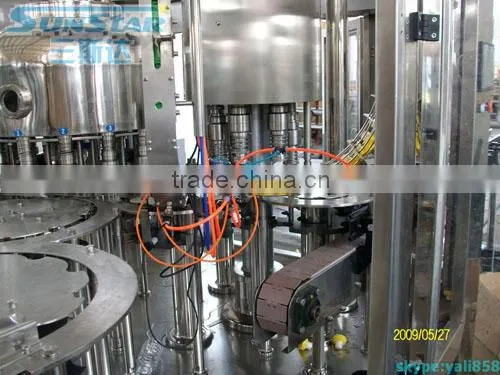

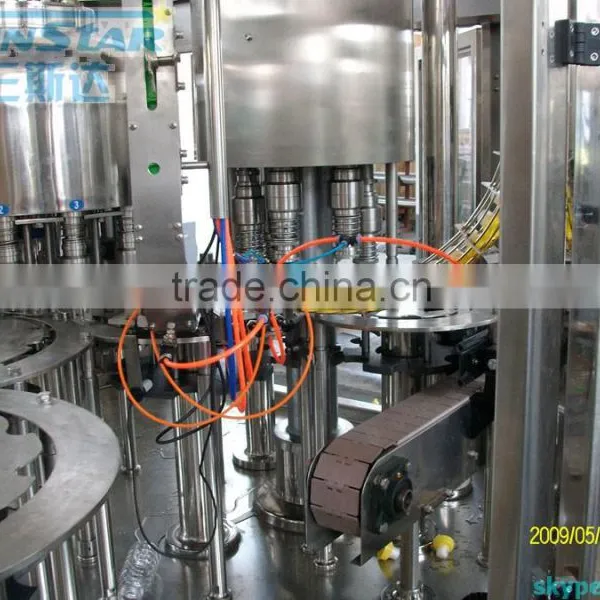

Mineral/pure water filling machine and capping machine

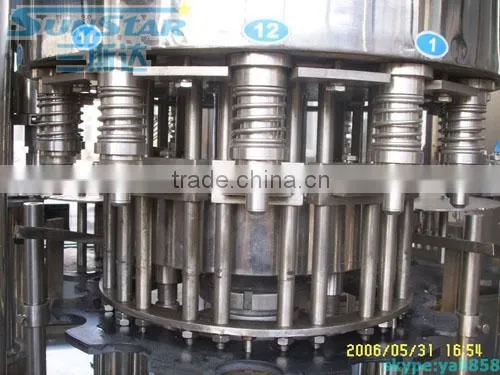

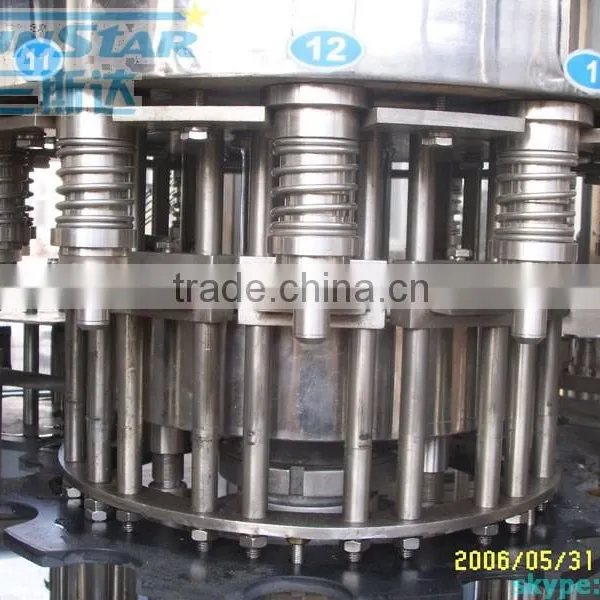

Water filling machine ( Normal pressure filling for non-carbonated liquid)
Product name:
Water filling machine, water bottling machine, bottled water machine, washing and capping machine, water filler, water bottler, mineral water filler, pure water bottler
....
