3in1 Monoblock Automatic Bottle Filling Machine/Liquid Filling Machine
Product introduction of liquid filling machine:
The liquid filling machine was used for all kind of water such as vitamin water, nutritive water, pure water, mineral waters, drink water, mountain spring water etc. There are three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
The liquid filling machine is used in filling all kind of non-carbonated water in bottles made of polyester and plastics. The liquid filling machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
The filling operation of the bottle filling machine is faster and more stable because the micro pressure filling Operation is adopted. So the output and benefit of the bottle filling machine is higher than the machines of the same specifications. The advanced Mitisubishi programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to Adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.
The features of bottle filling machine:
1.The bottle filling machine has a compact structure, perfect control system, easy to operate and highly automatic degree.
2.By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
3.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
4.This mineral waters bottle capping machine has a high efficient cap arranging system, perfect cap feeding and protection device.
5.Equipped with perfect clean management system to ensure the bottle clean.
6.Only by changing the star-wheel, can realize to fill the changed bottle shape.
7.The machine adopts perfect overload protective device can ensure the operator and machine safe.
8.This machine adopts adjustable frequency converter.
9.The electric components and pneumatic components are all introduced from world famous brand products.
Technical parameter of liquid filling machine:
| Model | CGF14-12-5 | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-12 | CG60-60-15 |
| Capacity(bph) | 2000-3000 | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 |
| Filling precision | ±3 (liquid level) | |||||||
| Rinsing pressure | 0.3Mpa | |||||||
| Suitable bottle dimater | φ40-φ120mm | |||||||
| Suitable bottle height | 130-340mm | |||||||
| Suitable cap type | plastic screw cap, sport cap, aluminium cap etc | |||||||
| Motor power | 2.2kw | 2.2kw | 2.75kw | 3kw | 5.5kw | 7.5kw | 11kw | 15kw |
| Weight | 2300kg | 2500kg | 3500kg | 4500kg | 5500kg | 7500kg | 9800kg | 12800kg |
3in1 Monoblock Automatic Bottle Filling Machine/Liquid Filling Machine
Detail pictures of bottle filling machine:
plastic bottle washing machine
Liquid filling machine
Filling machine ( Normal pressure filling for non-carbonated liquid)
Capping Machine
Washing filling capping 3in1 machine

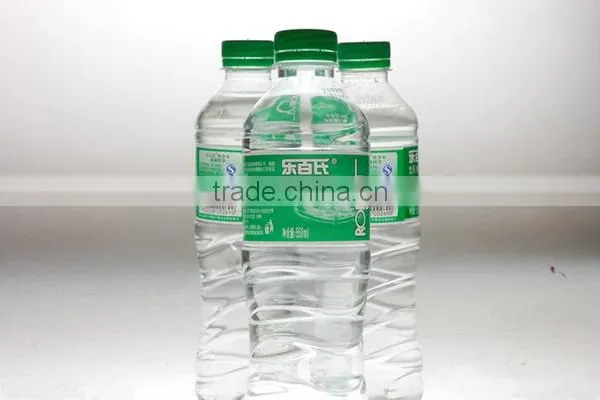

Filled bottle water
The electrical component of liquid filling machine:
3in1 Monoblock Automatic Bottle Filling Machine/Liquid Filling Machine
Mineral/pure water production line:
Pure water/mineral water treatment system--- filling 3in1 ---labeling--- code printer---film packing or carton----end product
We can provide whole mineral water/pure water production line
This is our main processing equipment for bottled/canned water/CSD/juice/beer/oil etc liquid filling and packing machine production line
Company name: Zhangjiagang Sunstar Machinery Co., Ltd.
Add: Leyu industrial zone, Zhangjiagang City, Jiangsu Province, China.
Contact Person: Ms.Alice
Tel:+86-512-58660693
Mobile:+86-13962211535
Skype:yali858
....
