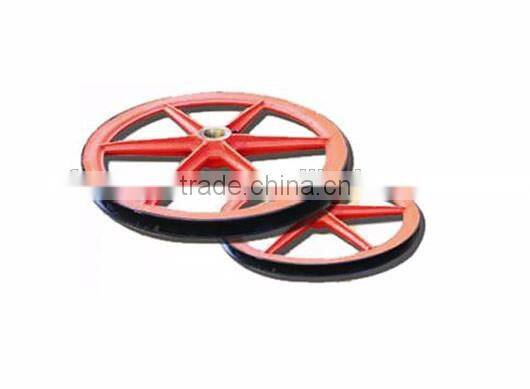

Mining head sheave
Head sheave is mounted on the derrick, for supporting the dragging between hoist roller and hoist containers, guide wire rope steering. Rope groove with plastic lining or rubber block, increasing the service life of wire rope.
Working Principles
1) The wheel of vertical shaft head sheave and sinking sheave is only for rotary motion.
2) Vertical shaft head sheave is mainly used for lifting of vertical shaft and inclined shaft.
3) Sinking sheave is used when cutting disc and stable suspension hanging rope.
4) The wheel of swimming sheave is not only for rotation motion but also for shaft moving, mainly used for lifting of string car.
Technical Parameters
Model |
Rope groove bottom circle |
Dia (mm) |
Rope groove |
Radius (mm) |
Rope dia(mm) |
Bearing distance(mm) |
TLG 1600/9.5-11 |
1600 |
9.5 |
10 |
11 |
15-20 |
140 |
TLG 2000/12-13.5 |
2000 |
12 |
12.5 |
13.5 |
20-24.5 |
180 |
TLG 2500/15-17 |
2500 |
15 |
16 |
17 |
24.5-31 |
200 |
TLG 3000/18-20 |
3000 |
18 |
19 |
20 |
31-37 |
240 |
Products Display
Why you choose us?
1.Various granite of high quality
2.Competitive price
3.Fast delivery all over the whole word
4.Sturdy packing & loading
5.Professional team & excellent serivce.
6.Any customized size and packing requirement is welcome
Our professiional QC team will check every product piece by piece to avoid any quality problem.
Our cooperated efficient forwarder partners assist our timely shipping.
Excellent pre-sale service & after-sales service.
Focus Technology & Machinery Co., Ltd. was established in 2005, which is specialized
in various kinds of industrial machinery and material products. We are devoted to
supply excellent goods with a competitive price. We already have customers worldwide
such as Southeast Asia, Europe, Unite States ,Africa ,etc. FTMC is looking forward to
a long- term and smooth cooperation with our clients.
Our main products include Industrial Steel, Construction Machine, Mining Equipment,
Lifting Equipment, Industrial Equipment and Construction Material, etc.
We can provide customized products. Our design team is professional and novel.
It is warmly welcome to come to visit our company.
If you have any question, please feel free to contact us.
Your inquiry will be replied within 24 hours.
