Automatic Hand Washing Bottle Capping Machine
Automatic Hand Washing Bottle Capping machine
Product introduction:
The automatic hand washing bottle capping machine was used for sealing trigger type cap into bottle.
The rotary trigger cap capper/sealing machine is automatic and was controlled by PLC. It is suitable for detergent, shampoo, shower gel, hand washing liquid and so on.
Features of automatic hand washing bottle capping machine:
1. Four claws structure, obtained many patent on technology, suitable for pump caps, duck mouth caps, trigger caps with straw.
2. PLC controlled ,integrated cap sending ,grasping ,capping ( can affiliate with automatic cap sorting machine)
3. Automatic inlet cap and bottle position-setting and orientation, adjustable torque control.
4. Gentle manipulation, no scratch and injury to caps and containers
5. Easy changeovers, one line capable of several products
6. Connected with filling machine and labeling machine easily
7. Module structure, manipulate on the touch screen, easy maintenances
8. Suitable for containers made of PET/PP/PE/HDPE and so on
9. Production capacity can achieve 4000-8000b/h, higher speed can be customized.
10. Applicable in cleaning agent, nebula , disinfectant and many other daily chemical products.
Technical parameter:
Model: PXG-8
Number of capping heads: 8(can be customized)
Capacity:≤5000containers/hour

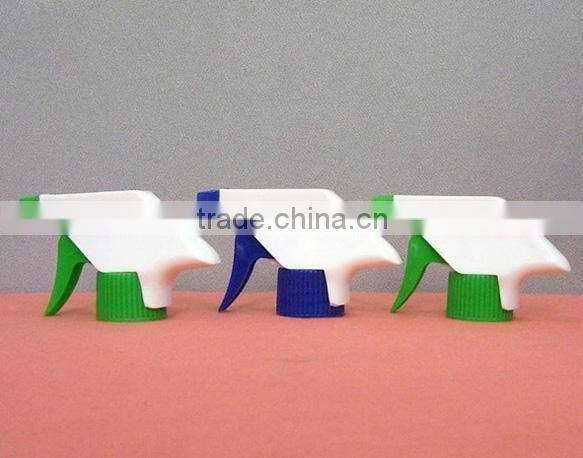

Suitable trigger/pump caps(can be customized)
Diameter of pump/trigger cap: 30mm
Length of pump/trigger cap: ≤250mm
Torque control: ±0.3Nm
Qualified rate of capping: ≥98%(Container mouth center deviation less than 1mm, Container mouth face height deviation less than 1mm)
Air operated source: 0.6Mpa clean and stable compressed air
Detail pictures of automatic rotary trigger cap capping machine:

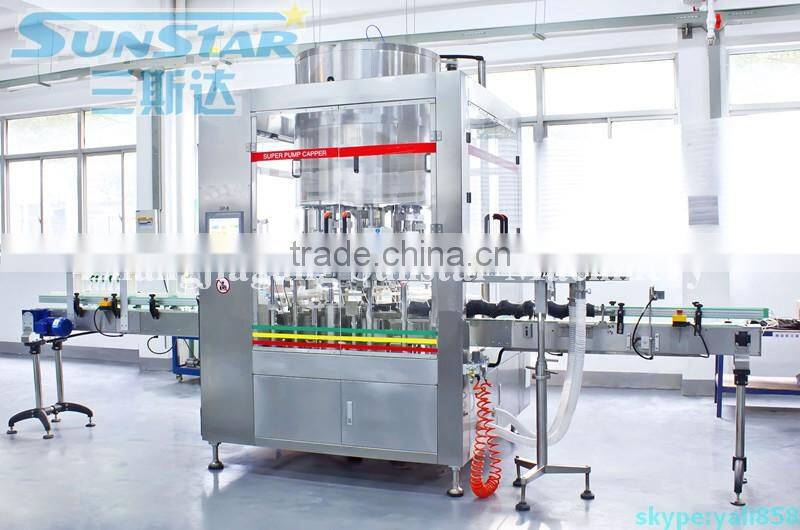

Automatic rotary trigger cap capping machine

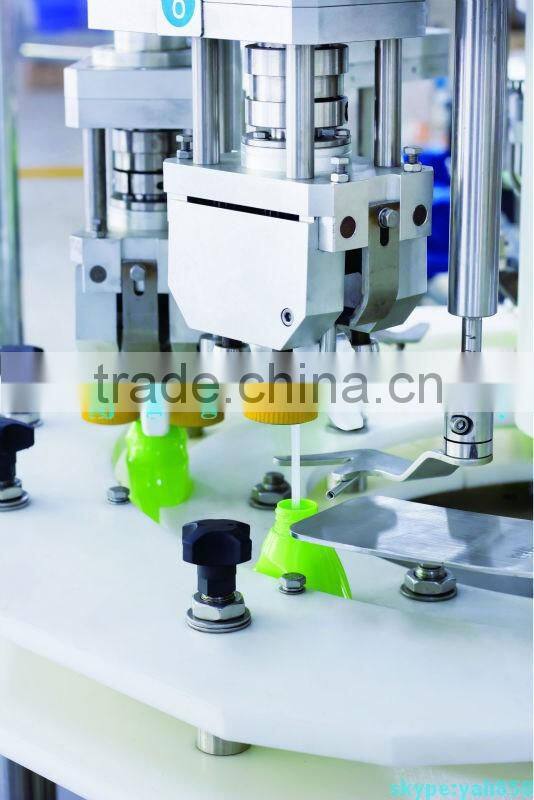

Automatic trigger cap capping machine

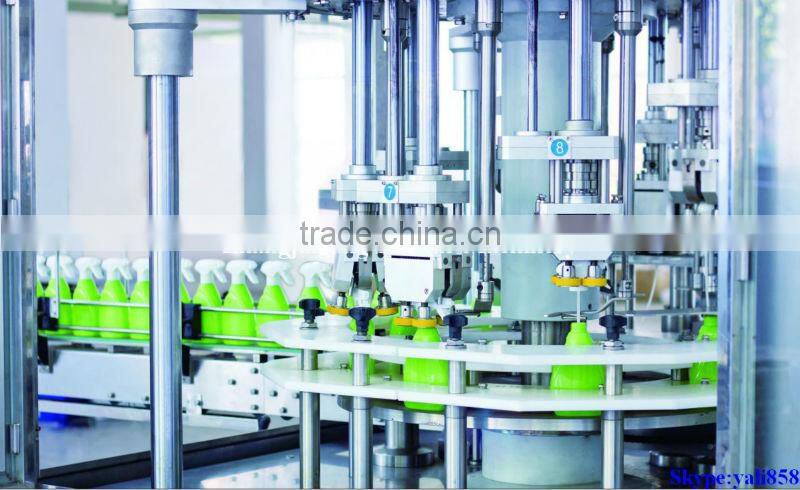

Automatic trigger cap capping machine

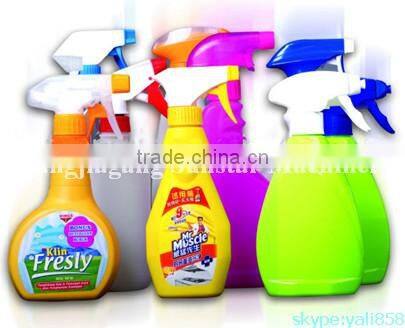

Capped trigger cap bottle
Product name:
Automatic rotary trigger cap capping machine, rotary trigger cap capping machine, trigger cap capping machine, trigger capping machine
This is our main processing equipment for bottled/canned water/CSD/juice/beer/oil etc liquid filling and packing machine production line
...
