HP1000 12V DC Electric Mini Hoist Crane

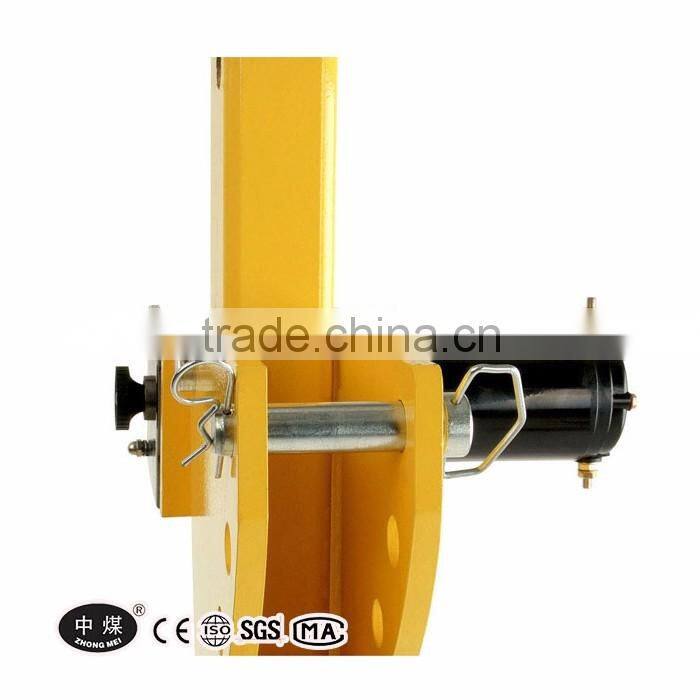

HP1000 12V DC Electric Mini Hoist Crane photo-1

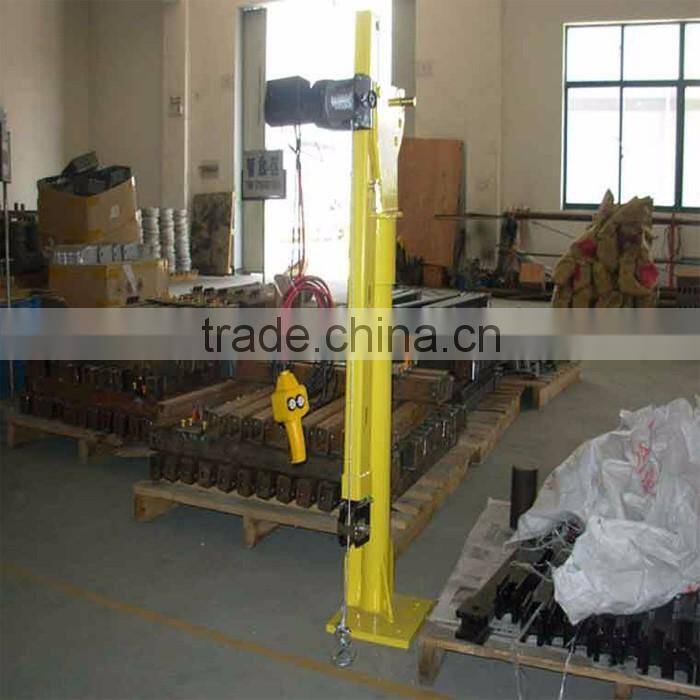

HP1000 12V DC Electric Mini Hoist Crane photo-2
US$ 300 - 360 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
car,truck,platform,vehicle
Max. Lifting Load:
800KG
Payment & Shipping
Payment Methods:
Port of Shipment:
Any China Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application car,truck,platform,vehicle
Max. Lifting Load 800KG
Max. Lifting Height 4.5m
Place of Origin Chongqing, China
Brand Name Foctecmac
Model Number hoist crane, HP1000
Certification CE SGS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

HP1000 12V DC Electric Mini Hoist Crane





HP1000 12V DC Electric Mini Hoist Crane





Product Description



China coal special produce vehicle-mounted electric crane ,with DC12V Vehicle power as power .Specially suitable in outdoor on power place , it is widely used ,mainly used for light-weight wagon ,Vans, loading dock ,platform .Outstanding feature ,compact structure , single size , lightest weight take up minimal room , HP1000 matched with 3000lbs winch ,is the best ideal option for lifting little object. 500kgs Electric Truck Hoist Winch / Electric Hoist/ electric winch/ DC12V hoist Electric truck hoist winch description Electric Truck Hoist Winch is an economical alternative to costly truck mounted hydraulic cranes. It is suitable for mounting on utilities, light trucks, trailers or pontoons, etc. 1000lbs electric TRUCK hoist is one of our professional products, with 12 volt DC as the power. It is widely used in pick -up trucks, caravan cars, loading docks, platforms etc. With outstanding features such as structurally compact, small sized, light weighted, and minimal space required, ZM1000 is a good helper for lifting goods equal to or less than 660lbs in weight.



It is widely used in pick -up trucks, caravan cars, loading docks, platforms etc. With outstanding features such as structurally compact, small sized, light weighted, and minimal space required, HP1000 is a good helper for lifting goods equal to or less than 660lbs in weight.



Main Parameters



Model

HP1000

Max Single line lifting capacity

500kg

Max Double line lifting capacity

800kg

Lifting Height max. Std.

1940mm (base to hook )

Reach Max

1490mm (from center to rotation )

Rotation (continuous) with Brake

360 Manual

Lifting Cable

4.8mmx4.5m -1pc (for single line lifting )

Lifting Cable

4.8mmx5.5m -1pc (for double line lifting )

Line speed with No load

3.6m/min single line

Power requirements

12V DC 125 amps

Switch Cable

4.2m

Mounting Base

250*250*18mm

Mounting Bolt Hole Pattern

170*170mm

Finish

Powder Coated

Net Weight

58.5kg





Products Display



HP1000 12V DC Electric Mini Hoist CraneHP1000 12V DC Electric Mini Hoist Crane



HP1000 12V DC Electric Mini Hoist Crane



HP1000 12V DC Electric Mini Hoist Crane



HP1000 12V DC Electric Mini Hoist Crane
