Specifications:
5 gallon bottled drinking water plant
1.Capacity: 60-1200bph
2. Washing filling capping 3in1 unit
3. It was used for 5 or 3 gallon bottle
5 gallon bottled drinking water plant
Product introduction:
5 gallon bottled drinking water plant was used for decapping, checking leak, inner brushing, outside brushing, washing, filling, capping, sleeve label, shrink label and sleeve pag for used 5 gallon or 3 gallon barrel. The production line can be used for new 5 gallon or 3 gallon bottle. The whole process is automatic.
5 gallon bottled drinking water plant production line was included 5 gallon cap decapper, leak checker, inner brusher, outside brusher, washing-filling-capping monoblock, steam shrink machine for sleeve barrel neck, barrel lift machine for sleeve PE bag. All the machine is automatic. The capacity is 300bph-1200bph.
If your barrel is new bottle, so you do not need decapper, inner brusher, outside brusher, leak checker. You only need water-filling-capping machine monoblock, steam shrink machine for sleeve barrel neck, barrel lift machine for sleeve PE bag.
Advantage of 5 gallon bottled drinking water plant:
1. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer, washing solution can be used circularly.
2. This line equips with water spraying device to sterilize capes of bottles in order to ensure those caps are aseptic and healthy, also this line can automatically carry out barrel feeding, washing, sterilizing, filling, capping, counting and products discharging.
3. It is a new kind of barreled water auto-producting line, which integrates mechanism, electricity and pneumatics technologies together.
Features of 5 gallon bottled drinking water plant:
1. Installed manual regulating valve on external washing part
2. Installed pressure gage, sampling pipe for lye and antiseptic liquid on the washing pipe. To make sure the concentration of lye and antiseptic liquid.
3. There is liquid level display and float ball on every water tank, to protect water pump.
4. Back-flow inlet and add liquid tank is at the outside of washing machine and installed double filter. It can contain water-in tank to wash.
5. Automatic bottle feed count, less than 8 pcs bottle, not feed. If out of bottle is not good, it will alarm.
Technical parameter of drinking water plant:
Model |
QGF-120 |
QGF-240 |
QGF-450 |
QGF-600 |
QGF-900 |
QGF-1200 |
||||||
Filling Heads |
1 |
2 |
3 |
4 |
6 |
8 |
||||||
Volume(L) |
18.9 |
|||||||||||
Barrel Size(mm) |
φ270×490 |
|||||||||||
Capacity(B/H) |
120-150 |
240-300 |
400-450 |
500-600 |
800-900 |
1000-1200 |
||||||
Gas Pressure(Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.6 |
0.6 |
0.6 |
||||||
Moto Power(Kw) |
1.38 |
1.75 |
3.8 |
7.5 |
9 |
13.5 |
||||||
Weight(Kg) |
680 |
1200 |
1600 |
2000 |
3500 |
4500 |
||||||
Rated Voltage(V) |
According to customer’s need |
|||||||||||
Detail pictures of 5 gallon bottled drinking water plant:
Automatic 5 gallon bottle feeding plant

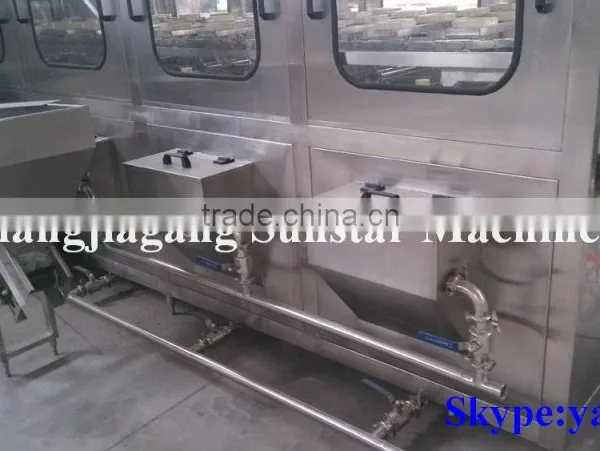

5 gallon bottle washing machine

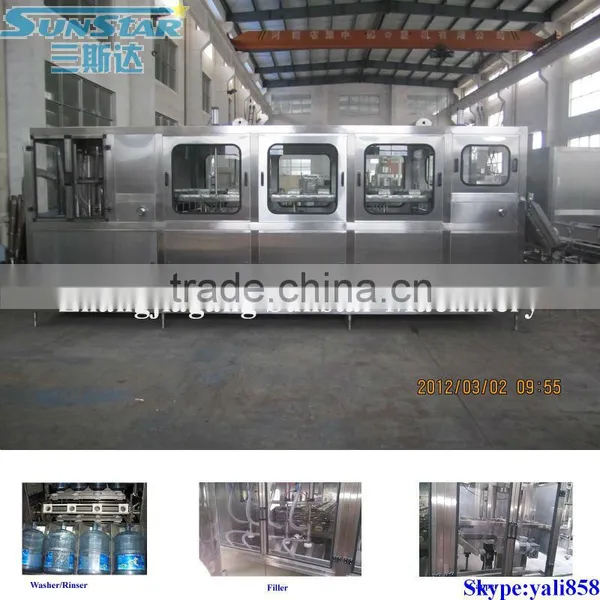

5 gallon drinking water plant
5 gallon bottle capping machine
Bottled 5 gallon water (end product)
Comonent part of drinking water plant:
Mineral/pure water production line:
Pure water/mineral water treatment system--- filling 3in1 ---labeling--- code printer---film packing or carton----end product
We can provide whole mineral water/pure water production line
This is our main processing equipment for bottled/canned water/CSD/juice/beer/oil etc liquid filling and packing machine production line
...
