Bottle Water Filling Production Line
Product introduction:
Bottle water filling production line---The bottle water filling production line including 5 gallon bottle decapping, checking leak, 5 gallon bottle inner brushing, 5 gallon bottle outside brushing, 5 gallon washing- filling-capping machine, shrink 5 gallon bottle mouth label and sleeve bag for used 5 gallon or 3 gallon barrel. The 5 gallon barrel water filling production line can be used for new 5 gallon or 3 gallon bottle. The whole process is automatic. The barrel water production line was included 5 gallon cap decapper, leak checker, inner brusher, outside brusher, washing-filling-capping monoblock, steam shrink machine for sleeve barrel neck, barrel lift machine for sleeve PE bag. All the machine is automatic. The capacity is 300bph-1200bph. If your barrel is new bottle, so you do not need decapper, inner brusher, outside brusher, leak checker. You only need water-filling-capping machine monoblock, steam shrink machine for sleeve barrel neck, barrel lift machine for sleeve PE bag.
Features of bottle water filling production line:
1. Installed manual regulating valve on external washing part
2. Installed pressure gage, sampling pipe for lye and antiseptic liquid on the washing pipe. To make sure the concentration of lye and antiseptic liquid.
3. There is liquid level display and float ball on every water tank, to protect water pump.
4. Back-flow inlet and add liquid tank is at the outside of washing machine and installed double filter. It can contain water-in tank to wash.
5. Automatic bottle feed count, less than 8 pcs bottle, not feed. If out of bottle is not good, it will alarm.
Technical parameter:
Model |
QGF-120 |
QGF-240 |
QGF-450 |
QGF-600 |
QGF-900 |
QGF-1200 |
||||||
Filling Heads |
1 |
2 |
3 |
4 |
6 |
8 |
||||||
Volume(L) |
18.9 |
|||||||||||
Barrel Size(mm) |
φ270×490 |
|||||||||||
Capacity(B/H) |
120-150 |
240-300 |
400-450 |
500-600 |
800-900 |
1000-1200 |
||||||
Gas Pressure(Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.6 |
0.6 |
0.6 |
||||||
Moto Power(Kw) |
1.38 |
1.75 |
3.8 |
7.5 |
9 |
13.5 |
||||||
Weight(Kg) |
680 |
1200 |
1600 |
2000 |
3500 |
4500 |
||||||
Rated Voltage(V) |
According to customer’s need |
|||||||||||
Product details pictures:

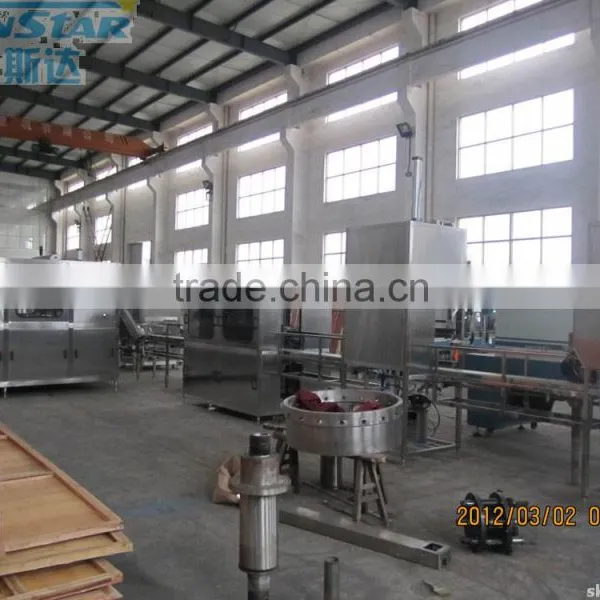

5 gallon bottle water filling production line (including automatic decapper, 5 gallon barrel outside brushing machine, 5 gallon barrle inside brushing machine, 5 gallon washing filling capping machine monoblock and so on)
Automatic 5 gallon bottle feeding machine
5 gallon bottle washing machine
5 gallon bottle water filling machine
5 gallon bottle capping machine
Bottled 5 gallon water (end product)
Product name:
Bottle water filling production line, water filling production line, bottle water filling line, water filling line, 5 gallon filling production line, 5 gallon water filling line, 5 gallon water filling production line
Comonent part of bottle water filling production line:
....
